11.1 Introduction to COS

HST observations with COS are specified using the Astronomer's Proposal Tool (APT), and this article provides instructions for completing those observations.

Expand/Collapse all...


On This Page

Format definitions

Boldface type indicates the name of an APT parameter or a value for a parameter.

(red star) Black text indicates an important note.

Magenta text indicates available but unsupported parameters (requires prior approval from STScI).

Red text indicates restricted parameters (for STScI use only).

Brown text indicates text file parameters.

Items in brackets - <value> - are required values.

Items in square brackets - [<value>] - are optional.

Introduction


The Instrument Configurations and Operating Modes described in this chapter are used to specify exposures on the Visit and Exposure Specifications. More complete descriptions of Instrument Configurations, Modes, Apertures, Spectral Elements, etc. are available in the COS Instrument Handbook.

COS FUV operations at Lifetime Position 6 (LP6) for long G160M exposures began at the start of Cycle 30 and are continuing (there have been no changes since Cycle 30).  LP6 is located 6.5" above LP1 in the cross-dispersion direction, and 1.1" above LP5. G160M observations with two or less science exposures per orbit are executed by default at LP6. Users with orbits containing more than two G160M science exposures should select LP4 if justified in the Phase I proposal and with approval by the COS team. Users are strongly advised to consult Chapters 2.1 and 9.5.1 of the COS Instrument Handbook for more details. The blue modes (G130M/1055 and G130M/1096) remain at LP2, and G130M/1222 remains at LP4. G140L FUV TIME-TAG/ACCUM science observations are executed at LP3, but G140L spectroscopic acquisitions remain at LP4. G130M FUV TIME-TAG/ACCUM science observations with cenwaves 1291, 1300, 1309, 1318, and 1327 are executed at LP5. If justified in the Phase I proposal, observations of Lyman Alpha with G130M are available at LP3 (with spectroscopic acquisitions remaining at LP5). The defaults for SEGMENT and FP-POS optional parameters for all cenwaves are unchanged.

Since Cycle 26, two new COS/FUV central wavelengths (cenwaves), G140L/800 and G160M/1533, are being offered for TIME-TAG and ACCUM exposures. These modes are not offered for dispersed-light acquisitions. The G140L/800 mode places a broad range of wavelengths (800–1950 Å) on Segment A of the COS FUV detector, with a small astigmatic height at low wavelengths. The G160M/1533 mode extends the G160M coverage by 44 Å towards shorter wavelengths to overlap with the longest wavelengths of the G130M/1222 mode, allowing high signal-to-noise coverage of the full FUV bandpass with only two settings without placing Lyman-alpha on the detector. A more detailed motivation for these cenwaves is given in the COS Instrument Handbook

New from Cycle 25 Onward

Restrictions on allowed observing modes with the G130M grating, which were put in place beginning in Cycle 25 at LP4 also apply at LP5. These restrictions, commonly referred to as "COS2025 restrictions", are designed to reduce the impact of geocoronal Lyman-alpha emission on FUV detector segment B, since this emission is a principal agent of gain sag. The restrictions affect the choice of SEGMENT and FP-POS available for certain G130M central wavelength settings (cenwaves), and apply to both science exposures and dispersed-light acquisitions. The policies can be summarized as follows:

  • Observations with cenwave 1291, 1300, 1309, 1318, and 1327 have restrictions on Optional Parameters FP-POS and detector SEGMENT at LP4 and LP5:
    • -  for 1291 observations, only two FP-POS positions (3 and 4) are allowed if SEGMENT=BOTH or SEGMENT=B.
    • -  for 1300, 1309, 1318, and 1327 observations, only SEGMENT=A is allowed, but all four FP-POS positions can (and should) be used.
  • Users of the 1291, 1300, 1309, 1318, and 1327 settings whose science case involves the study of Galactic Lyman-alpha and who would be adversely affected by these FP-POS and SEGMENT restrictions are allowed to request their observations be taken at LP3. At LP3, all four FP-POS and both SEGMENTS can be used for each of these five central wavelengths, as has been the case in the past. Such requests will be reviewed by the COS team.
  • All COS users are urged to check the COS2025 website at: http://www.stsci.edu/hst/instrumentation/cos/proposing/cos2025-policies for detailed information about the COS2025 restrictions.

Observations with the G160M and G140L gratings and with the NUV channel are unaffected by the COS2025 policies. The supported FUV settings for Cycle 30 and beyond are summarized in Table 11.1 (for science exposures) and Table 11.2 (for dispersed-light acquisitions).

New from Cycle 30 Onward

To extend the lifetime of the FUV detector, starting in Cycle 30 COS operates at 5 different lifetime positions simultaneously. The default lifetime positions for each available central wavelength can be summarized as follows (see also Table 11.1 Supported settings for FUV ACCUM and TIME-TAG exposures):

  • Observations with G130M central wavelengths 1055 and 1096 continue to be taken at LP2.
  • Observations with G130M central wavelength 1222 continue to be taken at LP4.
  • Observations with G130M central wavelengths 1291, 1300, 1309, 1318, and 1327 are taken at LP5
  • Science observations with G140L central wavelengths 800, 1105, 1230, and 1280 are taken at LP3, target acquisitions are taken at LP4.
  • Observations with G160M central wavelengths 1533, 1577, 1589, 1600, 1611, and 1623 are taken at LP6.  G160M observations can be requested at LP4 with approval by the COS team. See Chapter 2 in the COS Instrument Handbook for the circumstances under which G160M observations can be conducted at LP4.

G130M science observations with central wavelengths 1291, 1300, 1309, 1318, and 1327 are AVAILABLE at LP3 with approval from the COS team and if justified in the Phase I proposal, but LP3 is not AVAILABLE for spectroscopic acquisitions.

Due to low throughput, the NUV G285M grating is now AVAILABLE but unsupported, and can be requested with approval by the COS team.

Table 11.1: Supported settings for FUV ACCUM and TIME- TAG exposures in Cycle 30 and beyond

Setting

SEGMENT1

FP-POS

Default LP

G130M/1055

A, B, BOTH

1, 2, 3, 4, ALL

LP2

G130M/1096

A, B, BOTH

1, 2, 3, 4, ALL

LP2

G130M/1222

A, B, BOTH

1, 2, 3, 4, ALL

LP4

G130M/12912

A, B, BOTH

3, 4

LP5

G130M/1300

A

1, 2, 3, 4, ALL

LP5

G130M/1309

A

1, 2, 3, 4, ALL

LP5

G130M/1318

A

1, 2, 3, 4, ALL

LP5

G130M/1327

A

1, 2, 3, 4, ALL

LP5
G140L/800A1, 2, 3, 4, ALLLP3

G140L/1105

A

1, 2, 3, 4, ALL

LP3

G140L/1230

A, B, BOTH

1, 2, 3, 4, ALL

LP3

G140L/1280

A, B, BOTH

1, 2, 3, 4, ALL

LP3
G160M/1533A, B, BOTH1, 2, 3, 4, ALLLP6

G160M/1577

A, B, BOTH

1, 2, 3, 4, ALL

LP6

G160M/1589

A, B, BOTH

1, 2, 3, 4, ALL

LP6

G160M/1600

A, B, BOTH

1, 2, 3, 4, ALL

LP6

G160M/1611

A, B, BOTH

1, 2, 3, 4, ALL

LP6

G160M/1623

A, B, BOTH

1, 2, 3, 4, ALL

LP6

1 Default values for the SEGMENT optional parameter are in bold.
2 G130M/1291 observations using SEGMENT=A  can use all FP-POS settings (1, 2, 3, 4, ALL), but G130M/1291 observations using SEGMENT=B or SEGMENT=BOTH are restricted to FP-POS=3, 4.

Table 11.2: Supported settings for FUV spectroscopic target acquisitions in Cycle 30 and beyond

Setting

SEGMENT1

Default LP

G130M/1291

A, B, BOTH

LP5

G130M/1300

A

LP5

G130M/1309

A

LP5

G130M/1318

A

LP5

G130M/1327

A

LP5

G140L/1105

A

LP4

G140L/1280

A, B, BOTH

LP4

G160M/1577

A, B, BOTH

LP6

G160M/1589

A, B, BOTH

LP6

G160M/1600

A, B, BOTH

LP6

G160M/1611

A, B, BOTH

LP6

G160M/1623

A, B, BOTH

LP6

1 Default values for the SEGMENT optional parameter are in bold.

At Lifetime Positions 3 (LP3) and 4 (LP4) of the COS/FUV detector, observations of extended objects and observations using the Bright Object Aperture (BOA) might not be properly calibrated due to the extraction algorithm used ("two-zone").  In these two cases the standard pipeline calibration will not always produce the flux accuracy achieved for point sources observed with the Primary Science Aperture (PSA), and it will be the responsibility of the user to evaluate the adequacy of the spectral extraction and, if necessary, undertake any customized extractions. See COS ISR 2015-03 for further details.

Use of the BOA at Lifetime Position 5 (LP5) and 6 (LP6) is not permitted so cannot be used with  grating/wavelength combinations that use LP5 or LP6; those need to request use of LP3 or LP4 respectively.

NUV science and target acquisition observations are not affected by the FUV lifetime position moves. COS target acquisitions of extended targets have always had caveats, as discussed in the 'Special Cases' section of the COS Instrument Handbook.

Table 11.3: Instrument Parameters for COS lists the permitted Instrument Configurations, Operating Modes, Apertures, Spectral Elements, and Optional Parameters for COS.

Table 11.3: Instrument Parameters for COS

Config

Mode

Aperture

Spectral Elements

Optional Parameters






COS/FUV





ACQ/SEARCH

PSA, BOA

See Table 11.5: COS Spectral Elements and Central Wavelengths

SEGMENT, SCAN-SIZE, STEP-SIZE, CENTER


ACQ/PEAKXD

PSA, BOA

SEGMENT NUM-POS, STEP-SIZE, CENTER,

ACQ/PEAKD

PSA, BOA

SEGMENT, NUM-POS, STEP-SIZE, CENTER,

TIME-TAG

PSA, BOA, WCA, FCA

SEGMENT, BUFFER-TIME, EXTENDED1,

FP-POS, FLASH,

ACCUM

PSA, BOA

SEGMENT, EXTENDED1, FP-POS

COS/NUV





ACQ/SEARCH

PSA, BOA

See Table 11.5: COS Spectral Elements and Central Wavelengths

SCAN-SIZE, STEP-SIZE, CENTER

ACQ/IMAGE

PSA, BOA

MIRRORA, MIRRORB


ACQ/PEAKXD

PSA, BOA

SeeTable 11.5: COS Spectral Elements and Central Wavelengths

STRIPE

ACQ/PEAKD

PSA, BOA

NUM-POS, STEP-SIZE, CENTER

TIME-TAG

PSA, BOA, WCA, FCA

BUFFER-TIME EXTENDED1, FP-POS, FLASH

ACCUM

PSA, BOA

FP-POS

1 Deprecated, see Target Extent

COS restricted parameters

Table 11.3 (cont): Additional Instrument Parameters for COS (Restricted)

Config

Mode

Aperture

Spectral Elements

Optional Parameters

COS

ALIGN/APER

None

None

XAPER, YAPER

ALIGN/OSM

None

None

FOCUS, OSM1ROT, OSM2ROT

COS/FUV





ACQ/SEARCH

PSA, BOA

See Table 11.5: COS Spectral Elements and Central Wavelengths










LOCAL- THRESHOLD

ACQ/PEAKXD

PSA, BOA

LOCAL- THRESHOLD

ACQ/PEAKD

PSA, BOA

LOCAL- THRESHOLD

TIME-TAG

PSA, BOA, WCA, FCA

CURRENT, STIM-RATE, WAVECAL

ACCUM

PSA, BOA

STIM-RATE, WAVECAL

COS/NUV





ACQ/SEARCH

PSA, BOA

LOCAL- THRESHOLD

ACQ/PEAKXD

PSA, BOA

NUM-POS, STEP-SIZE, CENTER

ACQ/PEAKD

PSA, BOA

LOCAL- THRESHOLD

TIME-TAG

PSA, BOA, WCA, FCA

CURRENT, WAVECAL

ACCUM

PSA, BOA

WAVECAL

During HST Cycles 20-23 COS Lifetime Positions (LPs) were selectable via the "LIFETIME-POS" optional keyword for FUV and NUV exposures for three different detector locations: 'Original', 'Alternate', and 'Current'. Beginning with Cycle 24, this nomenclature has been deprecated and replaced with calling the LP by number (e.g., LP3).

For the NUV channel, there will always only be one lifetime position (LP1 or the old 'Original'). Therefore, the "LIFETIME-POS" optional parameter is no longer available for NUV exposures beginning with Cycle 24.

Note: If a non-default value of "LIFETIME-POS" is used and there are coordinated parallels, the position of the parallel aperture(s) could be offset by a small amount in Aladin.

COS available parameters

Table 3 (cont): Additional Instrument Parameters for COS (Available)

Config

Mode

Aperture

Spectral Elements

Optional Parameters

COS/FUV





ACQ/SEARCH

PSA, BOA

See table Table 11.5: COS Spectral Elements and Central Wavelengths

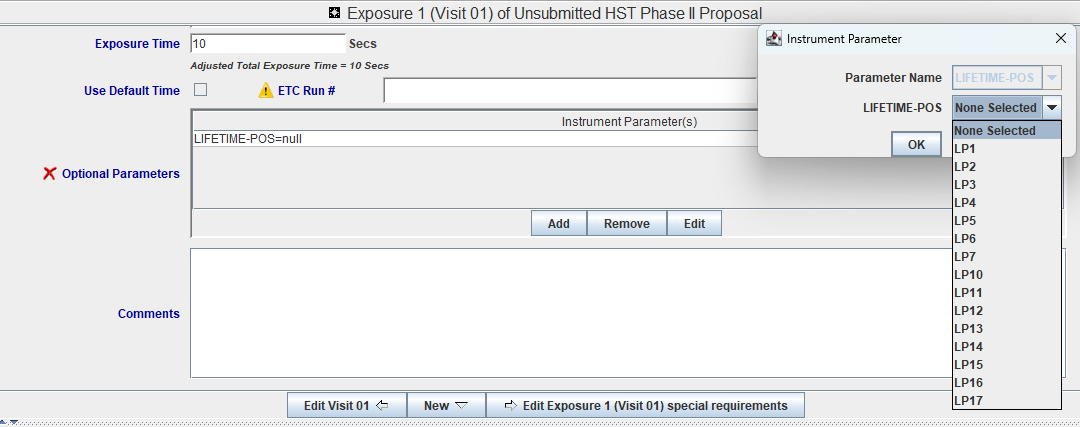

LIFETIME-POS1





ACQ/PEAKXD

PSA, BOA

ACQ/PEAKD

PSA, BOA

TIME-TAG

PSA, BOA, WCA

ACCUM

PSA, BOA

1 The Optional Parameter LIFETIME-POS is required for G130M, G160M and G140L observations that are not in SUPPORTED mode (i.e., that are in AVAILABLE or RESTRICTED mode).
