2.2 ACS File Structure

The ACS calibration pipeline assembles data received from HST into datasets, applies standard calibrations (so that calibrated image header keyword values can be entered in the Archive database), and stores uncalibrated datasets in the HST Data Archive. When a user requests data, it is fetched from the MAST static archive unless newer versions of the pipeline and/or calibration reference files are present. In the latter case, the requested data will be moved to the top of the reprocessing queue.

Data from the Archive arrives as multi-extension FITS files that have three main categories, as listed below (see Figure 2.1 for a graphical representation of this information). Single quotes around the extension names are required in Python usage.

  1. Global header extension ('PRIMARY'): this is always in extension [0], and contains a selection of header keyword values applicable to all information in the FITS file.
  2. Science image ('SCI'), error array ('ERR'), and data quality array ('DQ') extensions:
    1. HRC and SBC are single-detector channels. For these channels, the science image is in extension [1] or ['SCI',1], error array in extension [2] or ['ERR',1], and data quality array in extension [3] or ['DQ',1].
    2. WFC data comes from two chips, each with its own science, error, and data quality arrays. For WFC2, the science image is in extension [1] or ['SCI',1], error array in extension [2] or ['ERR',1], and data quality array in extension [3] or ['DQ',1]. For WFC1, the science image is in extension [4] or ['SCI',2], error array in extension [5] or ['ERR',2], and data quality array in extension [6] or ['DQ',2]. See Figure 2.2 for a visual representation of the WFC chips projected onto the V2,V3 axis. Figure 2.2 shows the WFC apertures plotted with respect to the V2,V3 reference frame, and oriented such that the x-axis runs approximately towards the right and the y-axis runs approximately straight up. In pipeline data products, WFC2 is displayed below WFC1 (along the y-axis) and is therefore designated as extension 1.
  3. AstroDrizzle extensions:
    1. Drizzled data from the pipeline have the suffix drz.fits, and additionally drc.fits for WFC CTE-corrected data. These products are delivered as multi-extension FITS files with three image data extensions: science image ['SCI'], weight image ['WHT'], and context image ['CTX']. However, AstroDrizzle also adds new FITS extensions to the flt.fits/flc.fits and drz.fits/drc.fits files, as summarized below. For more information on drizzled data, please refer to the Drizzlepac Handbook.
    2. For flt.fits/flc.fits images: during OTFR processing, AstroDrizzle updates the WCS of these images with distortion corrections. Linear distortion corrections (scale, rotation, and time-dependent skew) are incorporated into the CD-Matrix. Coefficients for higher order polynomial functions that describe the distortion corrections are stored as SIP1 header keyword values. Some distortion corrections, however, cannot be expressed as equations and have to be stored in array form as FITS extensions.
    3. The ['D2IMARR'] fits extensions are tabular data required only for WFC, with one extension per chip axis. They are filter-independent corrections for the CCD pixel-grid irregularities resulting from the manufacturing process and contain both X and Y corrections for each WFC CCD chip.
    4. The ['WCSDVARR'] fits extensions, with one extension per chip axis, hold tabular data which describe small-scale distortions due to filter-dependent non-polynomial distortion corrections which include both X and Y corrections for each WFC CCD chip. Therefore, a WFC flt.fits/flc.fits image has four ['WCSDVARR'] extensions while HRC and SBC only have two ['WCSDVARR'] extensions.
    5. If the data were reprocessed with a new distortion correction reference file, a FITS extension called ['WCSCORR'] is added that contains a history of WCS changes.
    6. Several ['HEADERLET'] FITS extensions containing WCS transformations that can be applied as the primary WCS. For more detailed information please consult the Hubble Advanced Products (HAP) headerlets page.
    7. For drz.fit/drc.fits images: a fourth extension has been added, called ['HDRTAB'], which is a compilation of important header keywords that have unique values for each input image.

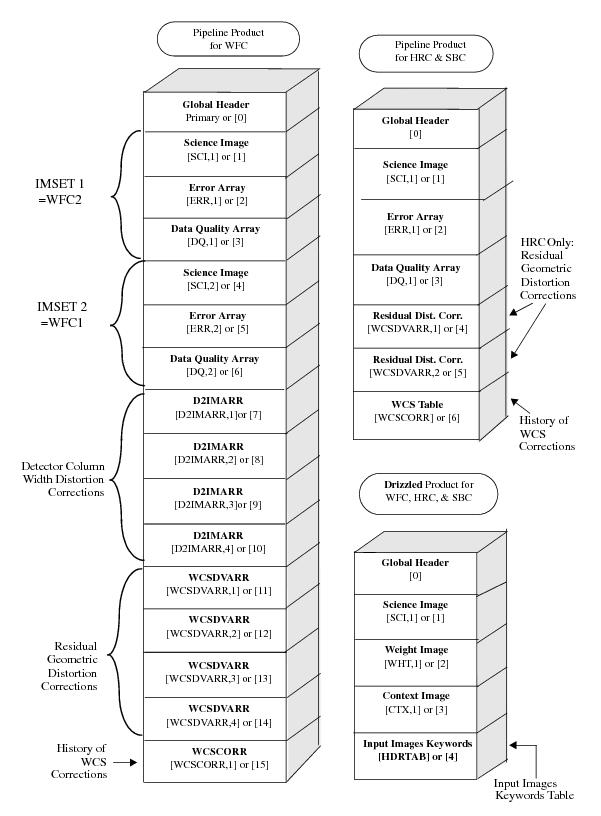

Figure 2.1: Data Format for Calibrated and Drizzled ACS Modes



For calibrated science data, WFC1 (chip 1) corresponds to extension ['SCI',2] or [4]. Hubble Advanced Products (HAP) images now contain an additional variable number of extensions containing World Coordinate System (WCS) headerlets for various alignment solutions.


The number of headerlets may vary from image to image depending on what has been done to it. Here below is the header listing of a standard *_flc.fits file and for comparison farther below, the header listing of a standard *_drc.fits file.

Python INPUT:

*_flc.fits image listing of header groups:
from astropy.io import fits

fits_image_filename = ('jcsz32diq_flc.fits')

with fits.open(fits_image_filename) as hdul:

hdul.info()

hdul.close()

Python OUTPUT:

Listing of header groups:
Filename: jcsz32diq_flc.fits
No.    Name         Type      Cards   Dimensions   Format
0    PRIMARY     PrimaryHDU     289   ()
1    SCI         ImageHDU       241   (4096, 2048)   float32
2    ERR         ImageHDU        53   (4096, 2048)   float32
3    DQ          ImageHDU        45   (4096, 2048)   int16
4    SCI         ImageHDU       239   (4096, 2048)   float32
5    ERR         ImageHDU        53   (4096, 2048)   float32
6    DQ          ImageHDU        45   (4096, 2048)   int16
7    D2IMARR     ImageHDU        16   (64, 32)     float32
8    D2IMARR     ImageHDU        16   (64, 32)     float32
9    D2IMARR     ImageHDU        16   (64, 32)     float32
10   D2IMARR     ImageHDU        16   (64, 32)     float32
11   WCSDVARR    ImageHDU        16   (64, 32)     float32
12   WCSDVARR    ImageHDU        16   (64, 32)     float32
13   WCSDVARR    ImageHDU        16   (64, 32)     float32
14   WCSDVARR    ImageHDU        16   (64, 32)     float32
15   HDRLET      NonstandardExtHDU     18   ()
16   HDRLET      NonstandardExtHDU     26   ()
17   WCSCORR     BinTableHDU     59   14R x 24C    [40A, I, A, 24A, 24A, 24A, 24A, D, D, D, D, D, D, D, D, 24A, 24A, D, D, D, D, J, 40A, 128A]
18   HDRLET      NonstandardExtHDU     26   ()
19   HDRLET      NonstandardExtHDU     26   ()


Similarly, one may list the header groups of a *_drc.fits image.

Python INPUT:

Code to list *_drc.fits image header groups
from astropy.io import fits

fits_image_filename = ('jcsz32010_drc.fits')

with fits.open(fits_image_filename) as hdul:

hdul.info()

hdul.close()

Python OUTPUT:

*_drc.fits header listing of groups
Filename: jcsz32010_drc.fits
No.    Name         Type      Cards   Dimensions   Format
0    PRIMARY     PrimaryHDU     856   ()
1    SCI         ImageHDU        81   (4222, 4334)   float32
2    WHT         ImageHDU        44   (4222, 4334)   float32
3    CTX         ImageHDU        37   (4222, 4334)   int32
4    HDRTAB      BinTableHDU    633   8R x 312C    [9A, 3A, K, D, D, D, D, D, D, D, D, D, D, D, D, D, K, 8A, 9A, 7A, 18A, 4A, D, D, D, D, 3A, D, D, D, D, D, D, D, D, D, D, D, D, K, 8A, 23A, D, D, D, D, K, K, K, 8A, K, 23A, 9A, 20A, K, 4A, K, D, K, K, K, K, 23A, D, D, D, D, K, K, 3A, 3A, 4A, 4A, L, D, D, D, 3A, 1A, K, D, D, D, 13A, 3A, 4A, 4A, 12A, 12A, 23A, 8A, 23A, 10A, 10A, D, D, 3A, 3A, 23A, 4A, 8A, 7A, 23A, D, K, D, 6A, 9A, 8A, D, D, L, 4A, 18A, 3A, K, 5A, 7A, 3A, D, 13A, 8A, 4A, 3A, L, K, L, K, L, K, K, D, D, D, D, D, D, 3A, 1A, D, 23A, D, D, D, 3A, 23A, L, 1A, 3A, 6A, D, 3A, 6A, K, D, D, D, D, D, D, D, D, D, D, 23A, D, D, D, D, 3A, D, D, D, 1A, K, K, K, K, K, K, 23A, K, 5A, 7A, D, D, D, D, D, D, D, D, D, D, D, D, D, D, D, D, D, 13A, D, 24A, 23A, D, 1A, 1A, D, K, D, D, 1A, 1A, D, 4A, K, D, K, 8A, D, D, D, D, D, 23A, 23A, D, 8A, D, 29A, D, 3A, D, L, D, D, 3A, 8A, 4A, 1A, D, 8A, K, 1A, 1A, 1A, 1A, D, D, D, D, D, D, 4A, D, 4A, D, 4A, K, 4A, 3A, 1A, L, K, K, 1A, D, D, D, D, K, 3A, L, L, 6A, L, D, D, 9A, D, D, 3A, 8A, 1A, D, K, D, L, 30A, L, 5A, 4A, K, D, D, D, D, D, D, D, D, D, D, D, D, D, D, 8A, 8A, 3A, 3A]


One can also look for a specific keyword in a specific extension, such as the GAIN value in the Group 0 header extension here.


Python INPUT:


Code to find specific keyword in specific header group, in this case GAIN in Group 0
from astropy.io import fits

fits_image_filename = ('jcsz32010_drc.fits')

with fits.open(fits_image_filename) as hdu1:

    print(hdu1[0].header['CCDGAIN'])

Python INPUT:

Output GAIN value in Group 0 header
2.0


One can also look at the full header contents for a specific extension, in this case below, the Group 0 extension.

Python INPUT:

Full listing of keywords and their values from Group 0 header
from astropy.io import fits

fits_image_filename = 'jcsz32010_drc.fits'

with fits.open(fits_image_filename) as hdu1:

    hdr = hdu1[0].header

hdr

Python OUTPUT:

Full Group 0 header keyword and value listing

SIMPLE  =                    T / conforms to FITS standard
BITPIX  =                    8 / array data type
NAXIS   =                    0 / number of array dimensions
EXTEND  =                    T
COMMENT   FITS (Flexible Image Transport System) format is defined in 'Astronomy
COMMENT   and Astrophysics', volume 376, page 359; bibcode: 2001A&A...376..359H

TELESCOP= 'HST'                / telescope used to acquire data
INSTRUME= 'ACS   '             / identifier for instrument used to acquire data

              / DATA DESCRIPTION KEYWORDS

IMAGETYP= 'EXT               ' / type of exposure identifier
PRIMESI = 'ACS   '             / instrument designated as prime

              / TARGET INFORMATION

TARGNAME= 'ABELL-370                      ' / proposer's target name

              / PROPOSAL INFORMATION

PROPOSID=                14038 / PEP proposal identifier

              / EXPOSURE INFORMATION

SUNANGLE=            92.396057 / angle between sun and V1 axis
MOONANGL=           101.841713 / angle between moon and V1 axis
SUN_ALT =            93.186295 / altitude of the sun above Earth's limb
FGSLOCK = 'FINE              ' / commanded FGS lock (FINE,COARSE,GYROS,UNKNOWN)
GYROMODE= 'T'                  / number of gyros scheduled, T=3+OBAD

DATE-OBS= '2016-01-25'         / UT date of start of observation (yyyy-mm-dd)
EXPSTART=   5.741240408115E+04 / exposure start time (Modified Julian Date)
EXPEND  =       57412.49923216 / exposure end time (Modified Julian Date)
EXPTIME =               5146.0 / exposure duration (seconds)--calculated
TEXPTIME=               5146.0
EXPFLAG = 'NORMAL       '      / Exposure interruption indicator

DARKTIME=        1.2284331E+03 / fiducial pixel dark time (secs)

              / POINTING INFORMATION


              / TARGET OFFSETS (POSTARGS)

POSTARG1=             0.677630 / POSTARG in axis 1 direction
POSTARG2=            10.565430 / POSTARG in axis 2 direction

              / DIAGNOSTIC KEYWORDS

AWSYSVER= 'v0.4.33 '           / cloud infrastructure package version
AWSDPVER= 'v0.2.16 '           / cloud docker image version
CSYS_VER= 'caldp_20211129'     / calibration software system version id

              / SCIENCE INSTRUMENT CONFIGURATION

OBSTYPE = 'IMAGING       '     / observation type - imaging or spectroscopic
OBSMODE = 'ACCUM     '         / operating mode
CTEIMAGE= 'NONE'               / type of Charge Transfer Image, if applicable
SCLAMP  = 'NONE          '     / lamp status, NONE or name of lamp which is on
NRPTEXP =                    1 / number of repeat exposures in set: default 1
SUBARRAY=                    F / data from a subarray (T) or full frame (F)
DETECTOR= 'WFC'                / detector in use: WFC, HRC, or SBC
FILTER1 = 'F606W             ' / element selected from filter wheel 1
FILTER2 = 'CLEAR2L           ' / element selected from filter wheel 2
FW1OFFST=                    0 / computed filter wheel offset
FW1ERROR=                    F / filter wheel position error flag
FW2OFFST=                -4320 / computed filter wheel offset
FW2ERROR=                    T / filter wheel position error flag
FWSOFFST=                    0 / computed filter wheel offset
FWSERROR=                    F / filter wheel position error flag
LRFWAVE =             0.000000 / proposed linear ramp filter wavelength
APERTURE= 'WFCENTER        '   / aperture name
PROPAPER= 'WFCENTER        '   / proposed aperture name
DIRIMAGE= 'NONE     '          / direct image for grism or prism exposure
CTEDIR  = 'NONE    '           / CTE measurement direction: serial or parallel
CRSPLIT =                    1 / number of cosmic ray split exposures

              / CALIBRATION SWITCHES: PERFORM, OMIT, COMPLETE

WRTERR  =                    T / write out error array extension
DQICORR = 'COMPLETE'           / data quality initialization
ATODCORR= 'OMIT    '           / correct for A to D conversion errors
BLEVCORR= 'COMPLETE'           / subtract bias level computed from overscan img
BIASCORR= 'COMPLETE'           / Subtract bias image
FLSHCORR= 'OMIT    '           / post flash correction
CRCORR  = 'OMIT    '           / combine observations to reject cosmic rays
EXPSCORR= 'COMPLETE'           / process individual observations after cr-reject
SHADCORR= 'OMIT    '           / apply shutter shading correction
DARKCORR= 'COMPLETE'           / Subtract dark image
FLATCORR= 'COMPLETE'           / flat field data
PHOTCORR= 'COMPLETE'           / populate photometric header keywords
DRIZCORR= 'COMPLETE'           / drizzle processing
SINKCORR= 'COMPLETE'           / flag sink pixels

              / CALIBRATION REFERENCE FILES

BPIXTAB = 'jref$25g1256nj_bpx.fits' / bad pixel table
CCDTAB  = 'jref$44h1714cj_ccd.fits' / CCD calibration parameters
ATODTAB = 'N/A                    ' / analog to digital correction file
OSCNTAB = 'jref$17717071j_osc.fits' / CCD overscan table
BIASFILE= 'jref$25e1534mj_bia.fits' / bias image file name
FLSHFILE= 'N/A                    ' / post flash correction file name
CRREJTAB= 'N/A                    ' / cosmic ray rejection parameters
SHADFILE= 'N/A                    ' / shutter shading correction file
DARKFILE= 'jref$4b70022fj_drk.fits' / dark image file name
DFLTFILE= 'N/A                    ' / delta flat field file name
LFLTFILE= 'N/A                    ' / low order flat
PHOTTAB = 'N/A                    ' / Photometric throughput table
GRAPHTAB= 'N/A                    ' / the HST graph table
COMPTAB = 'N/A                    ' / the HST components table
IDCTAB  = 'jref$4bb1536cj_idc.fits' / image distortion correction table
DGEOFILE= 'jref$qbu16424j_dxy.fits' / Distortion correction image
MDRIZTAB= 'jref$37g1550cj_mdz.fits' / MultiDrizzle parameter table
CFLTFILE= 'N/A                    ' / Coronagraphic spot image
SPOTTAB = 'N/A                    ' / Coronagraphic spot offset table
IMPHTTAB= 'jref$4af1559ij_imp.fits' / Image Photometry Table
SNKCFILE= 'jref$25e1528hj_snk.fits' / Map of sink pixels
SATUFILE= 'jref$5331917aj_sat.fits' / CCD pixel saturation onset map

              / COSMIC RAY REJECTION ALGORITHM PARAMETERS

MEANEXP =             0.000000 / reference exposure time for parameters
SCALENSE=             0.000000 / multiplicative scale factor applied to noise
SKYSUB  = '    '               / sky value subtracted (MODE or NONE)
SKYSUM  =                  0.0 / sky level from the sum of all constituent image
CRRADIUS=             0.000000 / rejection propagation radius (pixels)
CRTHRESH=             0.000000 / rejection propagation threshold
BADINPDQ=                    0 / data quality flag bits to reject
REJ_RATE=                  0.0 / rate at which pixels are affected by cosmic ray
CRMASK  =                    F / flag CR-rejected pixels in input files (T/F)

              / OTFR KEYWORDS


              / PATTERN KEYWORDS

PATTERN1= 'NONE                    ' / primary pattern type
P1_SHAPE= '                  ' / primary pattern shape
P1_PURPS= '          '         / primary pattern purpose
P1_NPTS =                    0 / number of points in primary pattern
P1_PSPAC=             0.000000 / point spacing for primary pattern (arc-sec)
P1_LSPAC=             0.000000 / line spacing for primary pattern (arc-sec)
P1_ANGLE=             0.000000 / angle between sides of parallelogram patt (deg)
P1_FRAME= '         '          / coordinate frame of primary pattern
P1_ORINT=             0.000000 / orientation of pattern to coordinate frame (deg
P1_CENTR= '   '                / center pattern relative to pointing (yes/no)
PATTSTEP=                    0 / position number of this point in the pattern

              / POST FLASH  PARAMETERS

FLASHDUR=                  0.0 / Exposure time in seconds: 0.1 to 409.5
FLASHCUR= 'OFF '               / Post flash current: OFF, LOW, MED, HIGH
FLASHSTA= 'NOT PERFORMED   '   / Status: SUCCESSFUL, ABORTED, NOT PERFORMED
SHUTRPOS= 'MULTIPLE'           / Shutter position: A or B
NSHUTOPN=                    1 / Number of times shutter opened

              / ENGINEERING PARAMETERS

CCDGAIN =                  2.0 / commanded gain of CCD
CCDOFSTA=                    1 / commanded CCD bias offset for amplifier A
CCDOFSTB=                    1 / commanded CCD bias offset for amplifier B
CCDOFSTC=                    1 / commanded CCD bias offset for amplifier C
CCDOFSTD=                    1 / commanded CCD bias offset for amplifier D

              / CALIBRATED ENGINEERING PARAMETERS

ATODGNA =        2.0200000E+00 / calibrated gain for amplifier A
ATODGNB =        1.8860000E+00 / calibrated gain for amplifier B
ATODGNC =        2.0170000E+00 / calibrated gain for amplifier C
ATODGND =        2.0109999E+00 / calibrated gain for amplifier D
READNSEA=        4.3499999E+00 / calibrated read noise for amplifier A
READNSEB=        3.7500000E+00 / calibrated read noise for amplifier B
READNSEC=        4.0500002E+00 / calibrated read noise for amplifier C
READNSED=        5.0500002E+00 / calibrated read noise for amplifier D

              / ASSOCIATION KEYWORDS

CRDS_CTX= 'hst_0972.pmap'
CRDS_VER= '11.4.3, b11.4.0, 64d96076d89b32a5687a6b77bb910ab93b3a99b3'
UPWCSVER= '1.7.2   '           / Version of STWCS used to update the WCS
PYWCSVER= '4.3.1   '           / Version of Astropy used to update the WCS
HISTORY CCD parameters table:
HISTORY   reference table jref$44h1714cj_ccd.fits
HISTORY     inflight
HISTORY     July 2009
HISTORY DQICORR complete ...
HISTORY   values checked for saturation
HISTORY   DQ array initialized ...
HISTORY   reference table jref$25g1256nj_bpx.fits
HISTORY BIASCORR complete ...
HISTORY   reference image jref$25e1534mj_bia.fits
HISTORY     INFLIGHT 13/01/2016 10/02/2016
HISTORY     Standard full-frame bias for data taken after Jan 13 2016 01:33:37-
HISTORY DESTRIPE: number of rows fixed per amp: 2047
HISTORY DESTRIPE: number of rows skipped per amp: 21
HISTORY BLEVCORR complete; bias level from overscan was subtracted.
HISTORY BLEVCORR does not include correction for drift along lines.
HISTORY   Overscan region table:
HISTORY   reference table jref$17717071j_osc.fits
HISTORY Uncertainty array initialized.
HISTORY SINKCORR complete ...
HISTORY   reference image jref$25e1528hj_snk.fits
HISTORY     INFLIGHT 13/01/2016 10/02/2016
HISTORY     Sink pixel reference file ----------------------------
HISTORY CCD parameters table:
HISTORY   reference table jref$44h1714cj_ccd.fits
HISTORY     inflight
HISTORY     July 2009
HISTORY CTE_NAME PixelCTE 2017 CTE algorithm name
HISTORY CTE_VER 2.0 CTE algorithm version
HISTORY CTEDATE0   5.233486000000E+04 Date of instrument installation
HISTORY PCTETRSH  -1.000000000000E+01 CTE over subtraction threshold
HISTORY CTEDATE1   5.771044601020E+04 Date of CTE model pinning
HISTORY PCTEFRAC   9.445563835308E-01 CTE scaling factor
HISTORY PCTETLEN           60 max length of CTE trail
HISTORY PCTENFOR            5 Number of iter in forward model
HISTORY PCTENPAR            7 Number of iter in parallel transfer
HISTORY FIXROCR            1 fix readout cosmic rays
HISTORY PCTECORR complete ...
HISTORY PCTERNOI  4.3499999E+00 Amp 'A' read noise clip limit (from CCDTAB).
HISTORY PCTERNOI  3.7500000E+00 Amp 'B' read noise clip limit (from CCDTAB).
HISTORY PCTERNOI  4.0500002E+00 Amp 'C' read noise clip limit (from CCDTAB).
HISTORY PCTERNOI  5.0500002E+00 Amp 'D' read noise clip limit (from CCDTAB).
HISTORY CTE parameters table:
HISTORY   reference table jref$19i16323j_cte.fits
DISTNAME= 'jcsz32dcq_4bb1536cj-4bb1536ej-4bb15371j'
SIPNAME = 'jcsz32dcq_4bb1536cj'
RULESVER=                  1.1 / Version ID for header kw rules file
BLENDVER= '1.2.0   '           / Version of blendheader software used
RULEFILE= '/opt/conda/lib/python3.8/site-packages/fitsblender/acs_header.rules'
NEXTEND =                    4
FILENAME= 'jcsz32010_drc.fits'
PROD_VER= 'DrizzlePac 3.3.1'
DRIZPARS= 'jcsz32010.tra'      / Logfile for processing
ROOTNAME= 'jcsz32010_drc.fits'
ASN_MTYP= 'PROD-DTH'
NDRIZIM =                    8 / Drizzle, No. images drizzled onto output
D001VER = 'Callable C-based DRIZZLE Version 0.8 (20th May 2009)' / Drizzle, task
D001GEOM= 'wcs     '           / Drizzle, source of geometric information
D001DATA= 'jcsz32dcq_flc.fits[sci,1]' / Drizzle, input data image
D001DEXP=               1225.0 / Drizzle, input image exposure time (s)
D001OUDA= 'jcsz32010_drc.fits' / Drizzle, output data image
D001OUWE= 'jcsz32010_drc_wht.fits' / Drizzle, output weighting image
D001OUCO= 'jcsz32010_drc_ctx.fits' / Drizzle, output context image
D001MASK= 'jcsz32dcq_sci1_final_mask.fits' / Drizzle, input weighting image
D001WTSC=                    1 / Drizzle, weighting factor for input image
D001KERN= 'square  '           / Drizzle, form of weight distribution kernel
D001PIXF=                  1.0 / Drizzle, linear size of drop
D001COEF= 'SIP     '           / Drizzle, source of coefficients
D001OUUN= 'cps     '           / Drizzle, units of output image - counts or cps
D001FVAL= 'INDEF   '           / Drizzle, fill value for zero weight output pix
D001WKEY= '' / Input image WCS Version used
D001SCAL=                 0.05 / Drizzle, pixel size (arcsec) of output image
D001ISCL=                 0.05 / Drizzle, default IDCTAB pixel size(arcsec)
D002VER = 'Callable C-based DRIZZLE Version 0.8 (20th May 2009)' / Drizzle, task
D002GEOM= 'wcs     '           / Drizzle, source of geometric information
D002DATA= 'jcsz32dcq_flc.fits[sci,2]' / Drizzle, input data image
D002DEXP=               1225.0 / Drizzle, input image exposure time (s)
D002OUDA= 'jcsz32010_drc.fits' / Drizzle, output data image
D002OUWE= 'jcsz32010_drc_wht.fits' / Drizzle, output weighting image
D002OUCO= 'jcsz32010_drc_ctx.fits' / Drizzle, output context image
D002MASK= 'jcsz32dcq_sci2_final_mask.fits' / Drizzle, input weighting image
D002WTSC=                    1 / Drizzle, weighting factor for input image
D002KERN= 'square  '           / Drizzle, form of weight distribution kernel
D002PIXF=                  1.0 / Drizzle, linear size of drop
D002COEF= 'SIP     '           / Drizzle, source of coefficients
D002OUUN= 'cps     '           / Drizzle, units of output image - counts or cps
D002FVAL= 'INDEF   '           / Drizzle, fill value for zero weight output pix
D002WKEY= '' / Input image WCS Version used
D002SCAL=                 0.05 / Drizzle, pixel size (arcsec) of output image
D002ISCL=                 0.05 / Drizzle, default IDCTAB pixel size(arcsec)
D003VER = 'Callable C-based DRIZZLE Version 0.8 (20th May 2009)' / Drizzle, task
D003GEOM= 'wcs     '           / Drizzle, source of geometric information
D003DATA= 'jcsz32deq_flc.fits[sci,1]' / Drizzle, input data image
D003DEXP=               1307.0 / Drizzle, input image exposure time (s)
D003OUDA= 'jcsz32010_drc.fits' / Drizzle, output data image
D003OUWE= 'jcsz32010_drc_wht.fits' / Drizzle, output weighting image
D003OUCO= 'jcsz32010_drc_ctx.fits' / Drizzle, output context image
D003MASK= 'jcsz32deq_sci1_final_mask.fits' / Drizzle, input weighting image
D003WTSC=                    1 / Drizzle, weighting factor for input image
D003KERN= 'square  '           / Drizzle, form of weight distribution kernel
D003PIXF=                  1.0 / Drizzle, linear size of drop
D003COEF= 'SIP     '           / Drizzle, source of coefficients
D003OUUN= 'cps     '           / Drizzle, units of output image - counts or cps
D003FVAL= 'INDEF   '           / Drizzle, fill value for zero weight output pix
D003WKEY= '' / Input image WCS Version used
D003SCAL=                 0.05 / Drizzle, pixel size (arcsec) of output image
D003ISCL=                 0.05 / Drizzle, default IDCTAB pixel size(arcsec)
D004VER = 'Callable C-based DRIZZLE Version 0.8 (20th May 2009)' / Drizzle, task
D004GEOM= 'wcs     '           / Drizzle, source of geometric information
D004DATA= 'jcsz32deq_flc.fits[sci,2]' / Drizzle, input data image
D004DEXP=               1307.0 / Drizzle, input image exposure time (s)
D004OUDA= 'jcsz32010_drc.fits' / Drizzle, output data image
D004OUWE= 'jcsz32010_drc_wht.fits' / Drizzle, output weighting image
D004OUCO= 'jcsz32010_drc_ctx.fits' / Drizzle, output context image
D004MASK= 'jcsz32deq_sci2_final_mask.fits' / Drizzle, input weighting image
D004WTSC=                    1 / Drizzle, weighting factor for input image
D004KERN= 'square  '           / Drizzle, form of weight distribution kernel
D004PIXF=                  1.0 / Drizzle, linear size of drop
D004COEF= 'SIP     '           / Drizzle, source of coefficients
D004OUUN= 'cps     '           / Drizzle, units of output image - counts or cps
D004FVAL= 'INDEF   '           / Drizzle, fill value for zero weight output pix
D004WKEY= '' / Input image WCS Version used
D004SCAL=                 0.05 / Drizzle, pixel size (arcsec) of output image
D004ISCL=                 0.05 / Drizzle, default IDCTAB pixel size(arcsec)
D005VER = 'Callable C-based DRIZZLE Version 0.8 (20th May 2009)' / Drizzle, task
D005GEOM= 'wcs     '           / Drizzle, source of geometric information
D005DATA= 'jcsz32diq_flc.fits[sci,1]' / Drizzle, input data image
D005DEXP=               1307.0 / Drizzle, input image exposure time (s)
D005OUDA= 'jcsz32010_drc.fits' / Drizzle, output data image
D005OUWE= 'jcsz32010_drc_wht.fits' / Drizzle, output weighting image
D005OUCO= 'jcsz32010_drc_ctx.fits' / Drizzle, output context image
D005MASK= 'jcsz32diq_sci1_final_mask.fits' / Drizzle, input weighting image
D005WTSC=                    1 / Drizzle, weighting factor for input image
D005KERN= 'square  '           / Drizzle, form of weight distribution kernel
D005PIXF=                  1.0 / Drizzle, linear size of drop
D005COEF= 'SIP     '           / Drizzle, source of coefficients
D005OUUN= 'cps     '           / Drizzle, units of output image - counts or cps
D005FVAL= 'INDEF   '           / Drizzle, fill value for zero weight output pix
D005WKEY= '' / Input image WCS Version used
D005SCAL=                 0.05 / Drizzle, pixel size (arcsec) of output image
D005ISCL=                 0.05 / Drizzle, default IDCTAB pixel size(arcsec)
D006VER = 'Callable C-based DRIZZLE Version 0.8 (20th May 2009)' / Drizzle, task
D006GEOM= 'wcs     '           / Drizzle, source of geometric information
D006DATA= 'jcsz32diq_flc.fits[sci,2]' / Drizzle, input data image
D006DEXP=               1307.0 / Drizzle, input image exposure time (s)
D006OUDA= 'jcsz32010_drc.fits' / Drizzle, output data image
D006OUWE= 'jcsz32010_drc_wht.fits' / Drizzle, output weighting image
D006OUCO= 'jcsz32010_drc_ctx.fits' / Drizzle, output context image
D006MASK= 'jcsz32diq_sci2_final_mask.fits' / Drizzle, input weighting image
D006WTSC=                    1 / Drizzle, weighting factor for input image
D006KERN= 'square  '           / Drizzle, form of weight distribution kernel
D006PIXF=                  1.0 / Drizzle, linear size of drop
D006COEF= 'SIP     '           / Drizzle, source of coefficients
D006OUUN= 'cps     '           / Drizzle, units of output image - counts or cps
D006FVAL= 'INDEF   '           / Drizzle, fill value for zero weight output pix
D006WKEY= '' / Input image WCS Version used
D006SCAL=                 0.05 / Drizzle, pixel size (arcsec) of output image
D006ISCL=                 0.05 / Drizzle, default IDCTAB pixel size(arcsec)
D007VER = 'Callable C-based DRIZZLE Version 0.8 (20th May 2009)' / Drizzle, task
D007GEOM= 'wcs     '           / Drizzle, source of geometric information
D007DATA= 'jcsz32dlq_flc.fits[sci,1]' / Drizzle, input data image
D007DEXP=               1307.0 / Drizzle, input image exposure time (s)
D007OUDA= 'jcsz32010_drc.fits' / Drizzle, output data image
D007OUWE= 'jcsz32010_drc_wht.fits' / Drizzle, output weighting image
D007OUCO= 'jcsz32010_drc_ctx.fits' / Drizzle, output context image
D007MASK= 'jcsz32dlq_sci1_final_mask.fits' / Drizzle, input weighting image
D007WTSC=                    1 / Drizzle, weighting factor for input image
D007KERN= 'square  '           / Drizzle, form of weight distribution kernel
D007PIXF=                  1.0 / Drizzle, linear size of drop
D007COEF= 'SIP     '           / Drizzle, source of coefficients
D007OUUN= 'cps     '           / Drizzle, units of output image - counts or cps
D007FVAL= 'INDEF   '           / Drizzle, fill value for zero weight output pix
D007WKEY= '' / Input image WCS Version used
D007SCAL=                 0.05 / Drizzle, pixel size (arcsec) of output image
D007ISCL=                 0.05 / Drizzle, default IDCTAB pixel size(arcsec)
D008VER = 'Callable C-based DRIZZLE Version 0.8 (20th May 2009)' / Drizzle, task
D008GEOM= 'wcs     '           / Drizzle, source of geometric information
D008DATA= 'jcsz32dlq_flc.fits[sci,2]' / Drizzle, input data image
D008DEXP=               1307.0 / Drizzle, input image exposure time (s)
D008OUDA= 'jcsz32010_drc.fits' / Drizzle, output data image
D008OUWE= 'jcsz32010_drc_wht.fits' / Drizzle, output weighting image
D008OUCO= 'jcsz32010_drc_ctx.fits' / Drizzle, output context image
D008MASK= 'jcsz32dlq_sci2_final_mask.fits' / Drizzle, input weighting image
D008WTSC=                    1 / Drizzle, weighting factor for input image
D008KERN= 'square  '           / Drizzle, form of weight distribution kernel
D008PIXF=                  1.0 / Drizzle, linear size of drop
D008COEF= 'SIP     '           / Drizzle, source of coefficients
D008OUUN= 'cps     '           / Drizzle, units of output image - counts or cps
D008FVAL= 'INDEF   '           / Drizzle, fill value for zero weight output pix
D008WKEY= '' / Input image WCS Version used
D008SCAL=                 0.05 / Drizzle, pixel size (arcsec) of output image
D008ISCL=                 0.05 / Drizzle, default IDCTAB pixel size(arcsec)
HISTORY CCD parameters table:
HISTORY   reference table jref$44h1714cj_ccd.fits
HISTORY     inflight
HISTORY     July 2009
HISTORY DARKCORR complete ...
HISTORY   reference image jref$4b70021pj_dkc.fits
HISTORY     INFLIGHT 13/01/2016 10/02/2016
HISTORY     CTE corrected dark for WFC data taken after Jan 13 2016 01:33:37---
HISTORY FLATCORR complete ...
HISTORY   reference image jref$qb12257sj_pfl.fits
HISTORY     INFLIGHT 18/04/2002 - 04/07/2006
HISTORY     F606W step +1 flat w/ mote shifted to -1 step
HISTORY PHOTCORR complete ...
HISTORY   reference table jref$4af1559ij_imp.fits
HISTORY EXPSCORR complete ...
HISTORY ============================================================
HISTORY Header Generation rules:
HISTORY     Rules used to combine headers of input files
HISTORY     Start of rules...
HISTORY ------------------------------------------------------------
HISTORY !VERSION = 1.1
HISTORY !INSTRUMENT = ACS
HISTORY ROOTNAME
HISTORY EXTNAME
HISTORY EXTVER
HISTORY A_0_2
HISTORY A_0_3
HISTORY A_0_4
HISTORY A_1_1
HISTORY A_1_2
HISTORY A_1_3
HISTORY A_2_0
HISTORY A_2_1
HISTORY A_2_2
HISTORY A_3_0
HISTORY A_3_1
HISTORY A_4_0
HISTORY ACQNAME
HISTORY A_ORDER
HISTORY APERTURE
HISTORY ASN_ID
HISTORY ASN_MTYP
HISTORY ASN_TAB
HISTORY ATODCORR
HISTORY ATODGNA
HISTORY ATODGNB
HISTORY ATODGNC
HISTORY ATODGND
HISTORY ATODTAB
HISTORY B_0_2
HISTORY B_0_3
HISTORY B_0_4
HISTORY B_1_1
HISTORY B_1_2
HISTORY B_1_3
HISTORY B_2_0
HISTORY B_2_1
HISTORY B_2_2
HISTORY B_3_0
HISTORY B_3_1
HISTORY B_4_0
HISTORY BADINPDQ
HISTORY BIASCORR
HISTORY BIASFILE
HISTORY BIASLEVA
HISTORY BIASLEVB
HISTORY BIASLEVC
HISTORY BIASLEVD
HISTORY BINAXIS1
HISTORY BINAXIS2
HISTORY BITPIX
HISTORY BLEVCORR
HISTORY B_ORDER
HISTORY BPIXTAB
HISTORY BUNIT
HISTORY CAL_VER
HISTORY CBLKSIZ
HISTORY CCDAMP
HISTORY CCDCHIP
HISTORY CCDGAIN
HISTORY CCDOFSTA
HISTORY CCDOFSTB
HISTORY CCDOFSTC
HISTORY CCDOFSTD
HISTORY CCDTAB
HISTORY CD1_1
HISTORY CD1_2
HISTORY CD2_1
HISTORY CD2_2
HISTORY CENTERA1
HISTORY CENTERA2
HISTORY CFLTFILE
HISTORY COMPTAB
HISTORY COMPTYP
HISTORY CRCORR
HISTORY CRMASK
HISTORY CRPIX1
HISTORY CRPIX2
HISTORY CRRADIUS
HISTORY CRREJTAB
HISTORY CRSIGMAS
HISTORY CRSPLIT
HISTORY CRTHRESH
HISTORY CRVAL1
HISTORY CRVAL2
HISTORY CTE_NAME
HISTORY CTE_VER
HISTORY CTEDIR
HISTORY CTEIMAGE
HISTORY CTYPE1
HISTORY CTYPE2
HISTORY D2IMFILE
HISTORY DARKCORR
HISTORY DARKFILE
HISTORY DATE
HISTORY DATE-OBS
HISTORY DEC_APER
HISTORY DEC_TARG
HISTORY DETECTOR
HISTORY DFLTFILE
HISTORY DGEOFILE
HISTORY DIRIMAGE
HISTORY DQICORR
HISTORY DRIZCORR
HISTORY DRKCFILE
HISTORY EQUINOX
HISTORY ERRCNT
HISTORY EXPEND
HISTORY EXPFLAG
HISTORY EXPNAME
HISTORY EXPSCORR
HISTORY EXPSTART
HISTORY EXPTIME
HISTORY EXTEND
HISTORY FGSLOCK
HISTORY FILENAME
HISTORY FILETYPE
HISTORY FILLCNT
HISTORY FILTER1
HISTORY FILTER2
HISTORY FLASHCUR
HISTORY FLASHDUR
HISTORY FLASHSTA
HISTORY FLATCORR
HISTORY FLSHCORR
HISTORY FLSHFILE
HISTORY FW1ERROR
HISTORY FW1OFFST
HISTORY FW2ERROR
HISTORY FW2OFFST
HISTORY FWSERROR
HISTORY FWSOFFST
HISTORY GCOUNT
HISTORY GLINCORR
HISTORY GLOBLIM
HISTORY GLOBRATE
HISTORY GOODMAX
HISTORY GOODMEAN
HISTORY GOODMIN
HISTORY GRAPHTAB
HISTORY GYROMODE
HISTORY IDCSCALE
HISTORY IDCTAB
HISTORY IDCTHETA
HISTORY IDCV2REF
HISTORY IDCV3REF
HISTORY IMAGETYP
HISTORY IMPHTTAB
HISTORY INHERIT
HISTORY INITGUES
HISTORY INSTRUME
HISTORY JWROTYPE
HISTORY LFLGCORR
HISTORY LFLTFILE
HISTORY LINENUM
HISTORY LOSTPIX
HISTORY LRC_FAIL
HISTORY LRC_XSTS
HISTORY LRFWAVE
HISTORY LTM1_1
HISTORY LTM2_2
HISTORY LTV1
HISTORY LTV2
HISTORY MDECODT1
HISTORY MDECODT2
HISTORY MDRIZSKY
HISTORY MDRIZTAB
HISTORY MEANBLEV
HISTORY MEANDARK
HISTORY MEANEXP
HISTORY MEANFLSH
HISTORY MLINTAB
HISTORY MOFFSET1
HISTORY MOFFSET2
HISTORY MOONANGL
HISTORY MTFLAG
HISTORY NAXIS
HISTORY NAXIS1
HISTORY NAXIS2
HISTORY NCOMBINE
HISTORY NEXTEND
HISTORY NGOODPIX
HISTORY NPOLFILE
HISTORY NRPTEXP
HISTORY OBSMODE
HISTORY OBSTYPE
HISTORY OCD1_1
HISTORY OCD1_2
HISTORY OCD2_1
HISTORY OCD2_2
HISTORY OCRPIX1
HISTORY OCRPIX2
HISTORY OCRVAL1
HISTORY OCRVAL2
HISTORY OCTYPE1
HISTORY OCTYPE2
HISTORY OCX10
HISTORY OCX11
HISTORY OCY10
HISTORY OCY11
HISTORY ONAXIS1
HISTORY ONAXIS2
HISTORY OORIENTA
HISTORY OPUS_VER
HISTORY ORIENTAT
HISTORY ORIGIN
HISTORY OSCNTAB
HISTORY P1_ANGLE
HISTORY P1_CENTR
HISTORY P1_FRAME
HISTORY P1_LSPAC
HISTORY P1_NPTS
HISTORY P1_ORINT
HISTORY P1_PSPAC
HISTORY P1_PURPS
HISTORY P1_SHAPE
HISTORY PA_APER
HISTORY PATTERN1
HISTORY PATTSTEP
HISTORY PA_V3
HISTORY PCOUNT
HISTORY PCTECORR
HISTORY PCTEFRAC
HISTORY PCTENSMD
HISTORY PCTERNCL
HISTORY PCTESHFT
HISTORY PCTESMIT
HISTORY PCTETAB
HISTORY PFLTFILE
HISTORY PHOTBW
HISTORY PHOTCORR
HISTORY PHOTFLAM
HISTORY PHOTMODE
HISTORY PHOTPLAM
HISTORY PHOTTAB
HISTORY PHOTZPT
HISTORY PODPSFF
HISTORY POSTARG1
HISTORY POSTARG2
HISTORY PRIMESI
HISTORY PR_INV_F
HISTORY PR_INV_L
HISTORY PR_INV_M
HISTORY PROCTIME
HISTORY PROPAPER
HISTORY PROPOSID
HISTORY QUALCOM1
HISTORY QUALCOM2
HISTORY QUALCOM3
HISTORY QUALITY
HISTORY RA_APER
HISTORY RA_TARG
HISTORY READNSEA
HISTORY READNSEB
HISTORY READNSEC
HISTORY READNSED
HISTORY REFFRAME
HISTORY REJ_RATE
HISTORY RPTCORR
HISTORY SCALENSE
HISTORY SCLAMP
HISTORY SDQFLAGS
HISTORY SHADCORR
HISTORY SHADFILE
HISTORY SHUTRPOS
HISTORY SIMPLE
HISTORY SIZAXIS1
HISTORY SIZAXIS2
HISTORY SKYSUB
HISTORY SKYSUM
HISTORY SNRMAX
HISTORY SNRMEAN
HISTORY SNRMIN
HISTORY SOFTERRS
HISTORY SPOTTAB
HISTORY STATFLAG
HISTORY STDCFFF
HISTORY STDCFFP
HISTORY SUBARRAY
HISTORY SUN_ALT
HISTORY SUNANGLE
HISTORY TARGNAME
HISTORY TDDALPHA
HISTORY TDDBETA
HISTORY TELESCOP
HISTORY TIME-OBS
HISTORY T_SGSTAR
HISTORY VAFACTOR
HISTORY WCSAXES
HISTORY WCSCDATE
HISTORY WFCMPRSD
HISTORY WCSNAME
HISTORY WRTERR
HISTORY XTENSION
HISTORY WCSNAMEO
HISTORY WCSAXESO
HISTORY LONPOLEO
HISTORY LATPOLEO
HISTORY RESTFRQO
HISTORY RESTWAVO
HISTORY CD1_1O
HISTORY CD1_2O
HISTORY CD2_1O
HISTORY CD2_2O
HISTORY CDELT1O
HISTORY CDELT2O
HISTORY CRPIX1O
HISTORY CRPIX2O
HISTORY CRVAL1O
HISTORY CRVAL2O
HISTORY CTYPE1O
HISTORY CTYPE2O
HISTORY CUNIT1O
HISTORY CUNIT2O
HISTORY APERTURE  APERTURE  multi
HISTORY DETECTOR  DETECTOR  first
HISTORY EXPEND    EXPEND    max
HISTORY EXPSTART  EXPSTART  min
HISTORY EXPTIME   TEXPTIME  sum
HISTORY EXPTIME   EXPTIME   sum
HISTORY FILTER1   FILTER1   multi
HISTORY FILTER2   FILTER2   multi
HISTORY GOODMAX   GOODMAX   max
HISTORY GOODMEAN  GOODMEAN  mean
HISTORY GOODMIN   GOODMIN   min
HISTORY INHERIT   INHERIT   first # maintain IRAF compatibility
HISTORY INSTRUME  INSTRUME  first
HISTORY LRFWAVE   LRFWAVE   first
HISTORY NCOMBINE  NCOMBINE  sum
HISTORY MDRIZSKY  MDRIZSKY  mean
HISTORY PHOTBW    PHOTBW    mean
HISTORY PHOTFLAM  PHOTFLAM  mean
HISTORY PHOTMODE  PHOTMODE  first
HISTORY PHOTPLAM  PHOTPLAM  mean
HISTORY PHOTZPT   PHOTZPT   mean
HISTORY PROPOSID  PROPOSID  first
HISTORY SNRMAX    SNRMAX    max
HISTORY SNRMEAN   SNRMEAN   mean
HISTORY SNRMIN    SNRMIN    min
HISTORY TARGNAME  TARGNAME  first
HISTORY TELESCOP  TELESCOP  first
HISTORY WCSNAME   WCSNAME   first
HISTORY ATODCORR  ATODCORR  multi
HISTORY ATODGNA   ATODGNA   first
HISTORY ATODGNB   ATODGNB   first
HISTORY ATODGNC   ATODGNC   first
HISTORY ATODGND   ATODGND   first
HISTORY ATODTAB   ATODTAB   multi
HISTORY BADINPDQ  BADINPDQ  sum
HISTORY BIASCORR  BIASCORR  multi
HISTORY BIASFILE  BIASFILE  multi
HISTORY BLEVCORR  BLEVCORR  multi
HISTORY BPIXTAB   BPIXTAB   multi
HISTORY CCDCHIP   CCDCHIP   first
HISTORY CCDGAIN   CCDGAIN   first
HISTORY CCDOFSTA  CCDOFSTA  first
HISTORY CCDOFSTB  CCDOFSTB  first
HISTORY CCDOFSTC  CCDOFSTC  first
HISTORY CCDOFSTD  CCDOFSTD  first
HISTORY CCDTAB      CCDTAB    multi
HISTORY CFLTFILE  CFLTFILE  multi
HISTORY COMPTAB   COMPTAB   multi
HISTORY CRCORR      CRCORR    multi
HISTORY CRMASK      CRMASK    first
HISTORY CRRADIUS  CRRADIUS  first
HISTORY CRREJTAB  CRREJTAB  multi
HISTORY CRSPLIT   CRSPLIT   first
HISTORY CRTHRESH  CRTHRESH  first
HISTORY CTEDIR      CTEDIR    multi
HISTORY CTEIMAGE  CTEIMAGE  first
HISTORY DARKCORR  DARKCORR  multi
HISTORY DARKFILE  DARKFILE  multi
HISTORY DATE-OBS  DATE-OBS  first
HISTORY DEC_APER  DEC_APER  first
HISTORY DFLTFILE  DFLTFILE  multi
HISTORY DGEOFILE  DGEOFILE  multi
HISTORY DIRIMAGE  DIRIMAGE  multi
HISTORY DQICORR   DQICORR   multi
HISTORY DRIZCORR  DRIZCORR  multi
HISTORY EXPFLAG   EXPFLAG   multi
HISTORY EXPSCORR  EXPSCORR  multi
HISTORY FGSLOCK   FGSLOCK   multi
HISTORY FLASHCUR  FLASHCUR  multi
HISTORY FLASHDUR  FLASHDUR  first
HISTORY FLASHSTA  FLASHSTA  first
HISTORY FLATCORR  FLATCORR  multi
HISTORY FLSHCORR  FLSHCORR  multi
HISTORY FLSHFILE  FLSHFILE  multi
HISTORY FW1ERROR  FW1ERROR  multi
HISTORY FW1OFFST  FW1OFFST  first
HISTORY FW2ERROR  FW2ERROR  multi
HISTORY FW2OFFST  FW2OFFST  first
HISTORY FWSERROR  FWSERROR  multi
HISTORY FWSOFFST  FWSOFFST  first
HISTORY GRAPHTAB  GRAPHTAB  multi
HISTORY GYROMODE  GYROMODE  multi
HISTORY IDCTAB      IDCTAB    multi
HISTORY IMAGETYP  IMAGETYP  first
HISTORY IMPHTTAB  IMPHTTAB  multi
HISTORY LFLGCORR  LFLGCORR  multi
HISTORY LFLTFILE  LFLTFILE  multi
HISTORY LTM1_1    LTM1_1    float_one
HISTORY LTM2_2    LTM2_2    float_one
HISTORY MDRIZTAB  MDRIZTAB  multi
HISTORY MEANEXP   MEANEXP   first
HISTORY MOONANGL  MOONANGL  first
HISTORY NRPTEXP   NRPTEXP   first
HISTORY OBSMODE   OBSMODE   multi
HISTORY OBSTYPE   OBSTYPE   first
HISTORY OSCNTAB   OSCNTAB   multi
HISTORY P1_ANGLE  P1_ANGLE  first
HISTORY P1_CENTR  P1_CENTR  multi
HISTORY P1_FRAME  P1_FRAME  multi
HISTORY P1_LSPAC  P1_LSPAC  first
HISTORY P1_NPTS   P1_NPTS   first
HISTORY P1_ORINT  P1_ORINT  first
HISTORY P1_PSPAC  P1_PSPAC  first
HISTORY P1_PURPS  P1_PURPS  multi
HISTORY P1_SHAPE  P1_SHAPE  multi
HISTORY P2_ANGLE  P2_ANGLE  first
HISTORY P2_CENTR  P2_CENTR  multi
HISTORY P2_FRAME  P2_FRAME  multi
HISTORY P2_LSPAC  P2_LSPAC  first
HISTORY P2_NPTS   P2_NPTS   first
HISTORY P2_ORINT  P2_ORINT  first
HISTORY P2_PSPAC  P2_PSPAC  first
HISTORY P2_PURPS  P2_PURPS  multi
HISTORY P2_SHAPE  P2_SHAPE  multi
HISTORY PATTERN1  PATTERN1  multi
HISTORY PATTERN2  PATTERN2  multi
HISTORY PATTSTEP  PATTSTEP  first
HISTORY PHOTCORR  PHOTCORR  multi
HISTORY PHOTTAB   PHOTTAB   multi
HISTORY POSTARG1  POSTARG1  first
HISTORY POSTARG2  POSTARG2  first
HISTORY PRIMESI   PRIMESI   multi
HISTORY PROPAPER  PROPAPER  multi
HISTORY RA_APER   RA_APER   first
HISTORY READNSEA  READNSEA  first
HISTORY READNSEB  READNSEB  first
HISTORY READNSEC  READNSEC  first
HISTORY READNSED  READNSED  first
HISTORY REJ_RATE  REJ_RATE  first
HISTORY SCALENSE  SCALENSE  first
HISTORY SCLAMP      SCLAMP    multi
HISTORY SHADCORR  SHADCORR  multi
HISTORY SHADFILE  SHADFILE  multi
HISTORY SHUTRPOS  SHUTRPOS  multi
HISTORY SKYSUB      SKYSUB    multi
HISTORY SKYSUM      SKYSUM    sum
HISTORY SPOTTAB   SPOTTAB   multi
HISTORY SUBARRAY  SUBARRAY  first
HISTORY SUNANGLE  SUNANGLE  first
HISTORY SUN_ALT   SUN_ALT   first
HISTORY WRTERR      WRTERR    multi
HISTORY ------------------------------------------------------------
HISTORY     End of rules...
HISTORY ============================================================
HISTORY AstroDrizzle processing performed using:
HISTORY     AstroDrizzle Version 3.3.1
HISTORY     PyFITS Version 4.3.1
HISTORY     Numpy Version 1.21.2


Figure 2.2: WFC apertures Compared with the V2/V3 Reference Frame


In pipeline data products, WFC2 is displayed below WFC1 (along the y-axis) and is therefore designated as extension 1. To display the science image for WFC1, the user must specify the extension fits['SCI',2] or fits[4]. The WFC1 error and data quality arrays are specified as ['ERR',2] (or [5]) and ['DQ',2] (or [6]), respectively. The readout amplifiers (A,B,C,D) are indicated on the figure. Refer back to Figure 2.1 for the full list of extensions by detector, noting that some additional variable number of astrometric headerlet extensions may now also be present for ACS/WFC Hubble Advanced Products (HAP) images.


1 Simple Image Polynomial (SIP) convention (Shupe et. al 2005). This convention has been in use for describing the geometry of Spitzer Space Telescope images, and it has become a FITS standard. Representing image distortion corrections using the SIP convention improves the handling of image combination and astrometric information.
