NUV Grating G225M

«Previous Next»

Description

The G225M grating samples wavelengths between about 2100 and 2500 Å. The grating has 13 central wavelength settings.

Special Considerations

G225M spectra consist of three 35 Å stripes separated by two 64 Å gaps. To acquire a complete spectrum requires the use of six central-wavelength settings.


GratingResolving Power R = λ/ΔλDispersion (mÅ pixel−1)Spatial Resolution (milliarcsec pixel−1)Plate Scale (milliarcsec pixel−1)FP-POS Step (Å step−1)
Disp. AxisCross-Disp. Axis
G225M20,000–24,0003358 ± 224.323.11.7

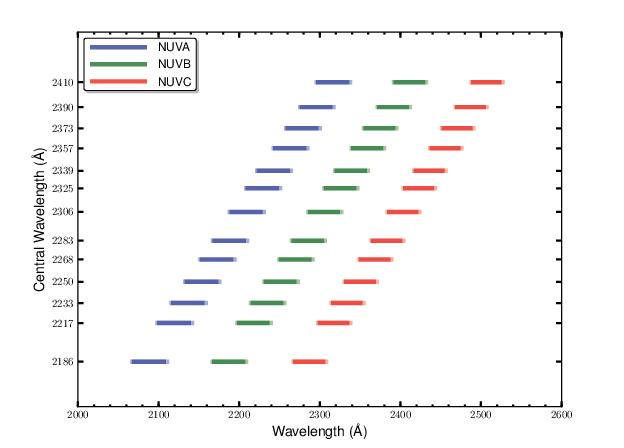

Figure 13.20: Wavelength Ranges for the G225M Grating.

Dark lines represent wavelengths sampled by all four FP-POS positions.

G225M Point-Source Sensitivity

Table 13.9: G225M Point-Source Sensitivity for PSA.

Wavelength (Å)ThroughputSensitivity (counts pixel−1 sec−1 per erg cm−2 sec−1 Å−1)Effective Area (cm2)
20705.242e−03

8.5e+11

2.37e+02
21005.949e−03

9.8e+11

2.69e+02
21507.366e−03

1.2e+12

3.33e+02
22008.986e−03

1.5e+12

4.07e+02
22501.036e−02

1.8e+12

4.68e+02
23001.151e−02

2.1e+12

5.21e+02
23501.189e−02

2.2e+12

5.38e+02
24001.215e−02

2.3e+12

5.50e+02
24501.217e−02

2.3e+12

5.51e+02
25001.129e−02

2.4e+12

5.56e+02
25271.238e−02

2.4e+12

5.60e+02

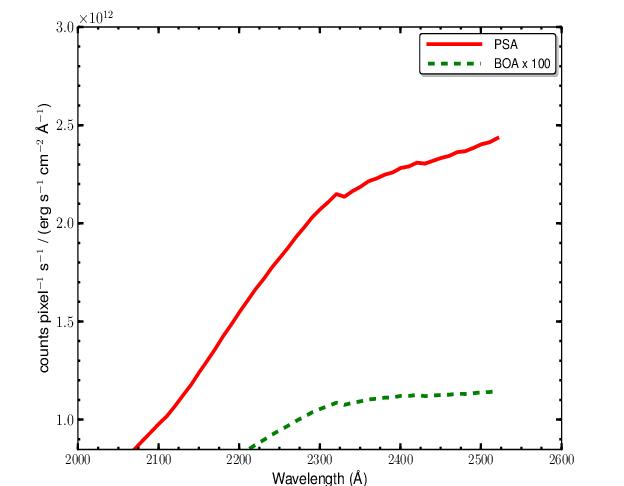

Figure 13.21: G225M Point-Source Sensitivity for PSA and BOA.


G225M Signal-to-Noise Ratio

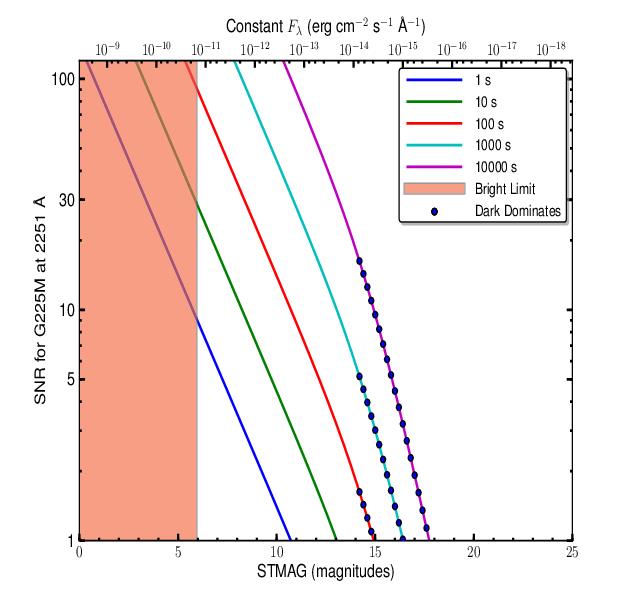

Figure 13.22: Point-Source Signal-to-Noise as a Function of STMAG for G225M.

The top axis displays constant Fλ values corresponding to the STMAG units (V+STMAGλ) on the bottom axis. Recall that STMAG = 0 is equivalent to Fλ = 3.63E−9 erg cm−2 s−1 Å−1. Colors refer to exposure times in seconds. The edge of the shaded area corresponds to the bright-object screening limit. Use of the PSA is assumed.
