HRC F250W
Description
Near-UV filter.

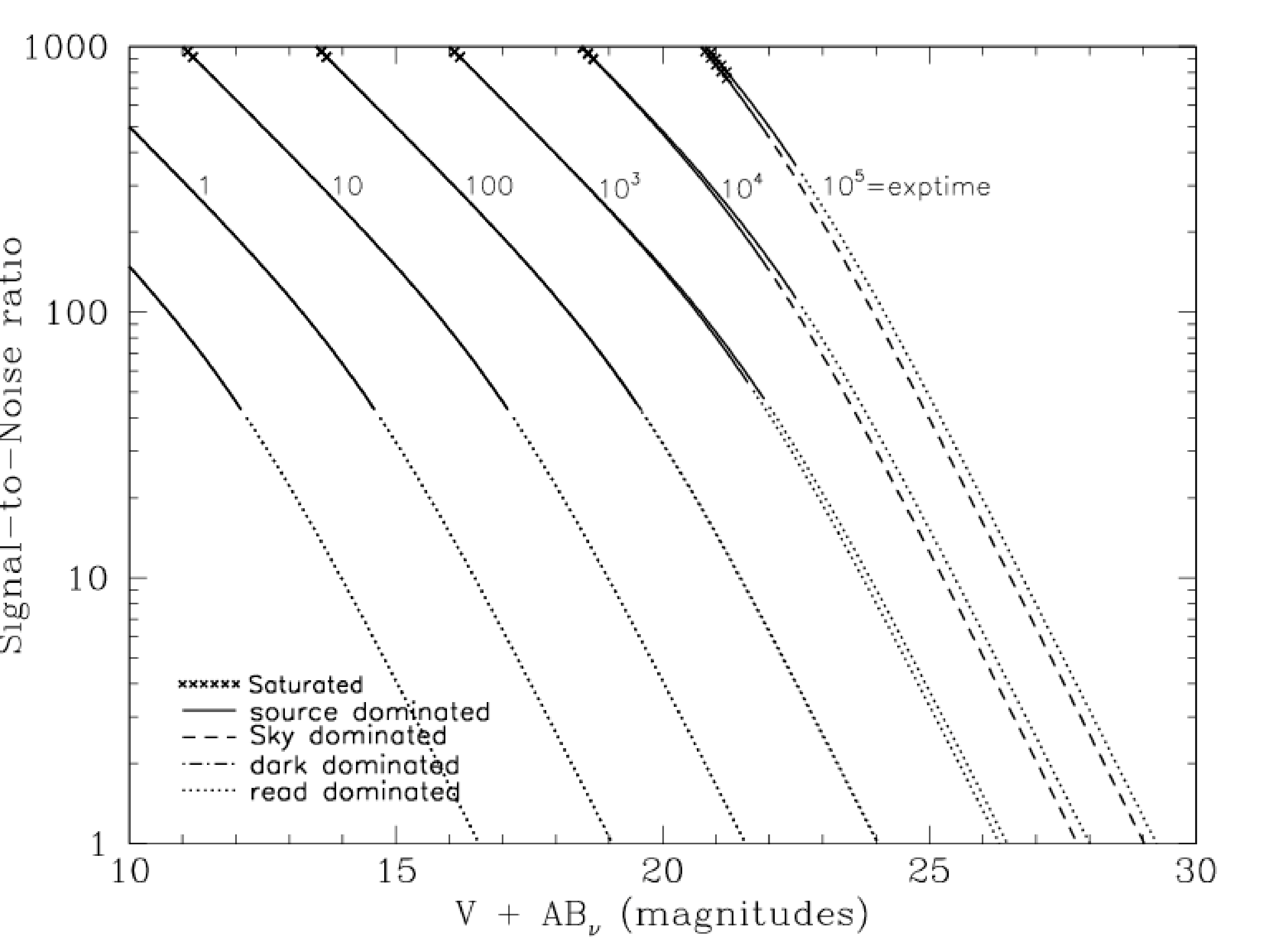

Figure 10.47: Point Source S/N vs. V+ABν for the HRC/F250W filter. Top curves are for low sky; bottom curves are for average sky.

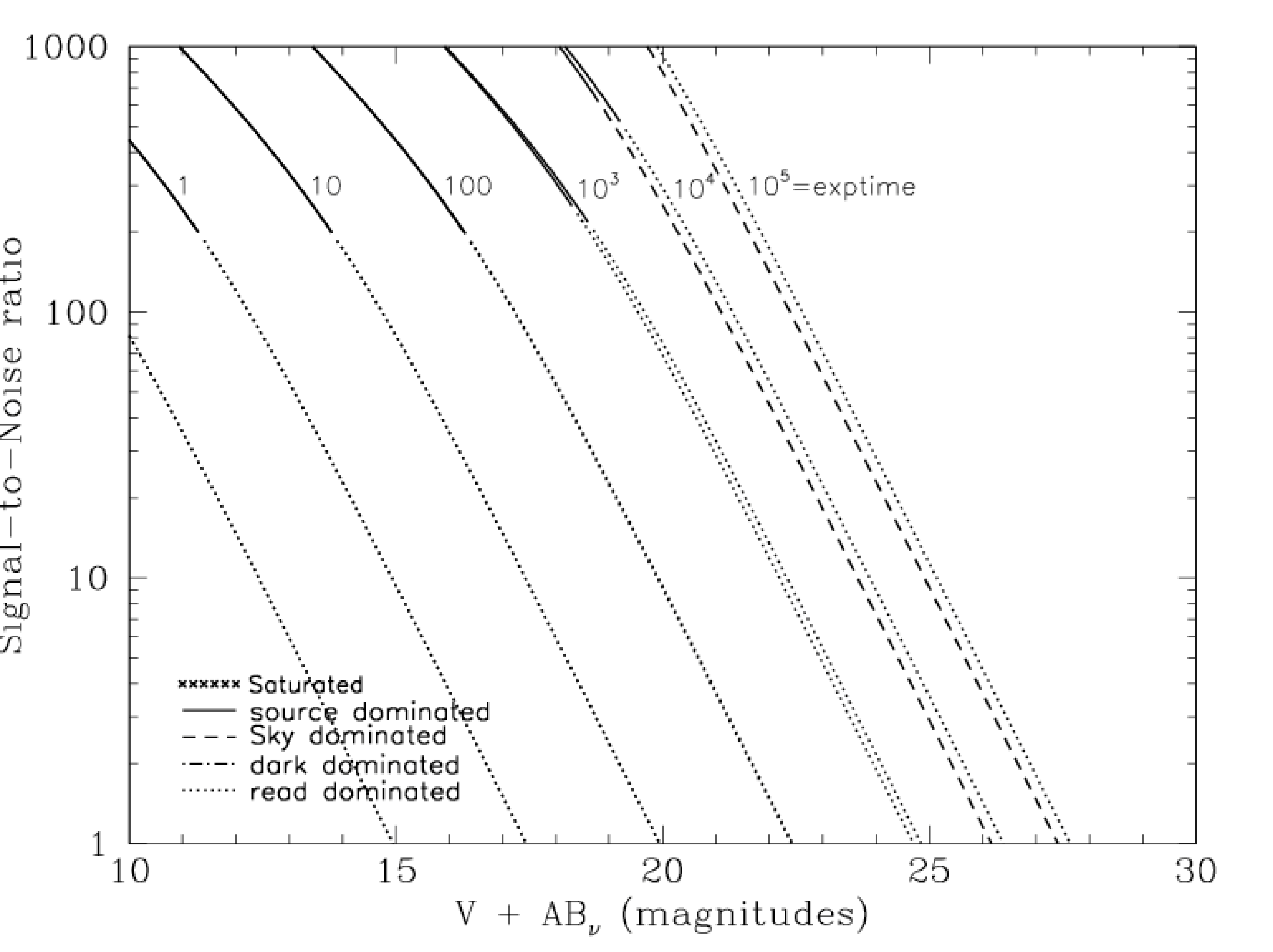

Figure 10.48: Extended Source S/N vs. V+ABν for the HRC/F250W filter. Top curves are for low sky and bottom curves are for average sky for a 1 arcsec2 area.
-
