WFC F502N
Description
OIII filter.

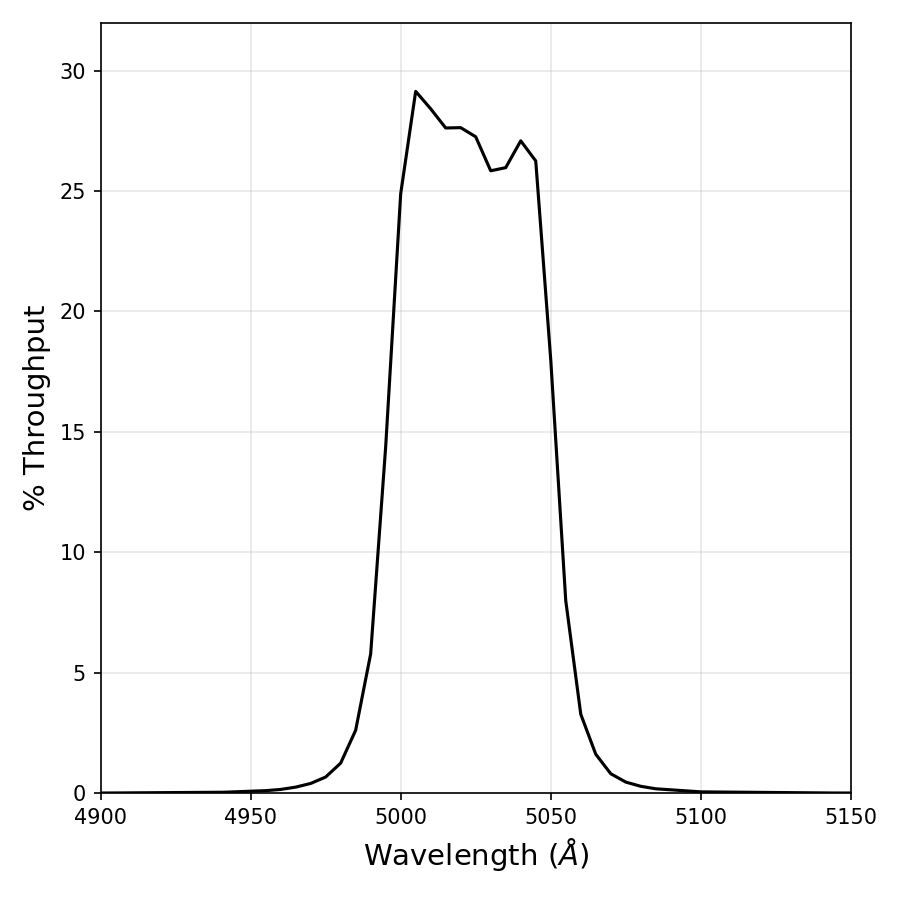

Figure 10.7: Integrated system throughput for WFC/F502N.

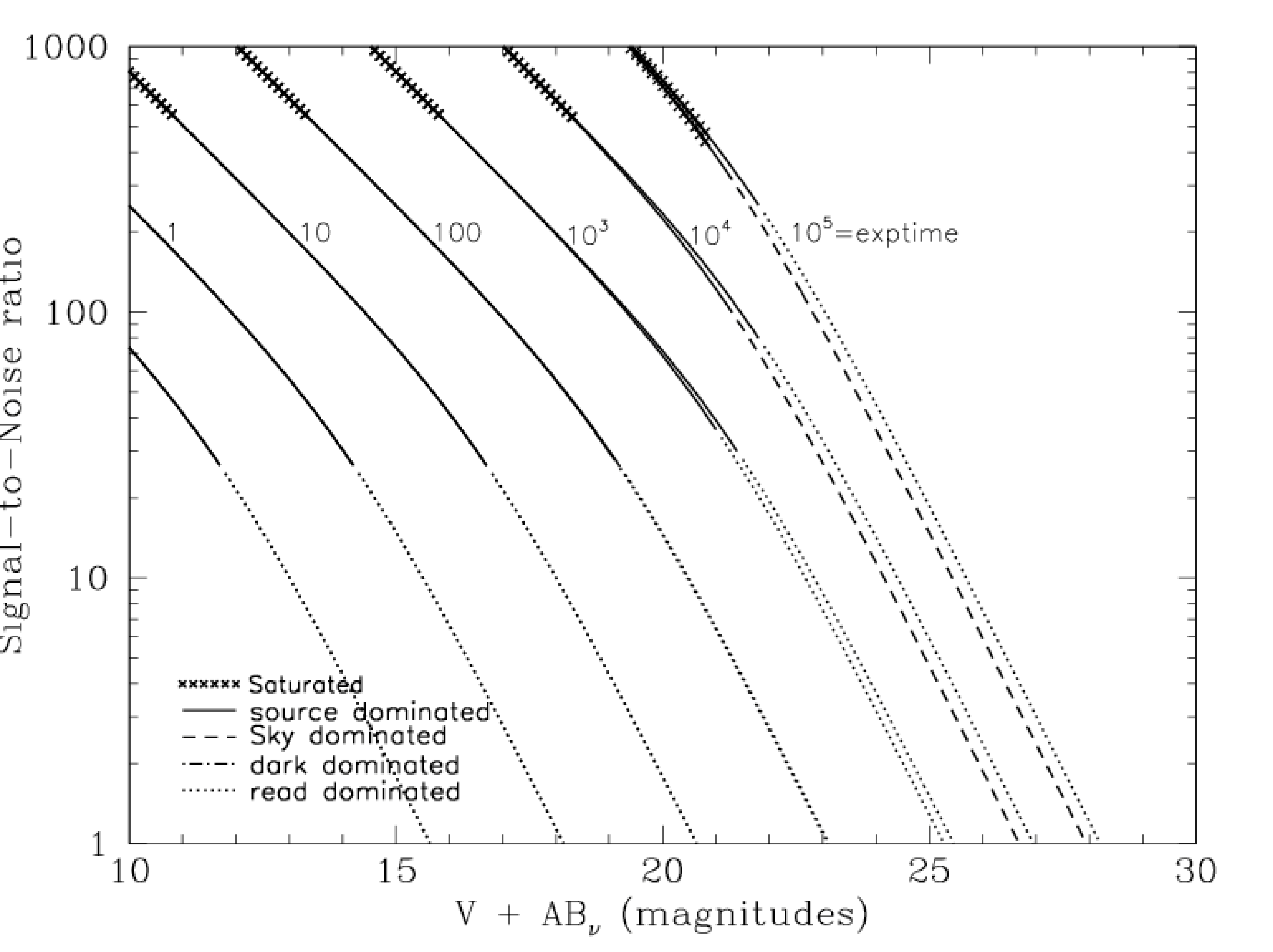

Figure 10.8: Point source S/N vs. V+ABν for the WFC/F502N filter. Top curves are for low sky; bottom curves are for average sky.

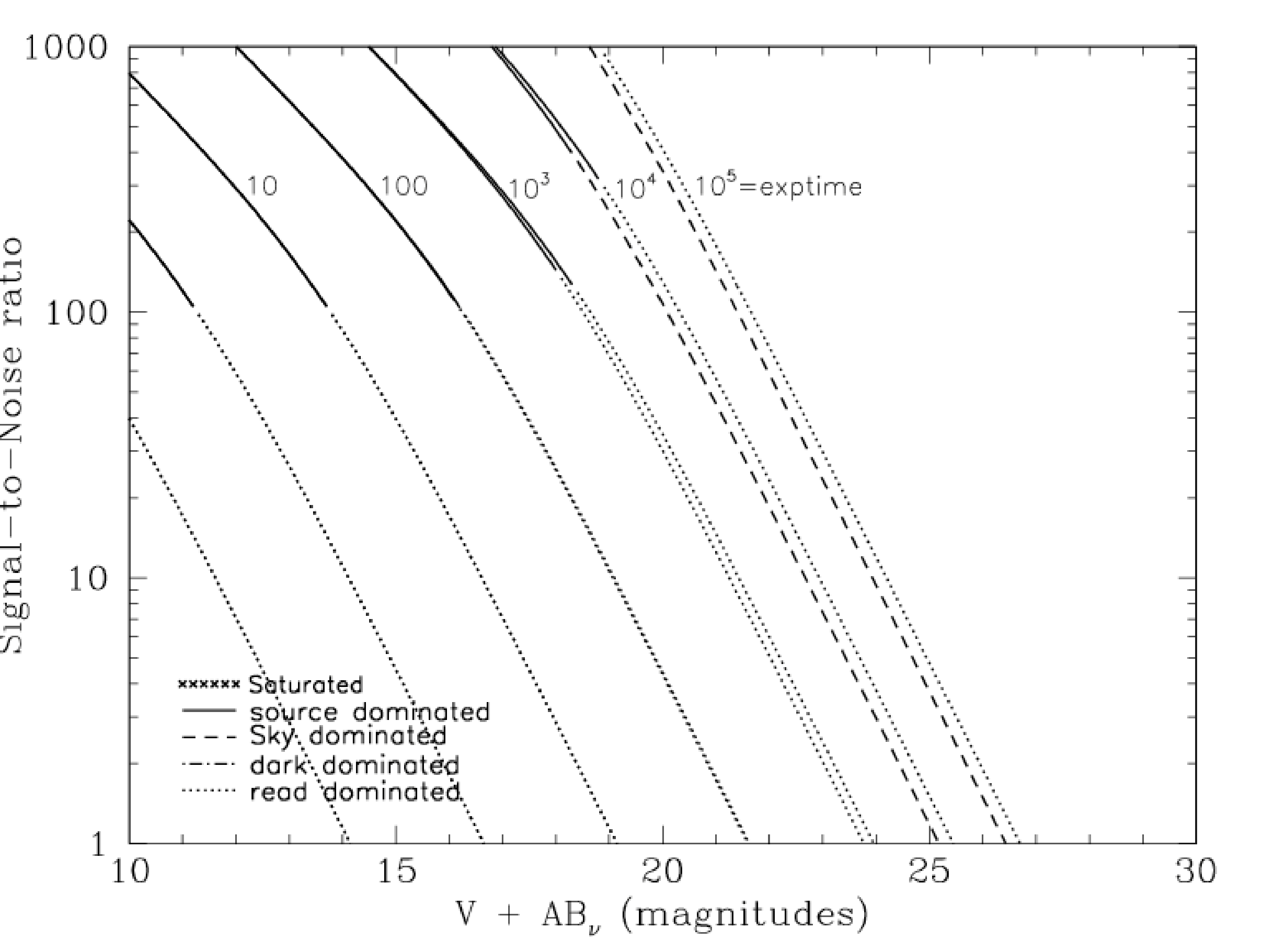

Figure 10.9: Extended source S/N vs. V+ABν for the WFC/F502N filter. Top curves are for low sky and bottom curves are for average sky for a 1 arcsec2 area.
-
