WFC F625W
Description
Sloan Digital Sky Survey r filter.

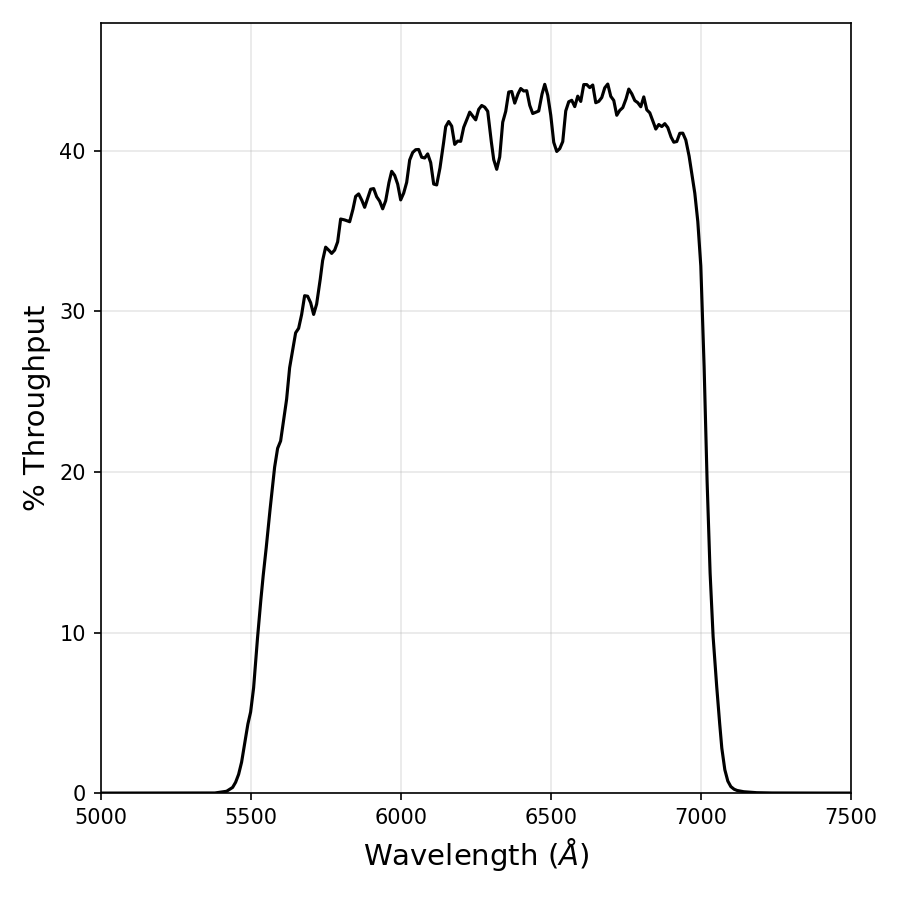

Figure 10.19: Integrated system throughput for WFC/F625W.

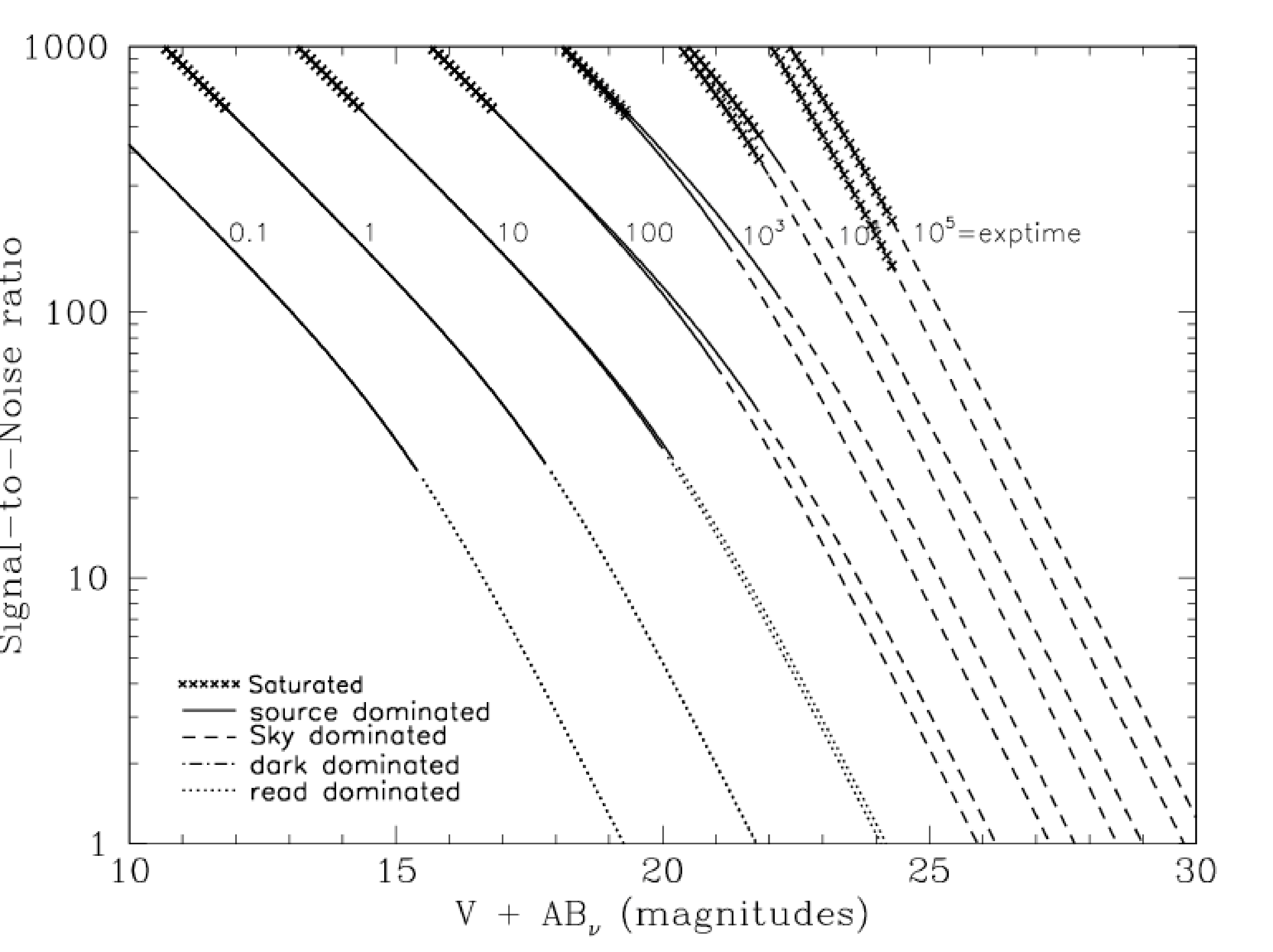

Figure 10.20: Point source S/N vs. V+ABν for the WFC/F625W filter. Top curves are for low sky; bottom curves are for average sky.

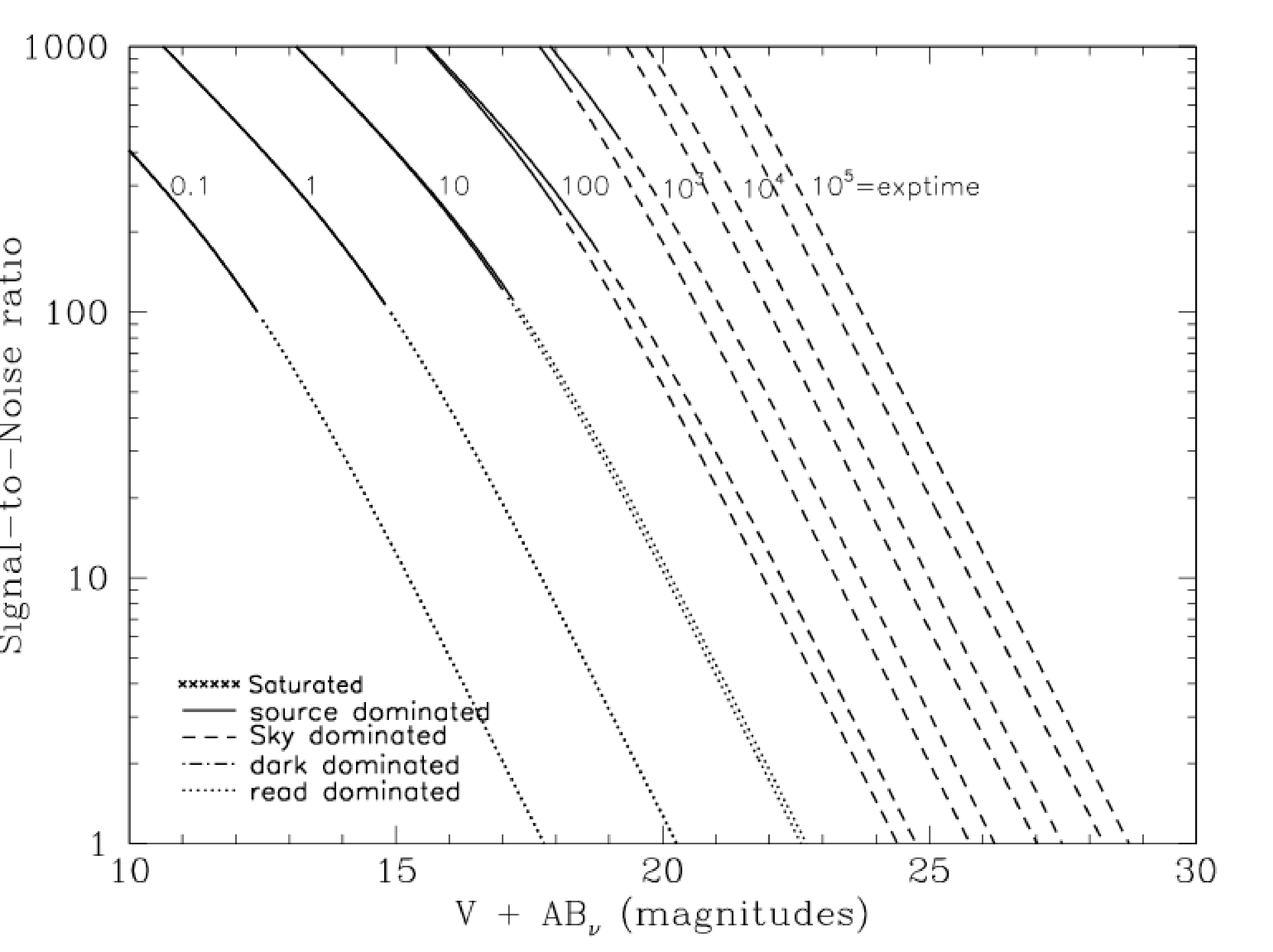

Figure 10.21: Extended source S/N vs. V+ABν for the WFC/F625W filter. Top curves are for low sky and bottom curves are for average sky for a 1 arcsec2 area.
-
