HRC F475W
Description
Sloan Digital Sky Survey g filter.

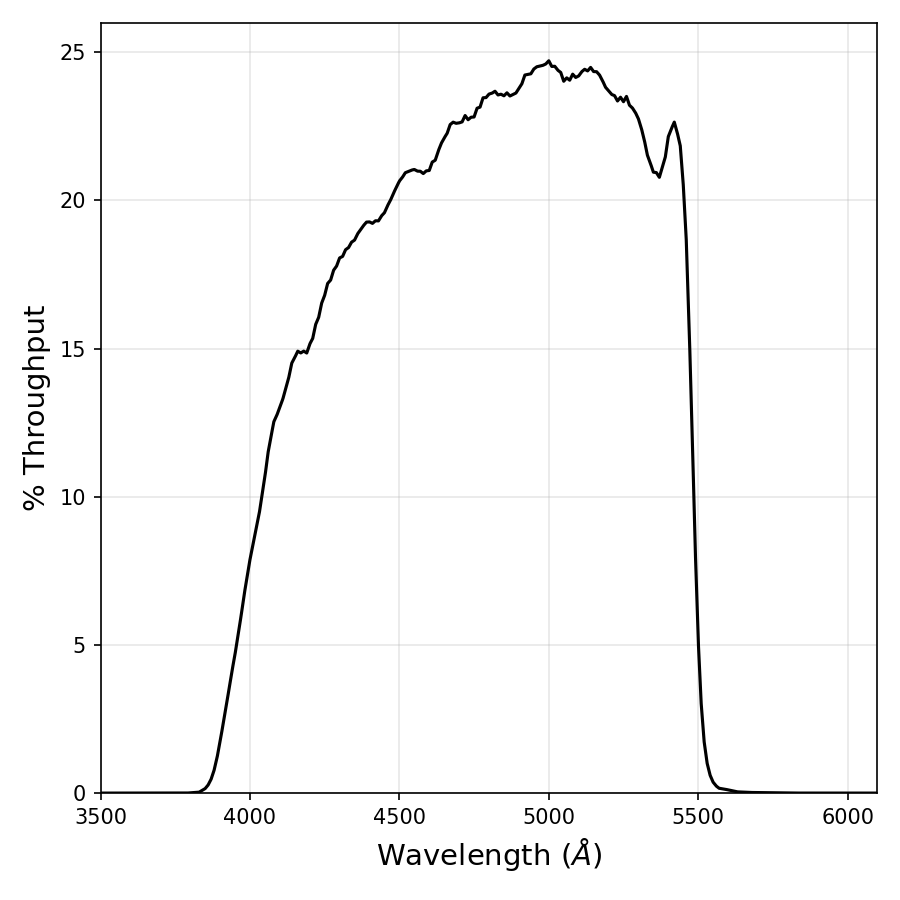

Figure 10.58: Integrated system throughput for HRC/F475W.

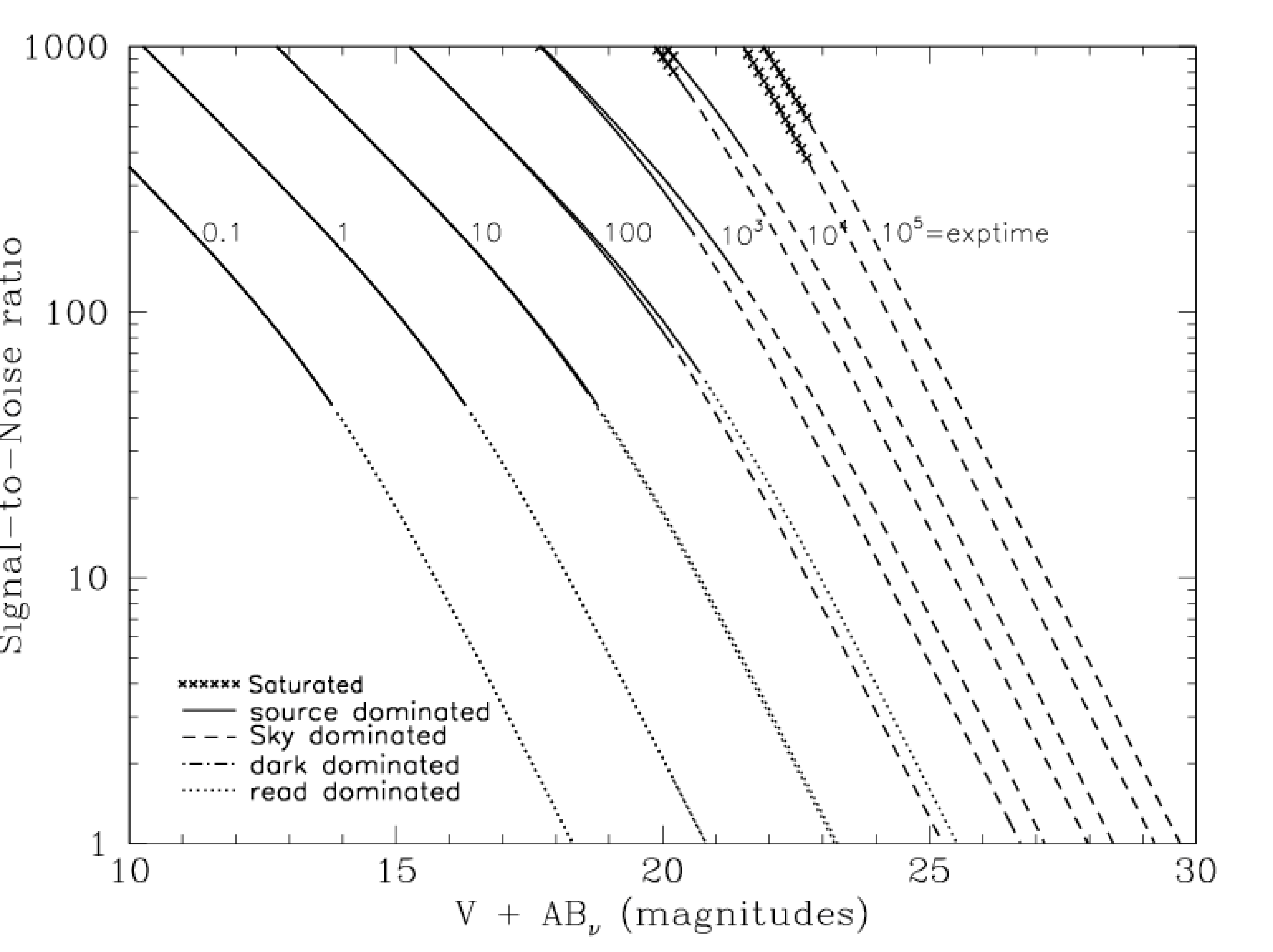

Figure 10.59: Point source S/N vs. V+ABν for the HRC/F475W filter. Top curves are for low sky; bottom curves are for average sky.

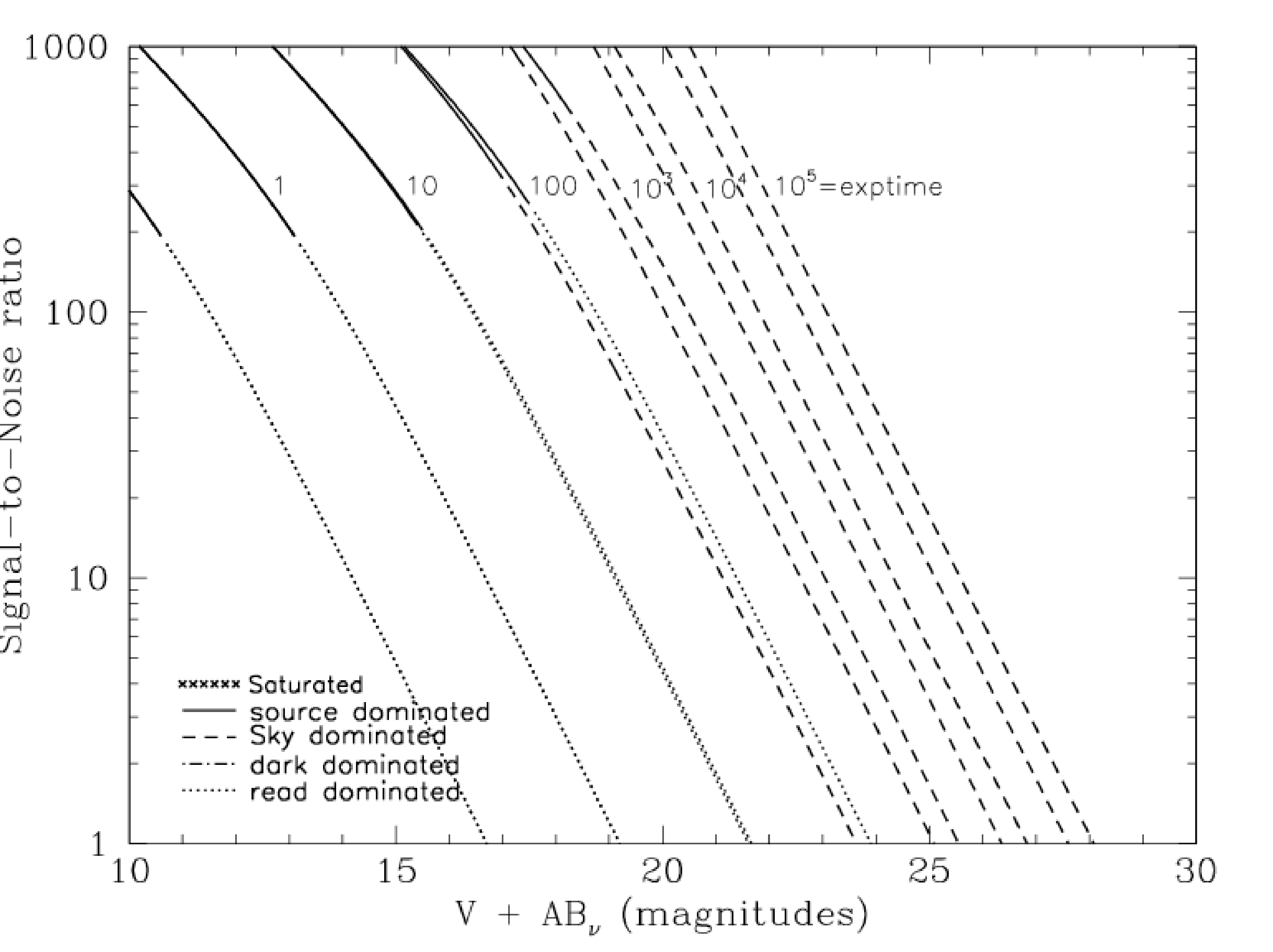

Figure 10.60: Extended source S/N vs. V+ABν for the HRC/F475W filter. Top curves are for low sky and bottom curves are for average sky for a 1 arcsec2 area.
-
