HRC F606W
Description
Broad V filter.

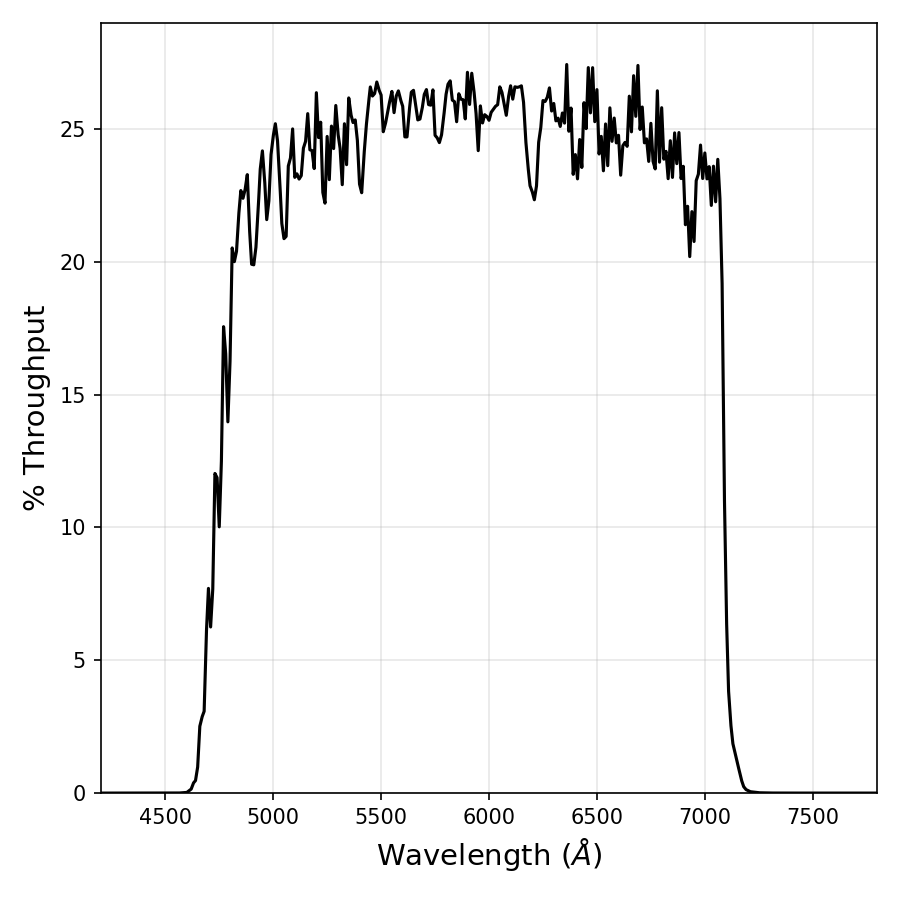

Figure 10.70: Integrated system throughput for HRC/F606W.

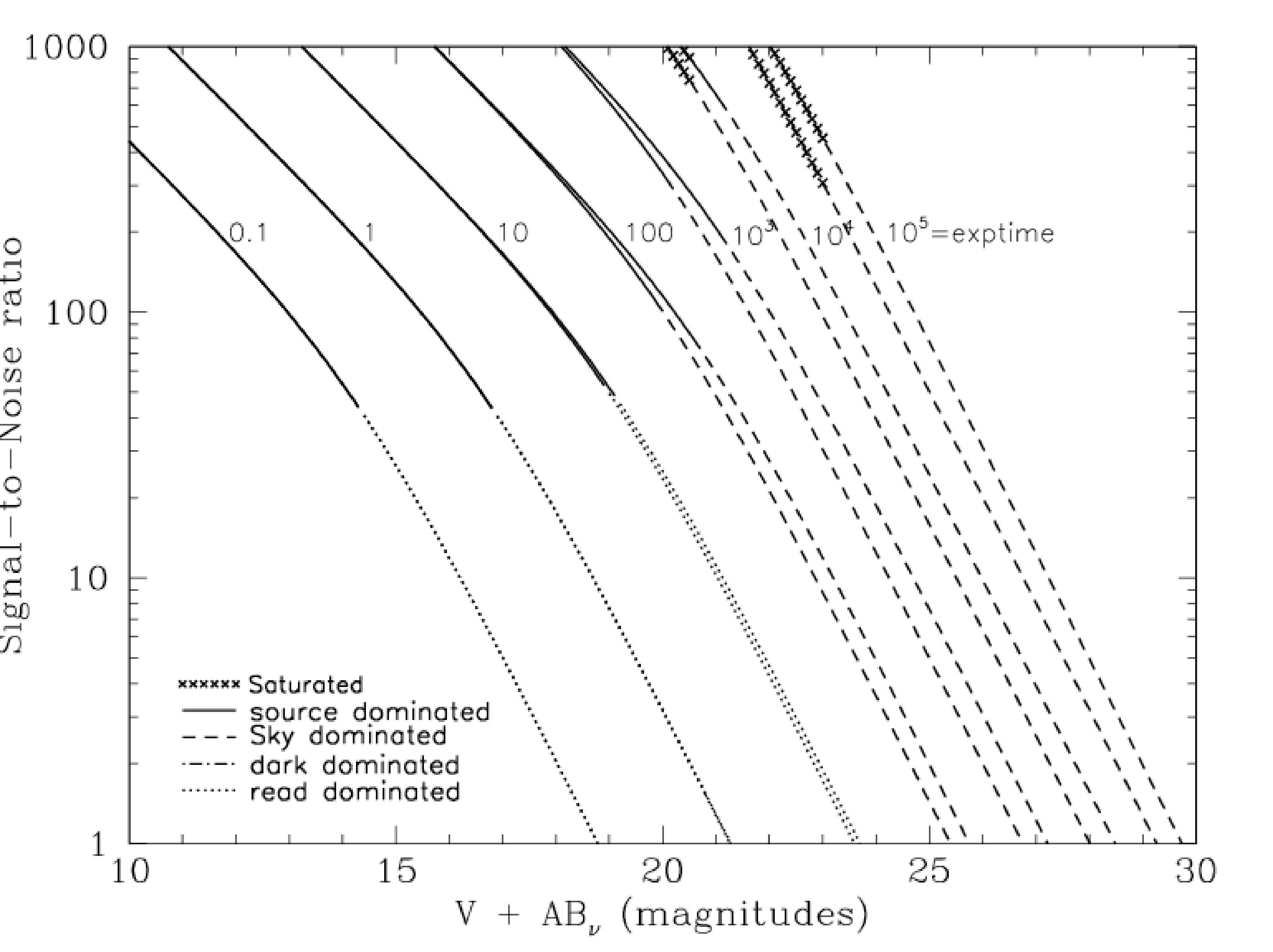

Figure 10.71: Point source S/N vs. V+ABν for the HRC/F606W filter. Top curves are for low sky; bottom curves are for average sky.

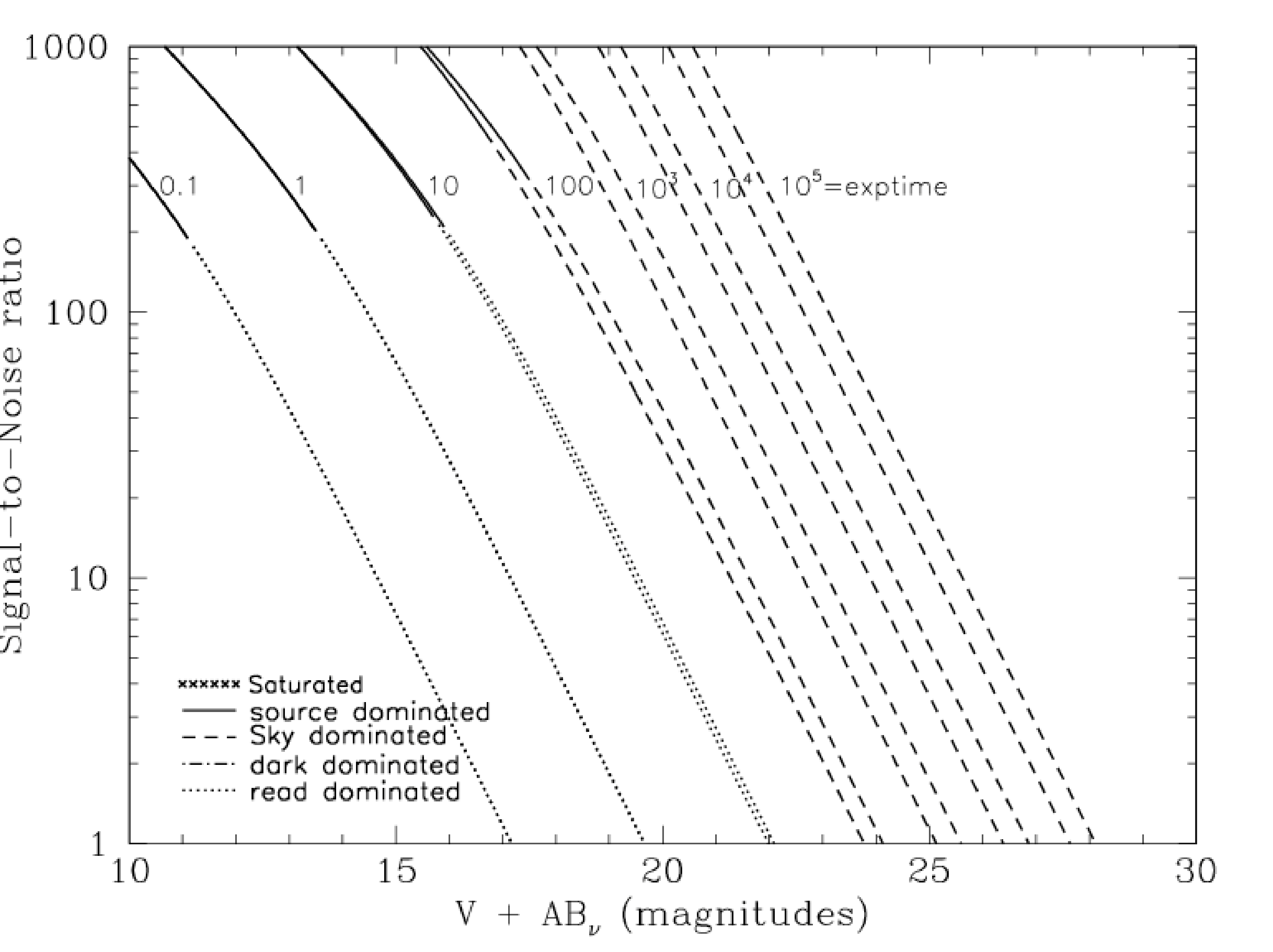

Figure 10.72: Extended source S/N vs. V+ABν for the HRC/F606W filter. Top curves are for low sky and bottom curves are for average sky for a 1 arcsec2 area.
-
