HRC F658N
Description
Hα filter.

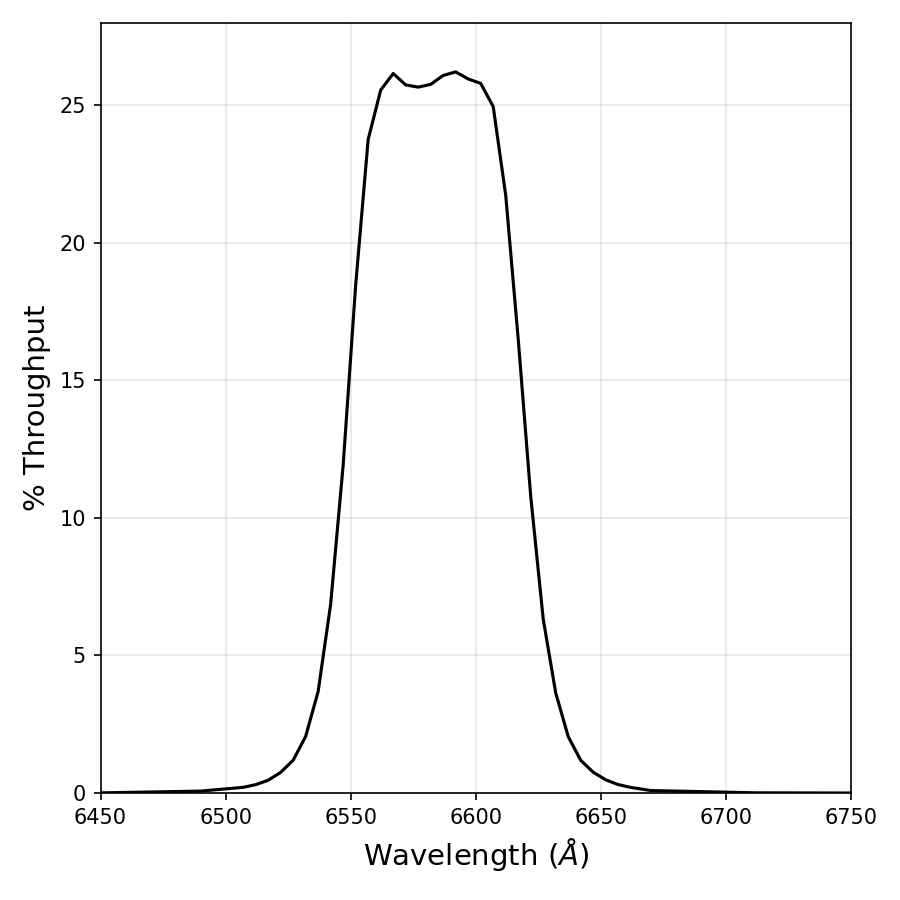

Figure 10.76: Integrated system throughput for HRC/F658N.

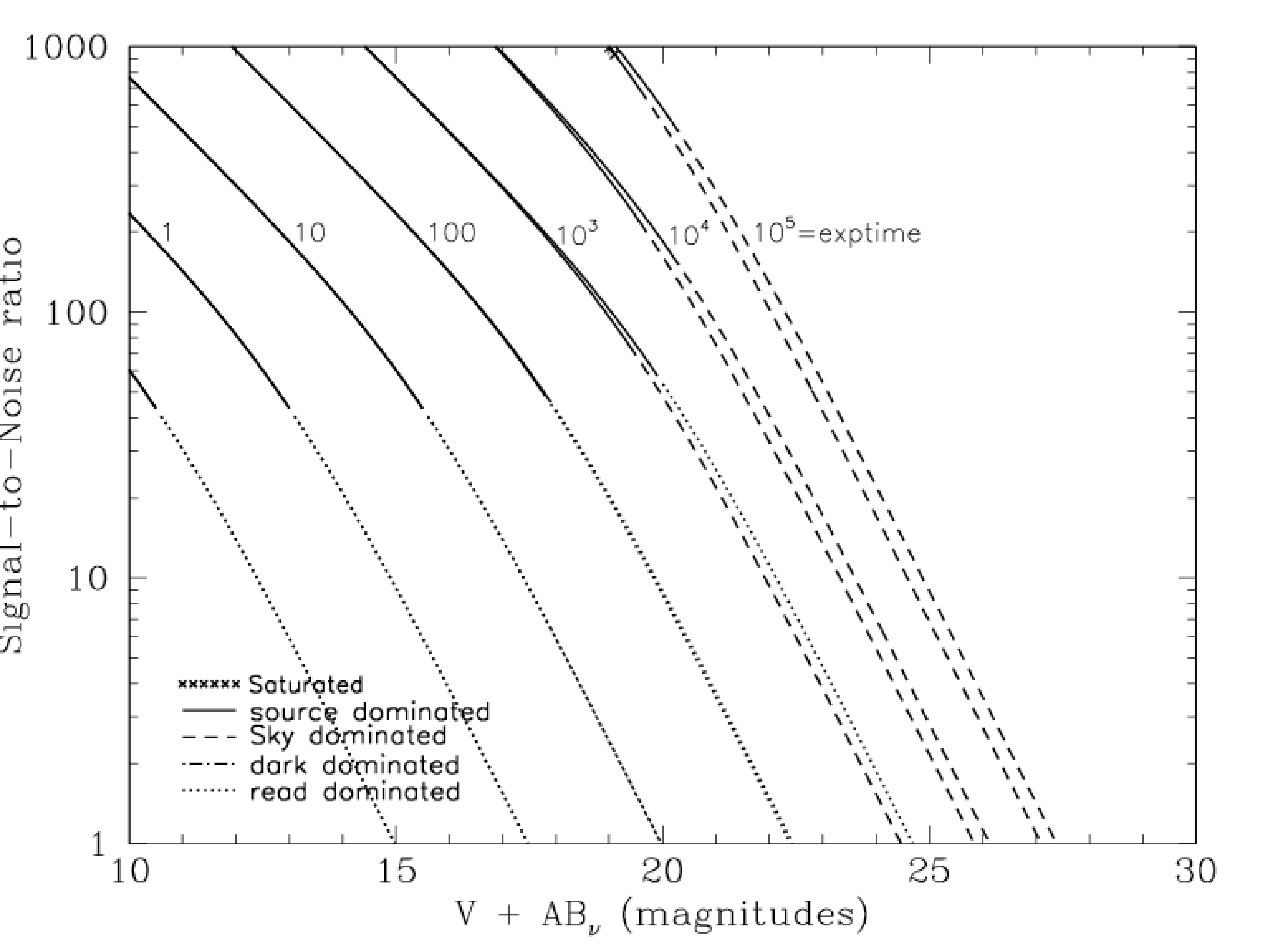

Figure 10.77: Point source S/N vs. V+ABν for the HRC/F658N filter. Top curves are for low sky; bottom curves are for average sky.

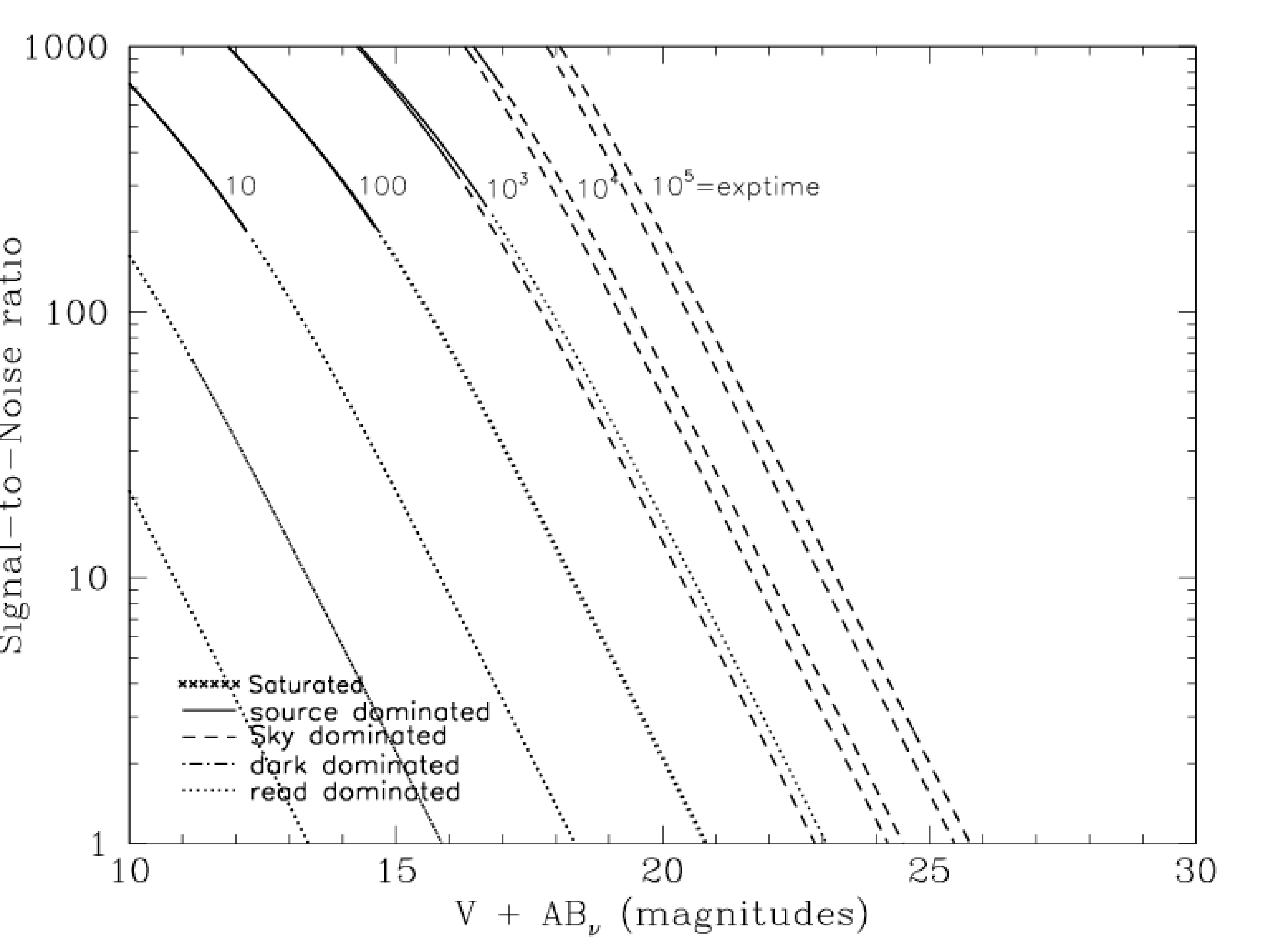

Figure 10.78: Extended source S/N vs. V+ABν for the HRC/F658N filter. Top curves are for low sky and bottom curves are for average sky for a 1 arcsec2 area.
-
