HRC F555W
Description
Johnson V filter.

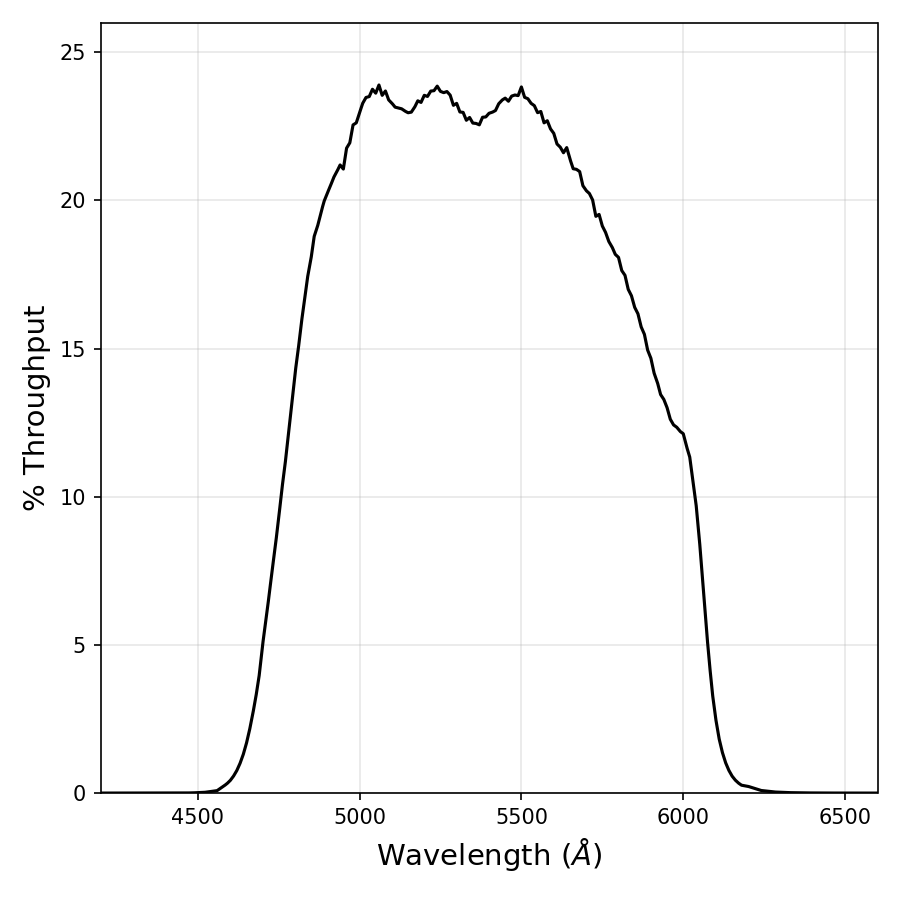

Figure 10.67: Integrated system throughput for HRC/F555W.

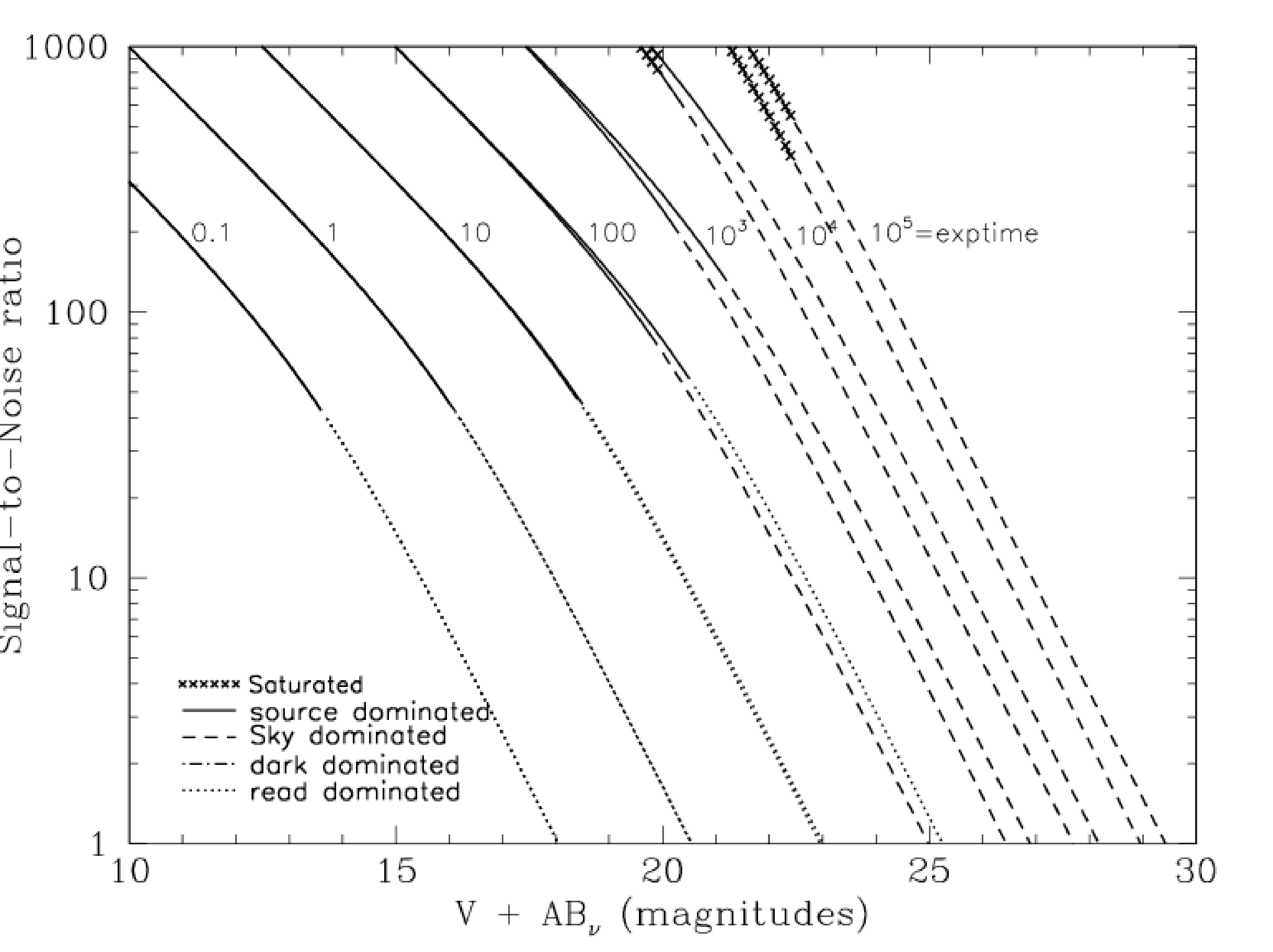

Figure 10.68: Point source S/N vs. V+ABν for the HRC/F555W filter. Top curves are for low sky; bottom curves are for average sky.

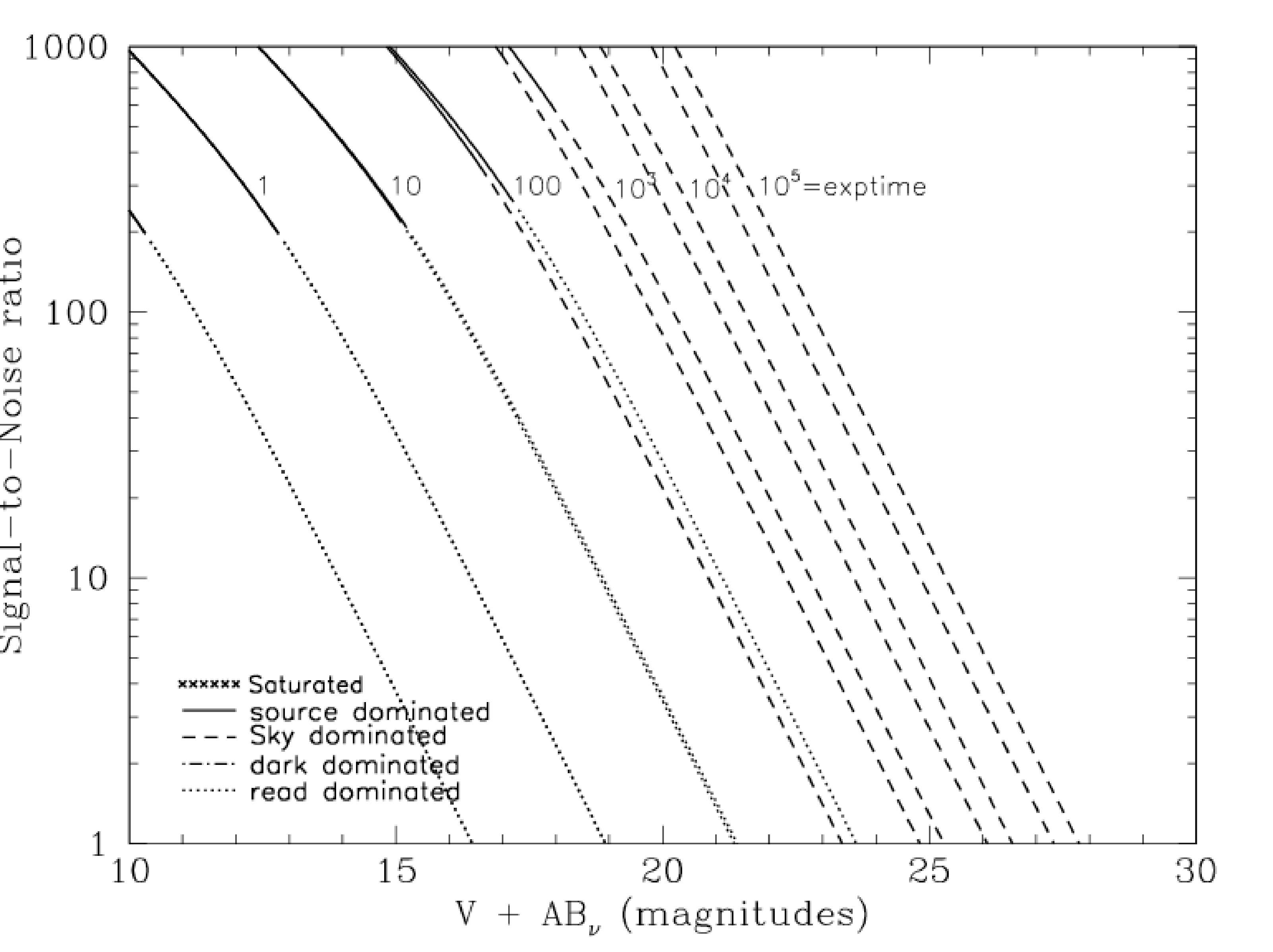

Figure 10.69: Extended source S/N vs. V+ABν for the HRC/F555W filter. Top curves are for low sky and bottom curves are for average sky for a 1 arcsec2 area.
-
