WFC F850LP
Description
Sloan Digital Sky Survey z filter.

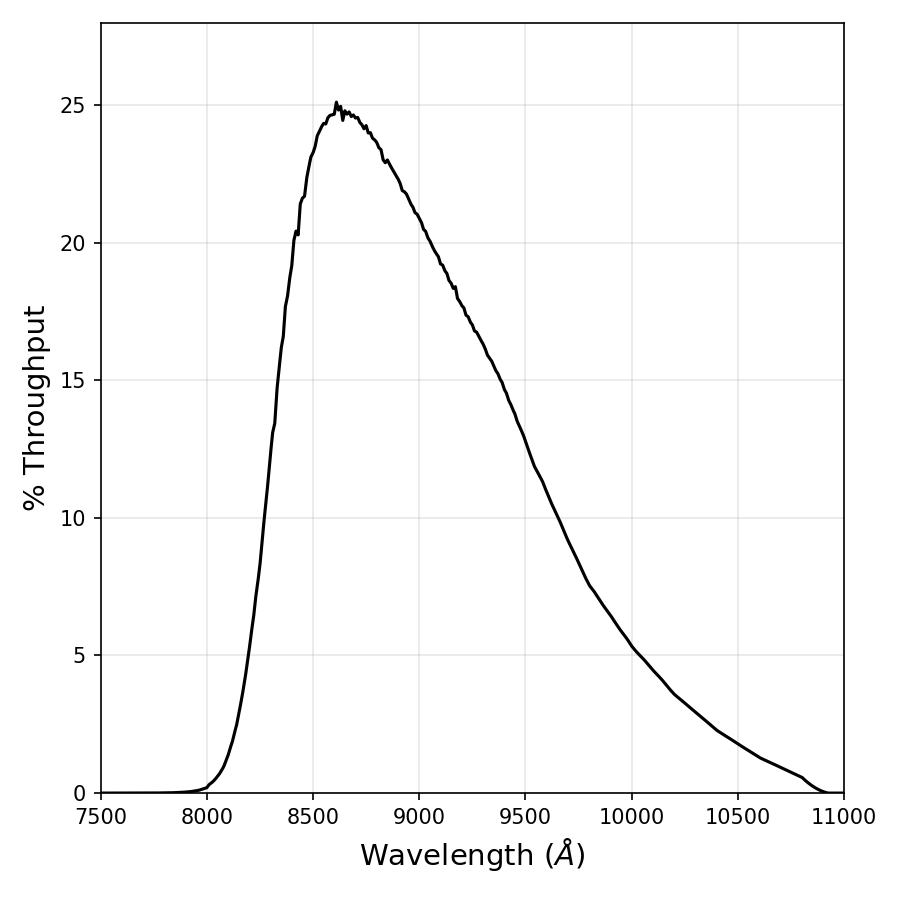

Figure 10.34: Integrated system throughput for WFC/F850LP.

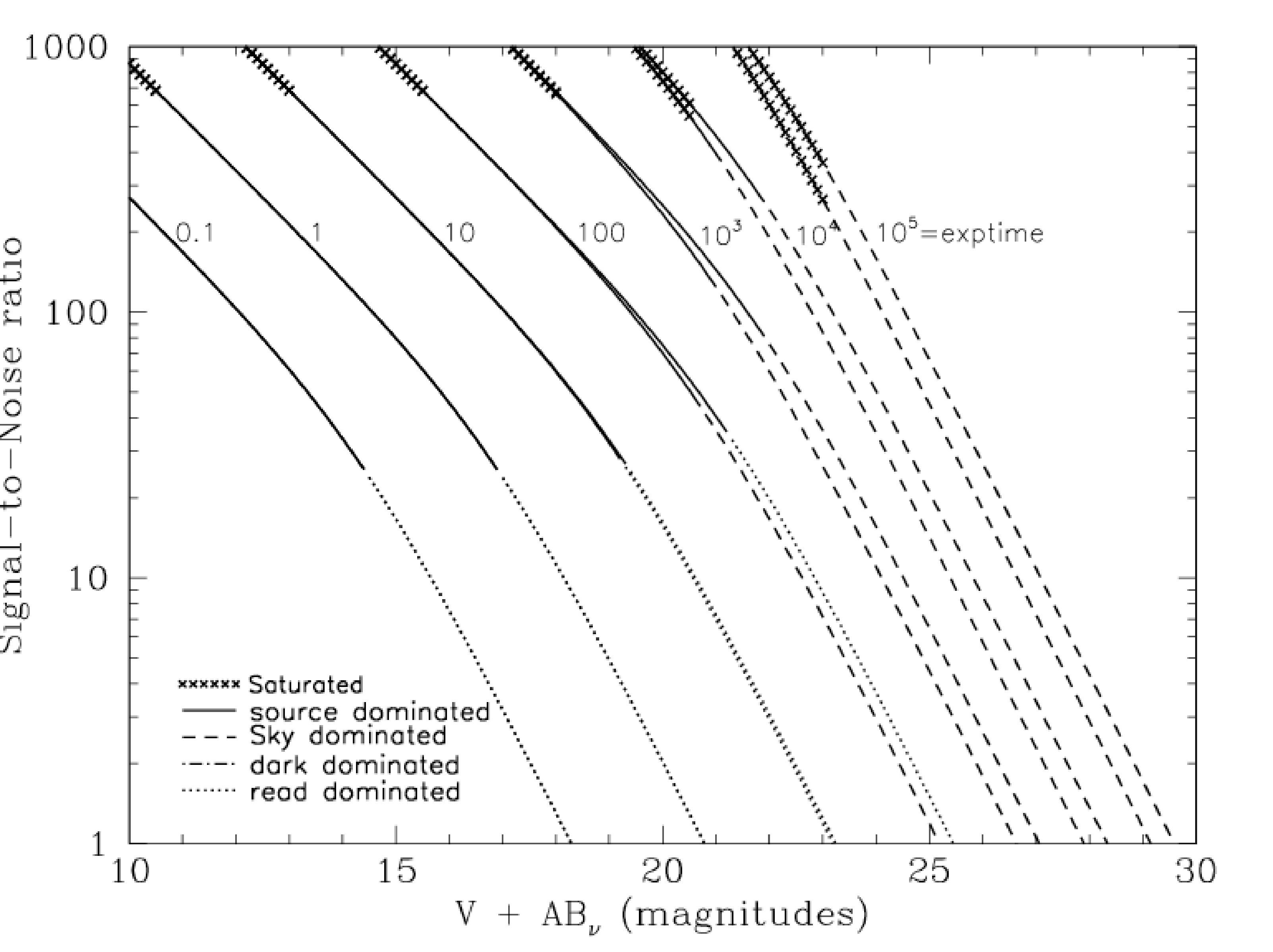

Figure 10.35: Point source S/N vs. V+ABν for the WFC/F850LP filter. Top curves are for low sky; bottom curves are for average sky.

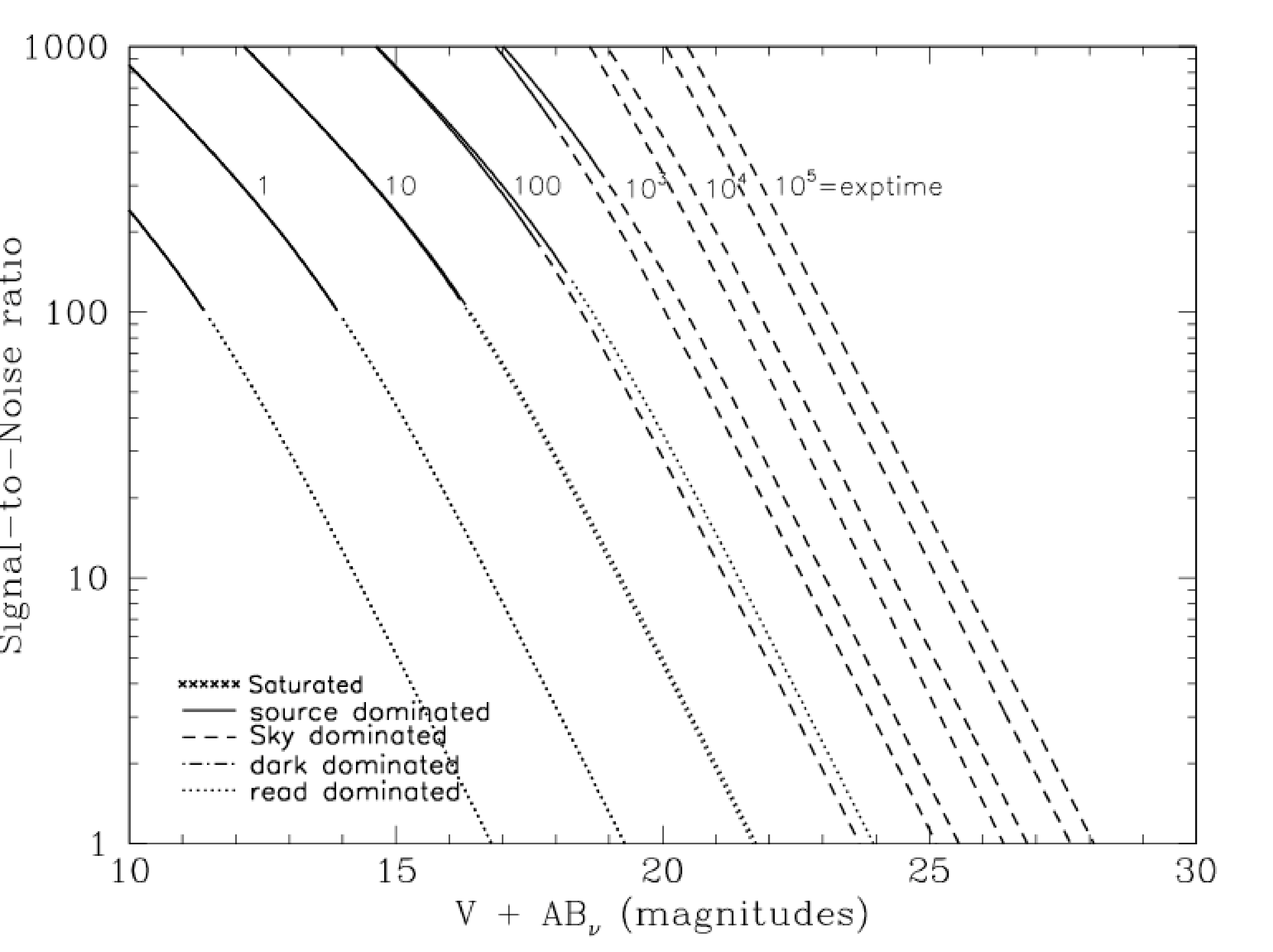

Figure 10.36: Extended source S/N vs. V+ABν for the WFC/F850LP filter. Top curves are for low sky and bottom curves are for average sky for a 1 arcsec2 area.
-
