HRC F330W
Description
HRC u filter.

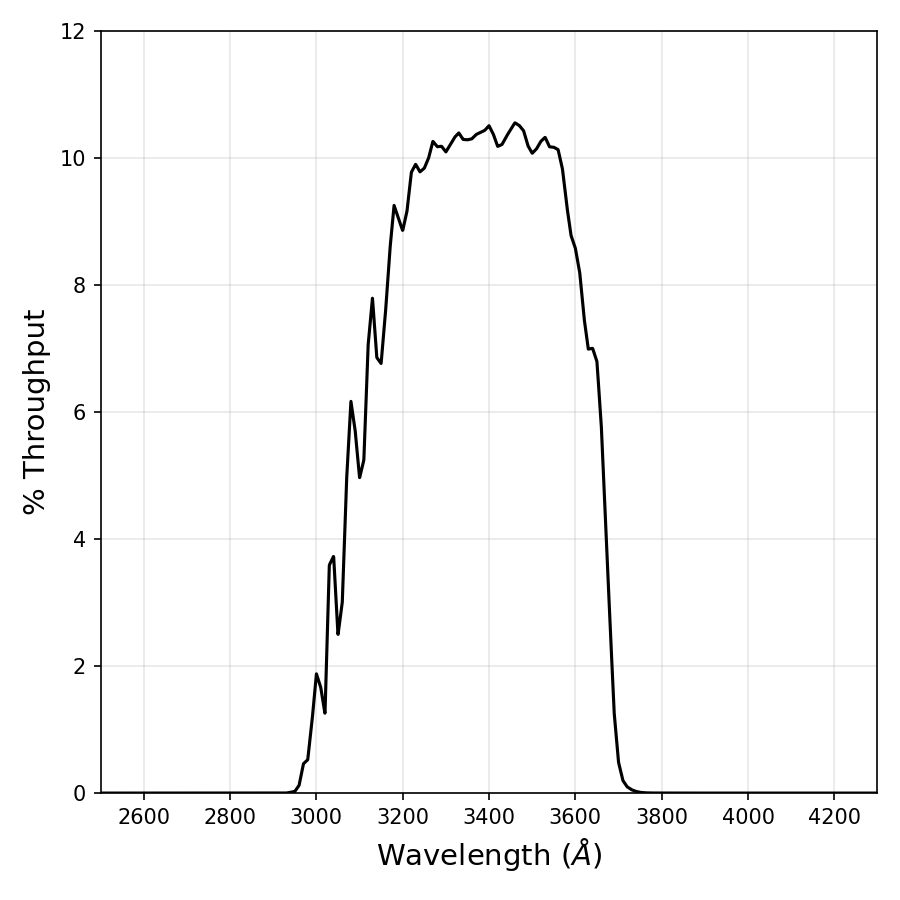

Figure 10.49: Integrated system throughput for HRC/F330W.

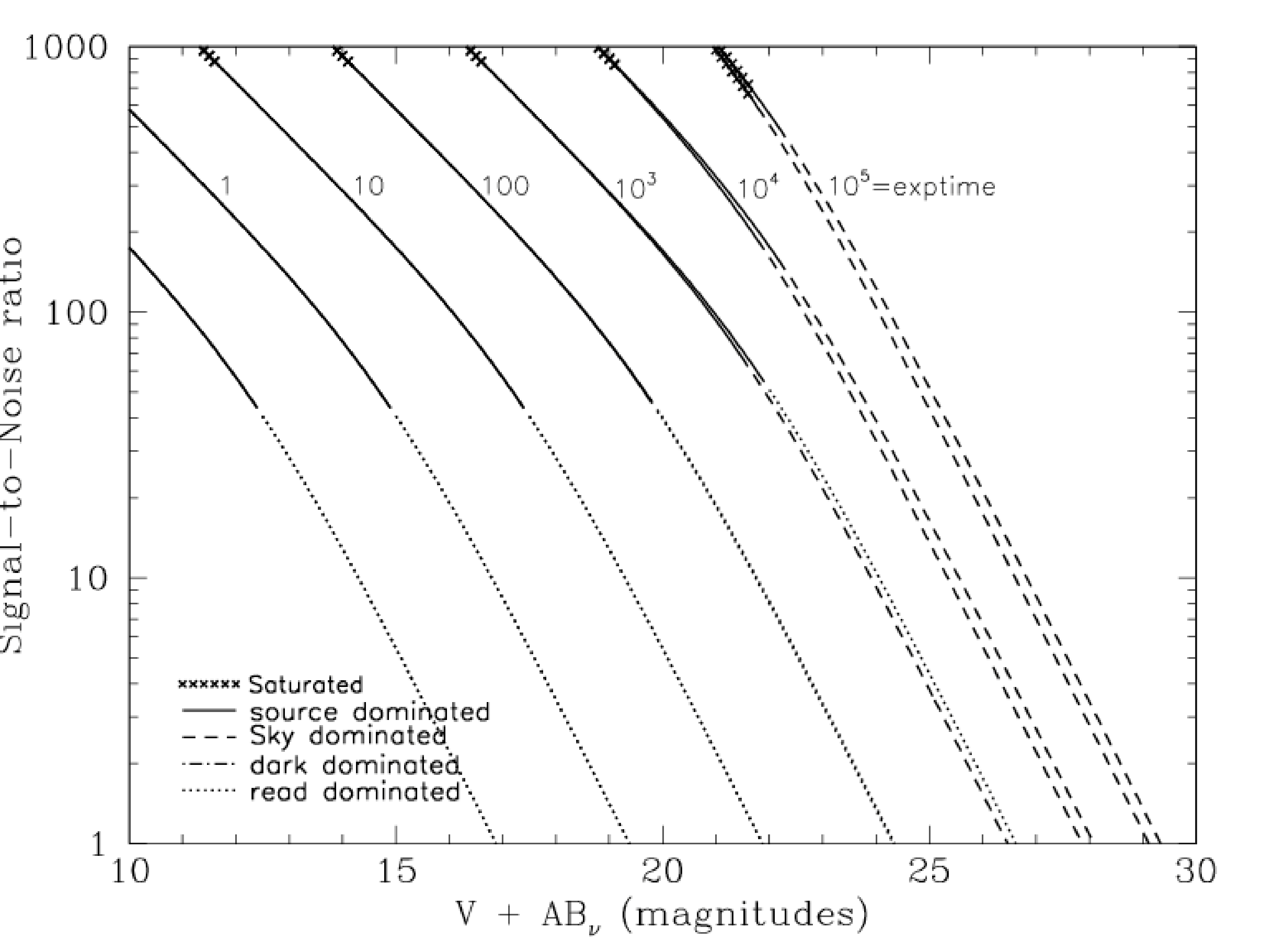

Figure 10.50: Point source S/N vs. V+ABν for the HRC/F330W filter. Top curves are for low sky; bottom curves are for average sky.
Figure 10.51: Extended source S/N vs. V+ABν for the HRC/F330W filter. Top curves are for low sky and bottom curves are for average sky for a 1 arcsec2 area.
-
