First-Order Spatial Profiles

Most of the encircled energy values were derived from early in-flight data, as described in STIS ISR 1998-01. The MAMA first-order modes were re-examined, using more recent data, in STIS ISR 2018-06, which found that the encircled energies for those modes had been quite stable up to that point. The values in the tables below correspond (approximately) to those in the PCTAB reference files for each grating. Note, however, that the PCTAB re-normalizes the encircled energy to be unity at the default extraction height.

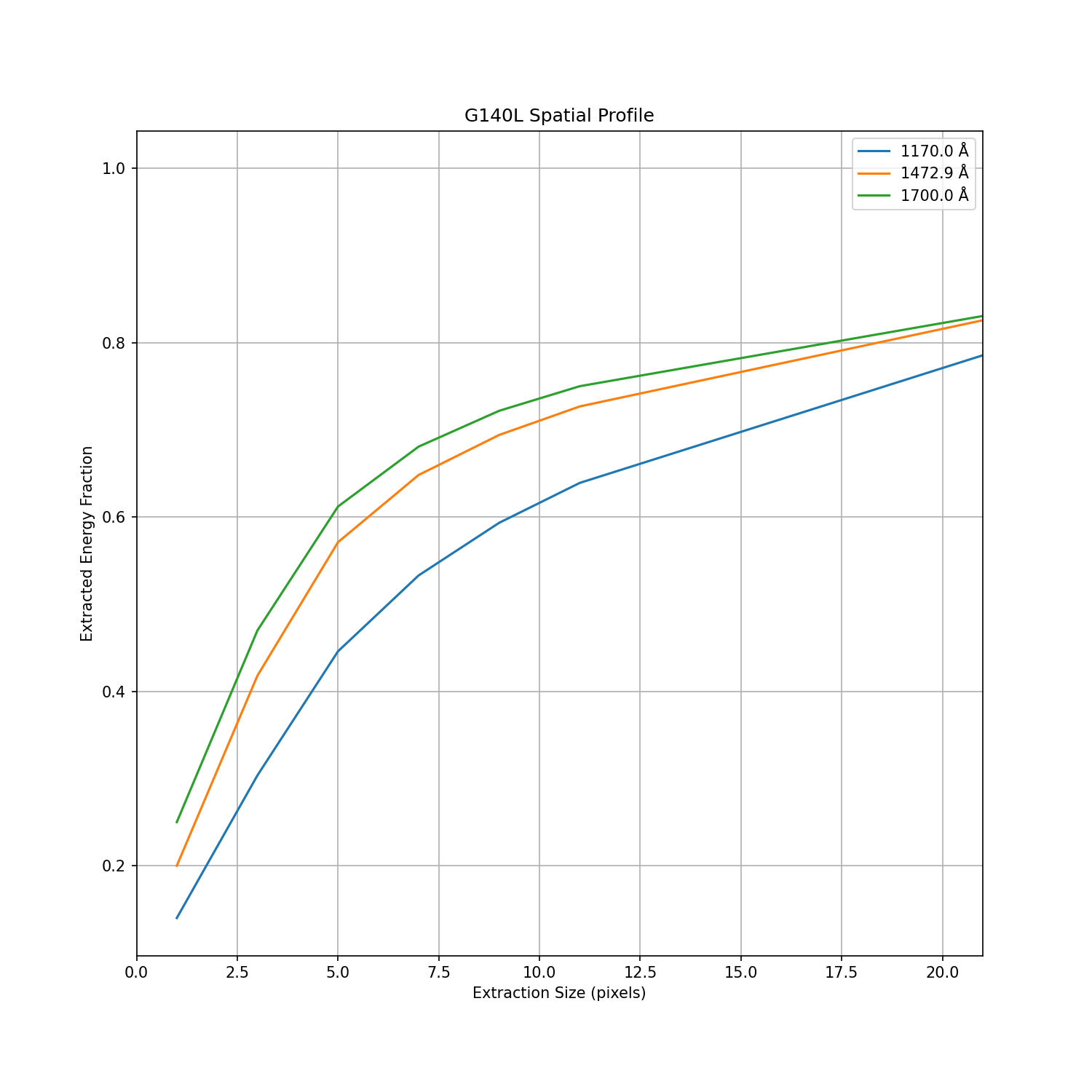

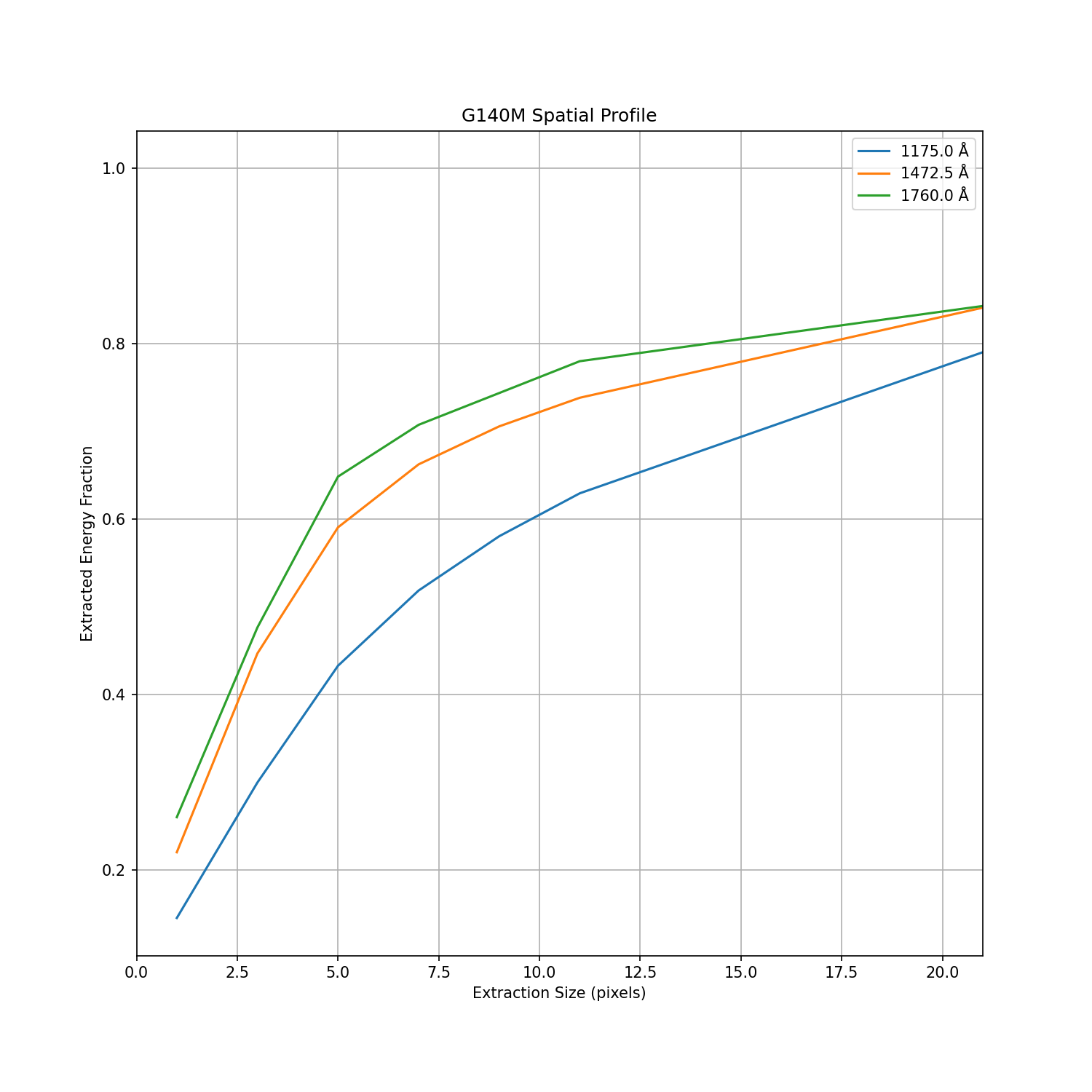

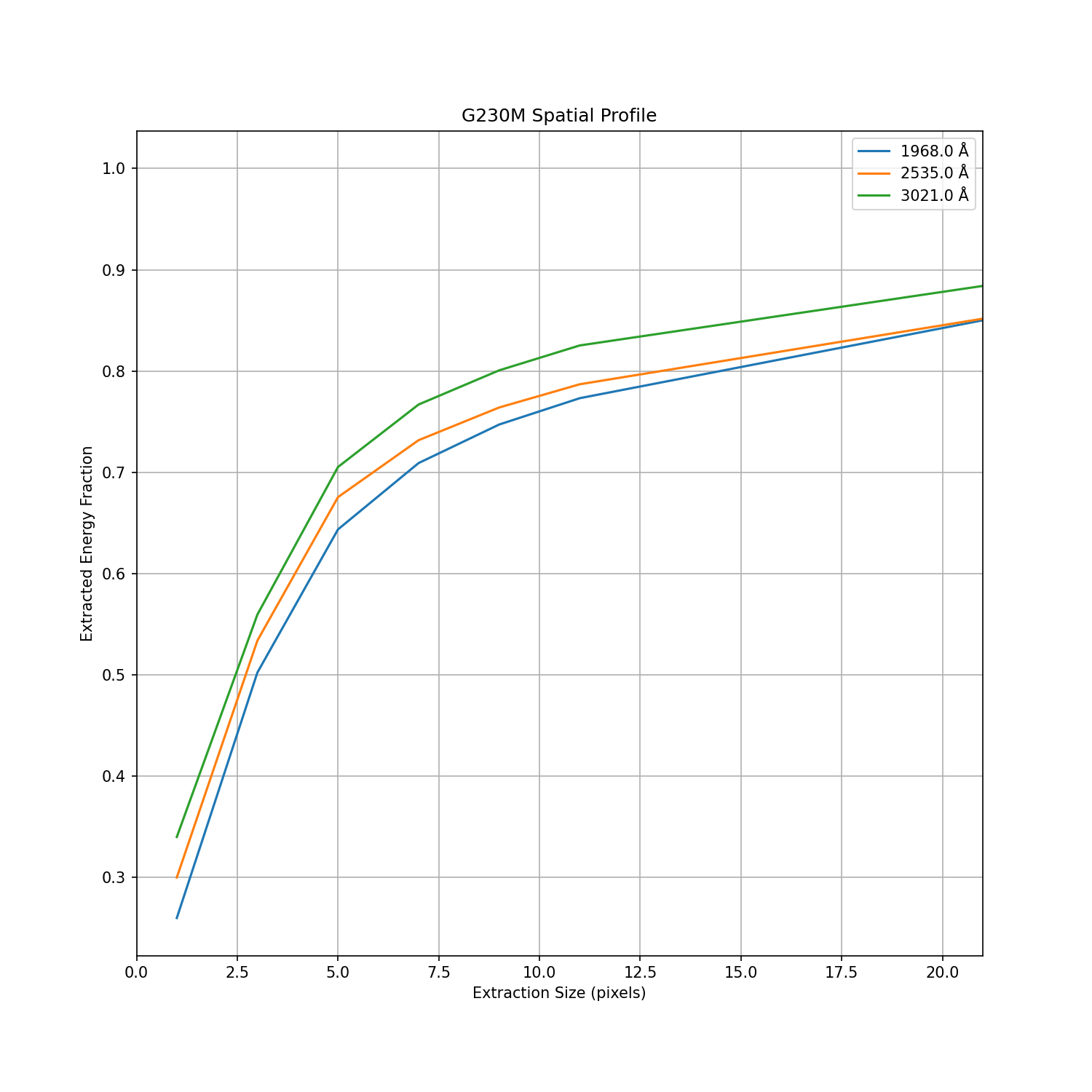

Table 13.36: Encircled Energies for G140L, G140M, G230L, G230M

Grating	λ	Slit¹	Extraction Height (pixels)	Flux in Center Pixel²	Flux in Extraction Aperture²
`G140L`	1170.0 1472.9 1700.0	`52X2`	11	0.140 0.200 0.250	0.6393 0.7270 0.7502
`G140M`	1175.0 1472.5 1760.0	`52X2`	11	0.145 0.220 0.260	0.6295 0.7385 0.7802
`G230L`	2037.1 2474.3 3130.0	`52X2`	11	0.260 0.310 0.330	0.7721 0.8001 0.7966
`G230M`	1968.0 2535.0 3021.0	`52X2`	11	0.260 0.300 0.340	0.7732 0.7870 0.8253

¹ Values are somewhat dependent on observing slit.

² From ISR 2018-06

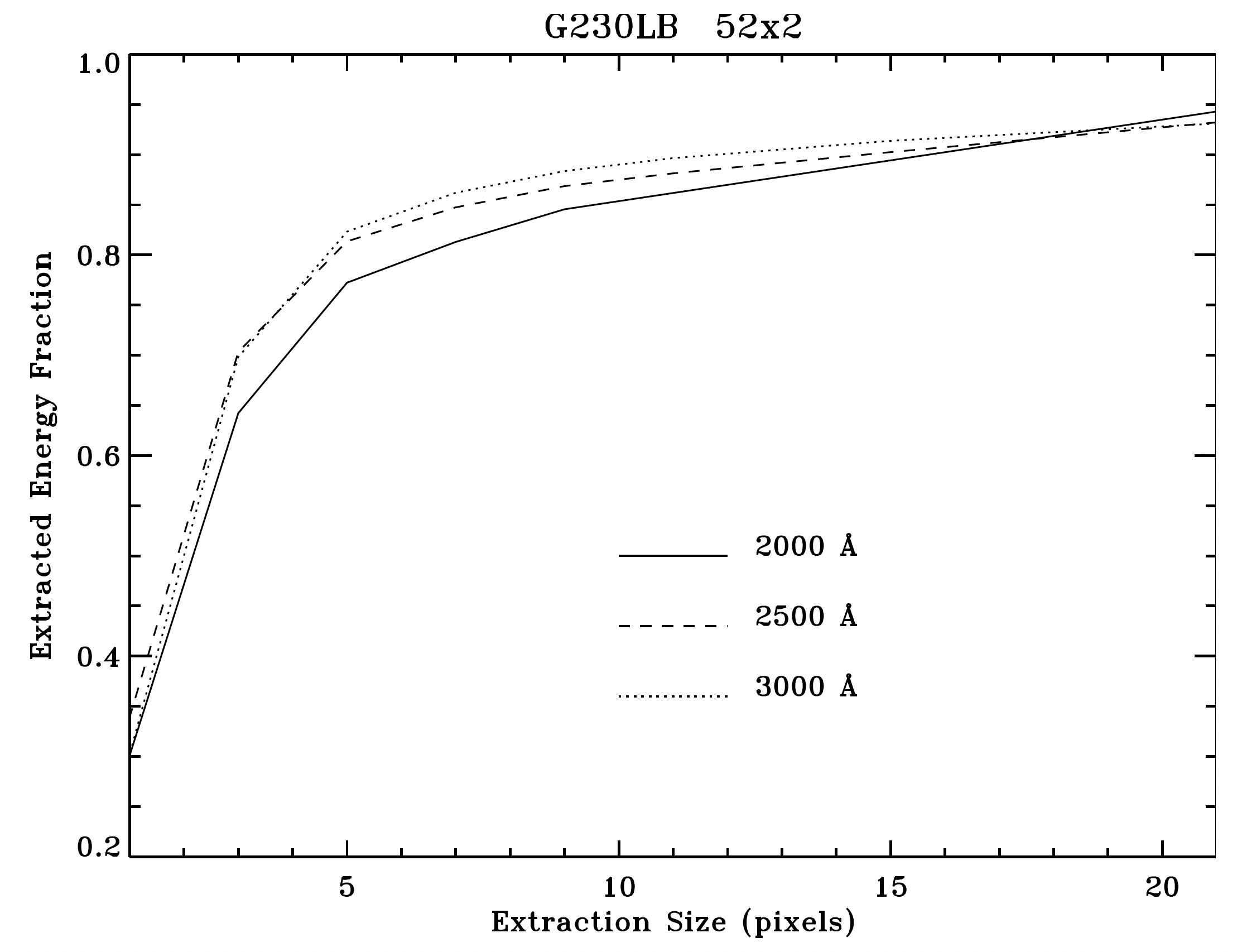

Table 13.37: Encircled Energies for G230LB and G230MB.

Grating¹	λ	Slit²	Extraction Height (pixels)	Flux in Center Pixel	Flux in Extraction Aperture
`G230LB` & `G230MB`	2000 2500 3000	`52X2`	7	0.3008 0.3390 0.3017	0.8130 0.8475 0.8621

¹ M mode profiles are assumed to be identical to L mode profiles.
² Values are somewhat dependent on observing slit.

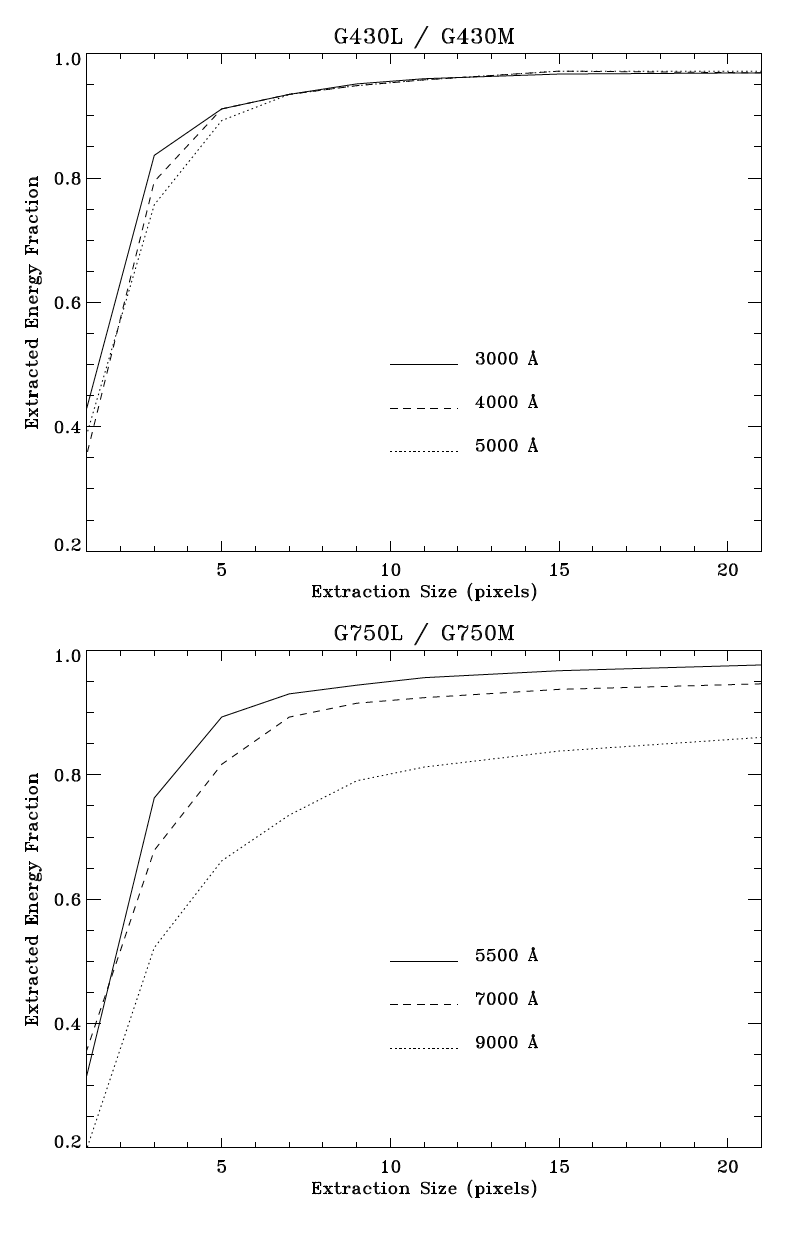

Table 13.38: Encircled Energies for G430L, G430M, G750L, G750M

Grating¹	λ	Slit²	Extraction Height (pixels)	Flux in Center Pixel	Flux in Extraction Aperture
`G430L` & `G430M`	3000 4000 5000	`52X0.2`	7	0.4299 0.3551 0.3879	0.9348 0.9346 0.9346
`G750L` & `G750M`	5500 7000 9000	`52X0.2`	7	0.3163 0.3571 0.1985	0.9302 0.8929 0.7353

¹ M mode profiles are assumed to be identical to L mode profiles.
² Values are somewhat dependent on observing slit.
