IR F098M
Description
Blue grism reference filter.

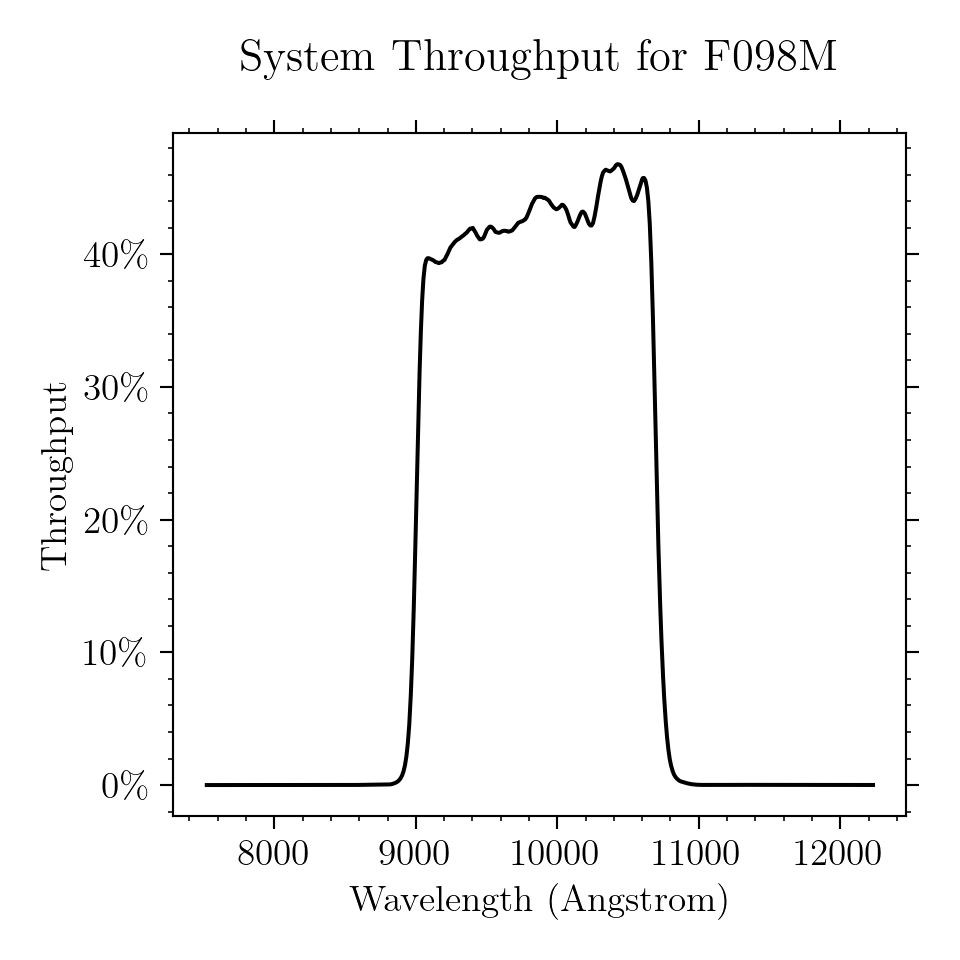

Figure A.187: Integrated system throughput for F098M.

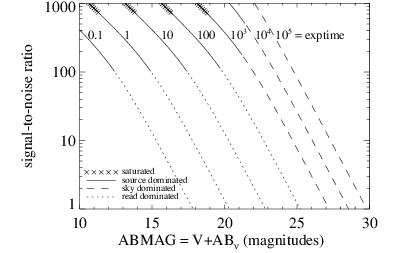

Figure A.188: Point source S/N vs. V+ABν for the F098M filter, assuming high sky backgrounds and a 3 × 3 pixel aperture.

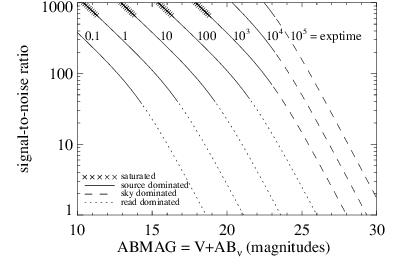

Figure A.189: Extended source S/N vs. V+ABν for the F098M filter, assuming high sky backgrounds and a source uniformly filling a 1 arcsec2 aperture.
-
