UVIS F487N
Description
Hβ 4861 filter.

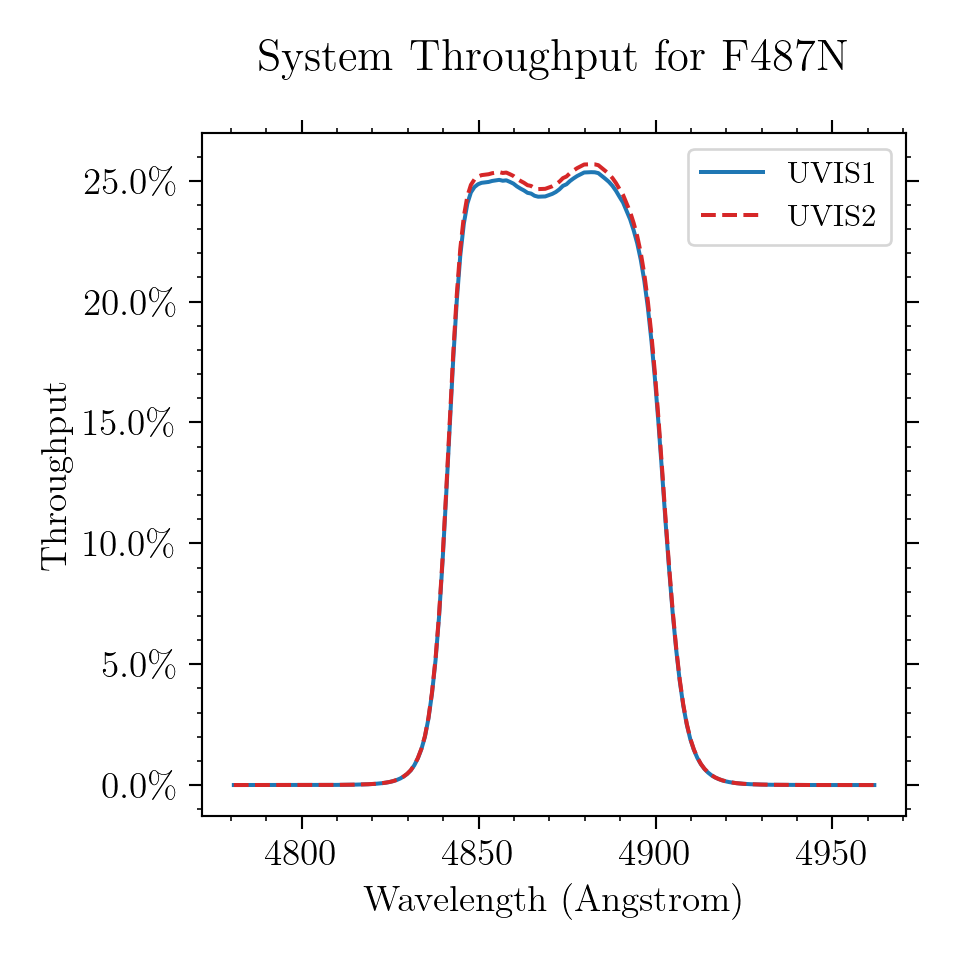

Figure A.58: Integrated system throughput for F487N.

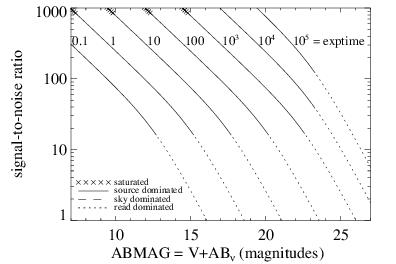

Figure A.59: Point source S/N vs. V+ABν for the F487N filter, assuming high sky backgrounds and a 5 × 5 pixel aperture.

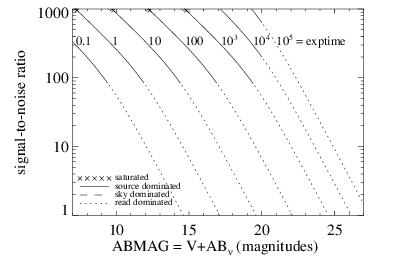

Figure A.60: Extended source S/N vs. V+ABν for the F487N filter, assuming high sky backgrounds and a source uniformly filling a 1 arcsec2 aperture.
-
