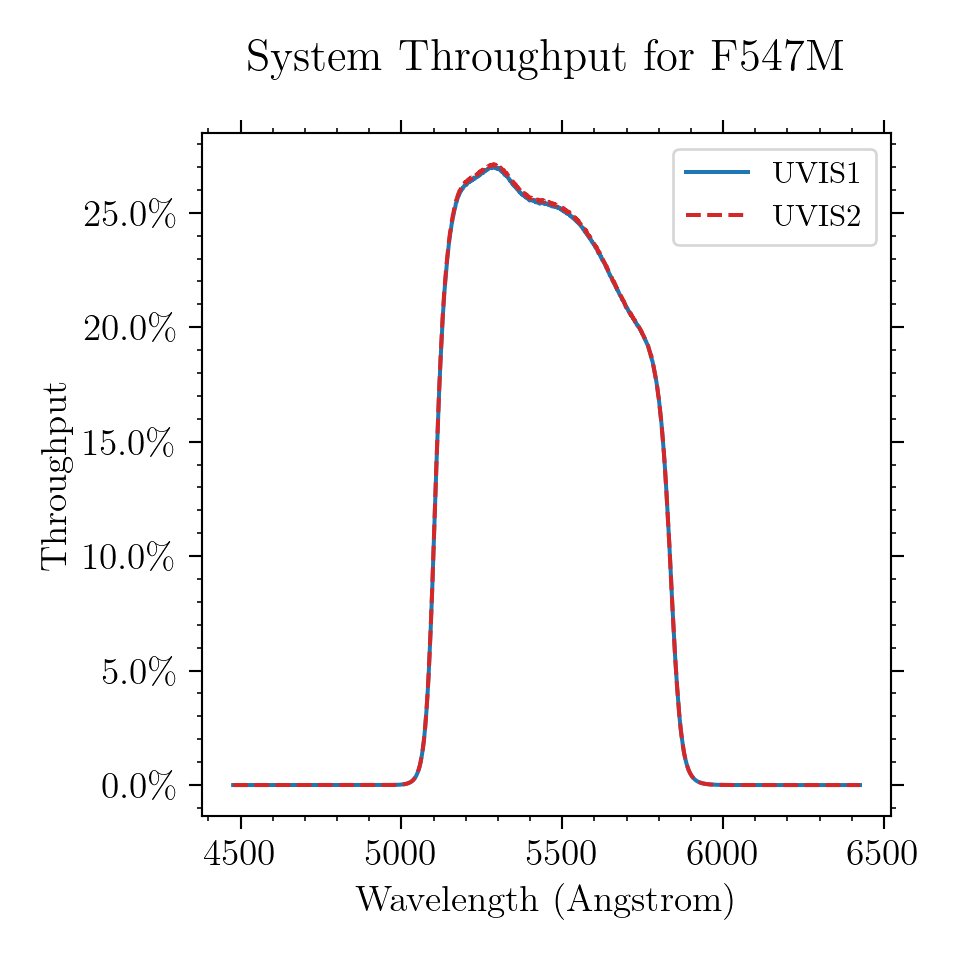

UVIS F547M
Description
Strömgren y filter.

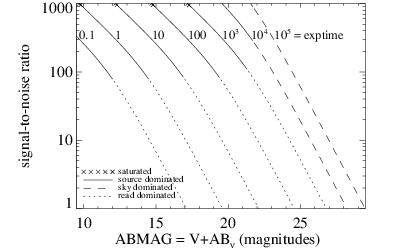

Figure A.65: Point source S/N vs. V+ABν for the F547M filter, assuming high sky backgrounds and a 5 × 5 pixel aperture.

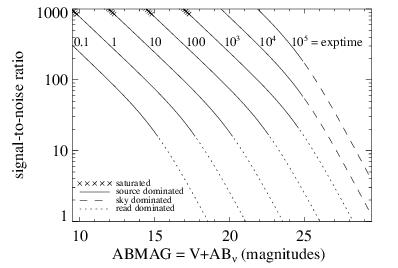

Figure A.66: Extended source S/N vs. V+ABν for the F547M filter, assuming high sky backgrounds and a source uniformly filling a 1 arcsec2 aperture.
-
