UVIS F621M
Description
11% passband filter.

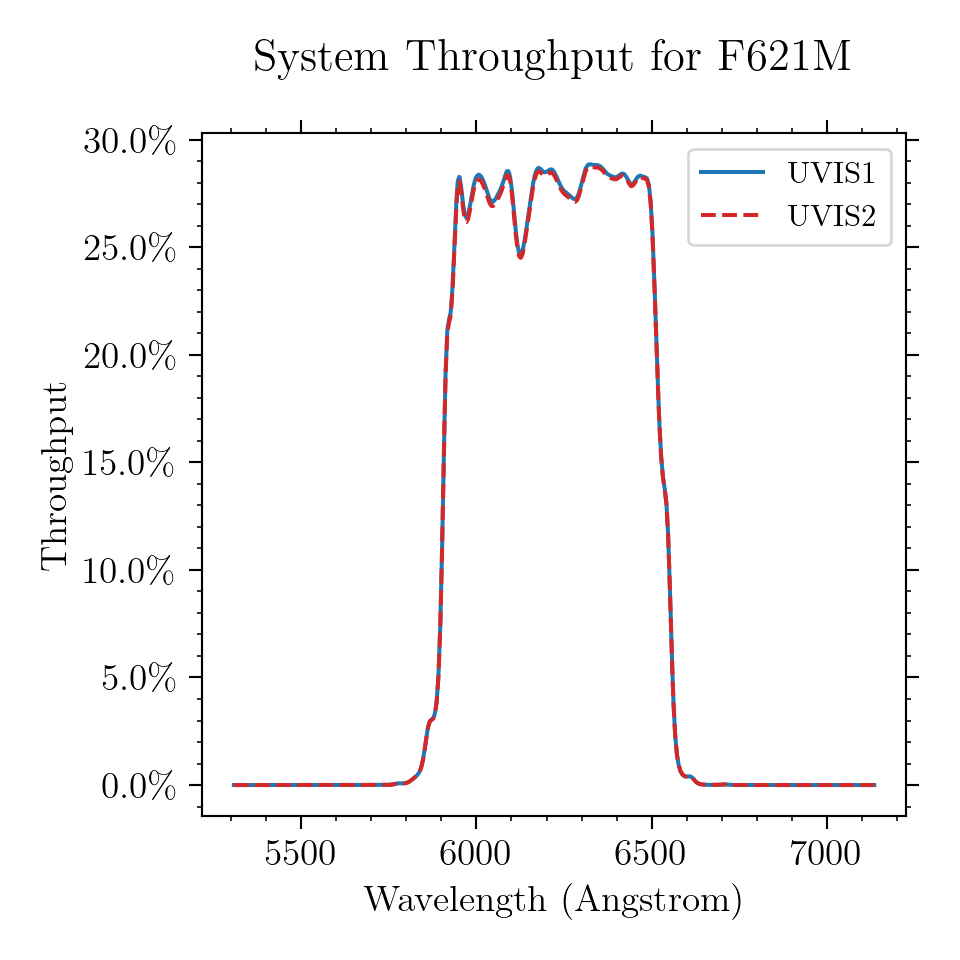

Figure A.76: Integrated system throughput for F621M.

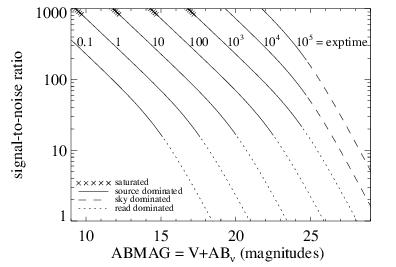

Figure A.77: Point source S/N vs. V+ABν for the F621M filter, assuming high sky backgrounds and a 5 × 5 pixel aperture.

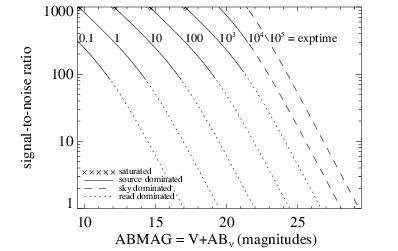

Figure A.78: Extended source S/N vs. V+ABν for the F621M filter, assuming high sky backgrounds and a source uniformly filling a 1 arcsec2 aperture.
-
