UVIS F645N
Description
Continuum filter.

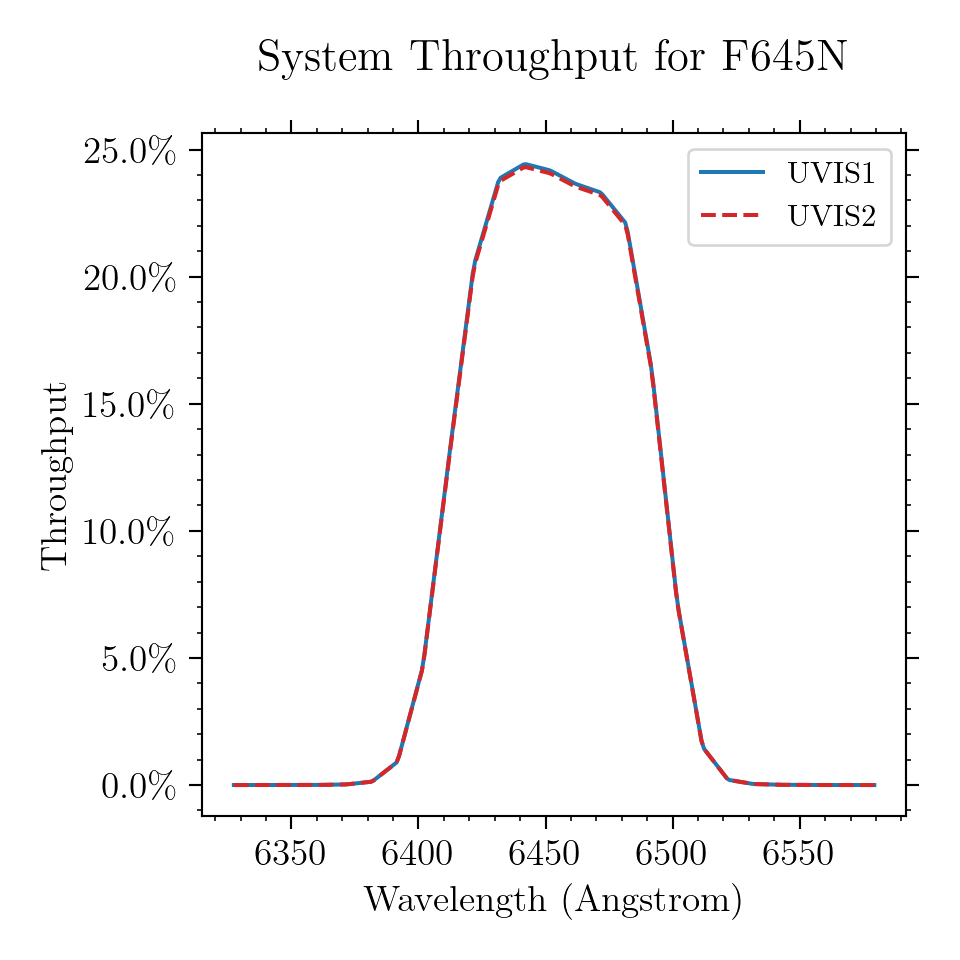

Figure A.85: Integrated system throughput for F645N.

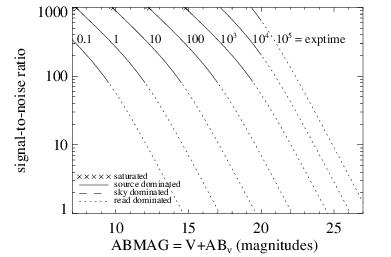

Figure A.86: Point source S/N vs. V+ABν for the F645N filter, assuming high sky backgrounds and a 5 × 5 pixel aperture.

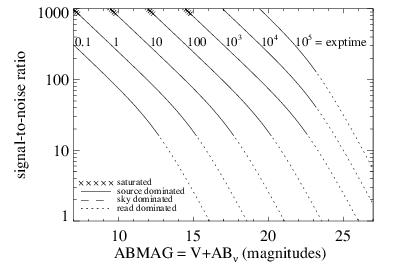

Figure A.87: Extended source S/N vs. V+ABν for the F645N filter, assuming high sky backgrounds and a source uniformly filling a 1 arcsec2 aperture.
-
