UVIS FQ924N
Description
CH4 0.25 km-agt filter.

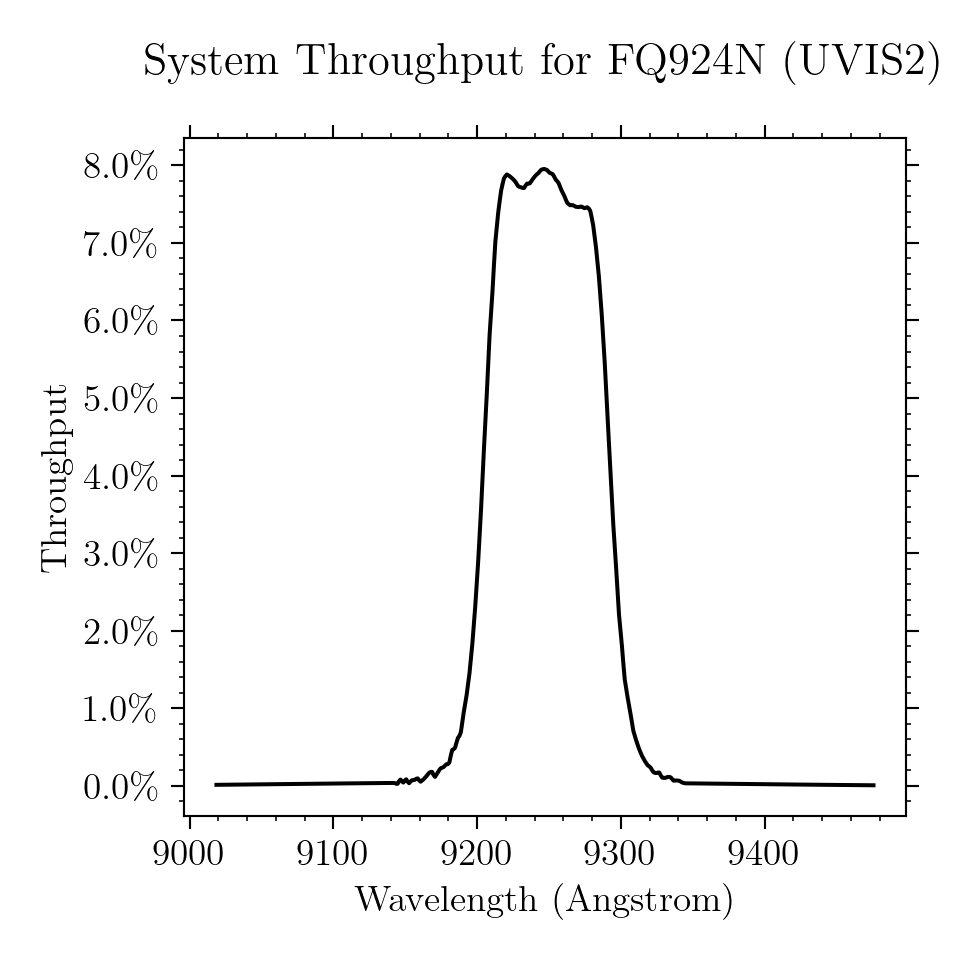

Figure A.181: Integrated system throughput for FQ924N.

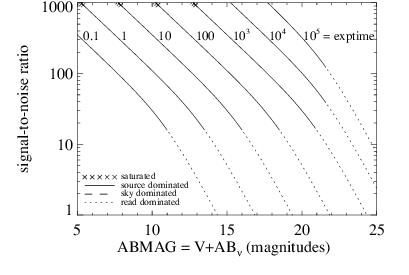

Figure A.182: Point source S/N vs. V+ABν for the FQ924N filter, assuming high sky backgrounds and a 5 × 5 pixel aperture.

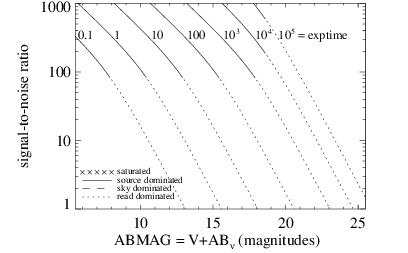

Figure A.183: Extended source S/N vs. V+ABν for the FQ924N filter, assuming high sky backgrounds and a source uniformly filling a 1 arcsec2 aperture.
-
