UVIS FQ492N
Description
z (Hβ) filter.

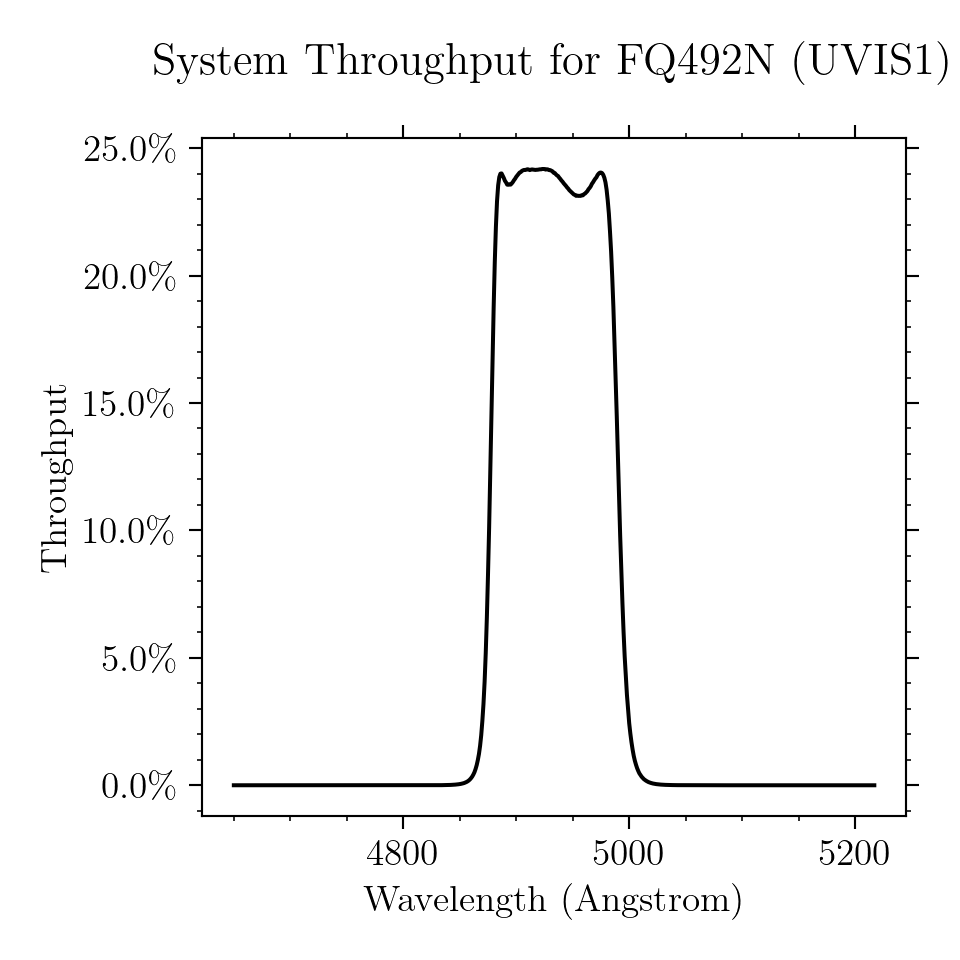

Figure A.148: Integrated system throughput for FQ492N.

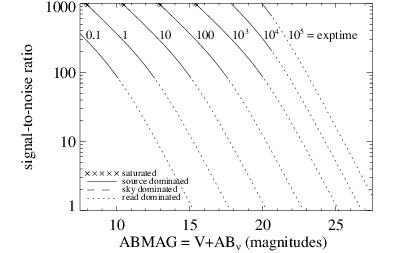

Figure A.149: Point source S/N vs. V+ABν for the FQ492N filter, assuming high sky backgrounds and a 5 × 5 pixel aperture.

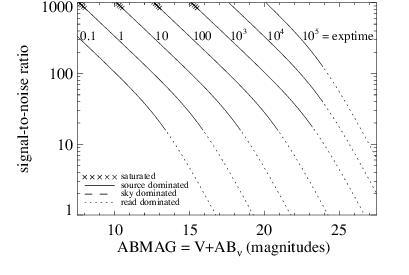

Figure A.150: Extended source S/N vs. V+ABν for the FQ492N filter, assuming high sky backgrounds and a source uniformly filling a 1 arcsec2 aperture.
-
