UVIS F689M
Description
11% passband filter.
Figure A.106: Integrated system throughput for F689M.

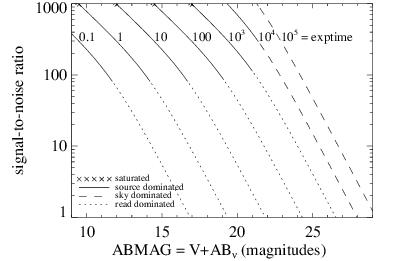

Figure A.107: Point source S/N vs. V+ABν for the F689M filter.Top curves are for low sky; bottom curves are for average sky.
Figure A.108: Extended source S/N vs. V+ABν for the F689M filter, assuming high sky backgrounds and a source uniformly filling a 1 arcsec2 aperture.
-
