IR F126N
Description
[Fe II] filter.

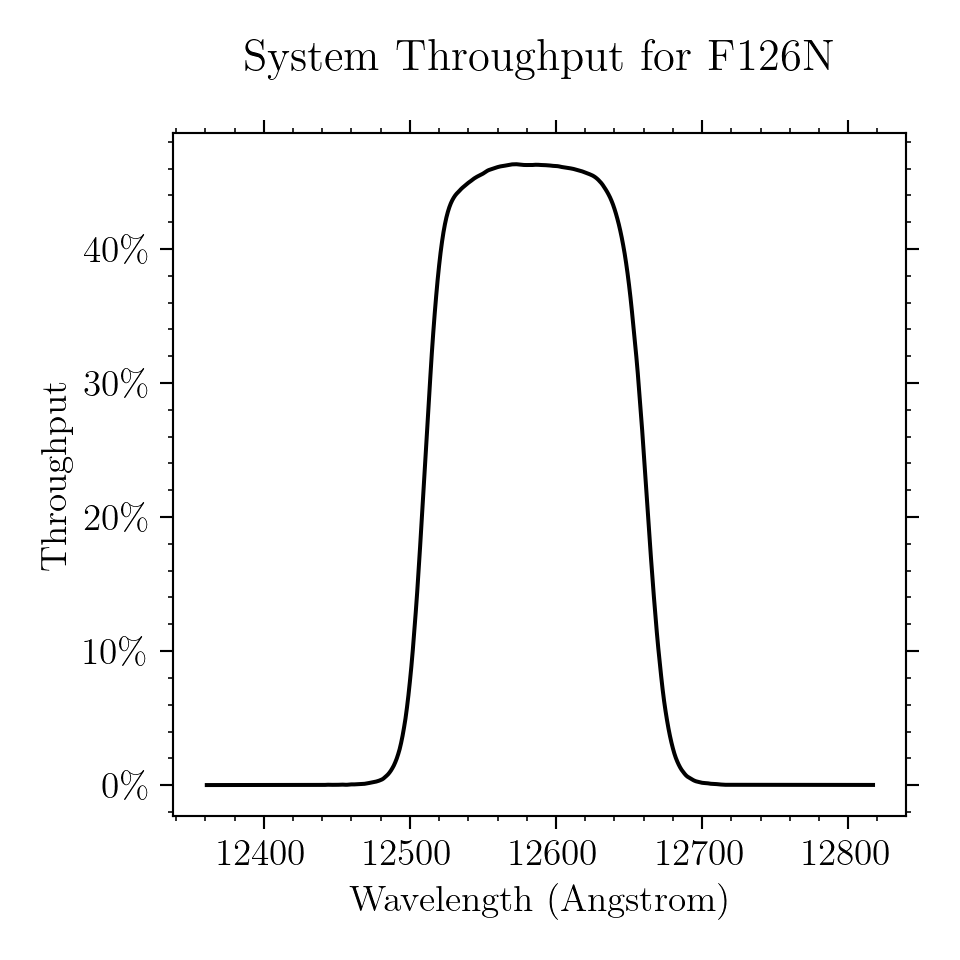

Figure A.199: Integrated system throughput for F126N.

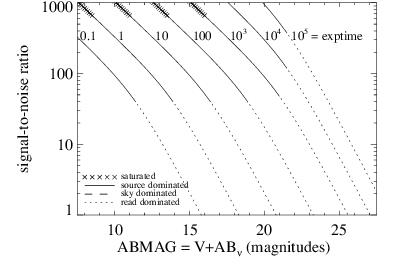

Figure A.200: Point source S/N vs. V+ABν for the F126N filter, assuming high sky backgrounds and a 3 × 3 pixel aperture.

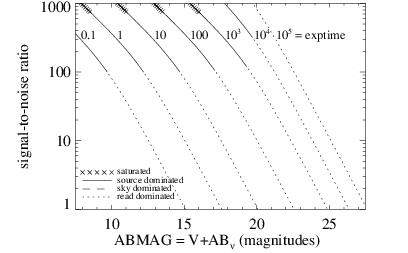

Figure A.201: Extended source S/N vs. V+ABν for the F126N filter, assuming high sky backgrounds and a source uniformly filling a 1 arcsec2 aperture.
-
