UVIS F218W
Description
ISM feature filter.

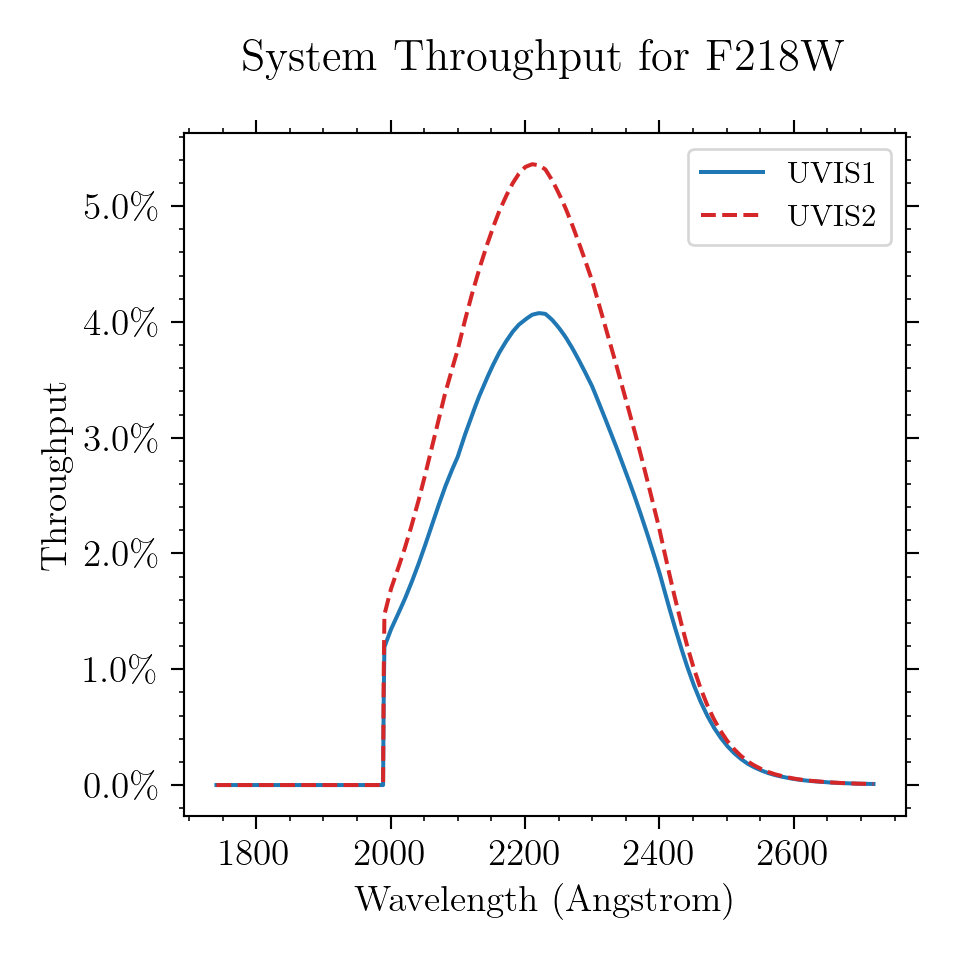

Figure A.4: Integrated system throughput for F218W.

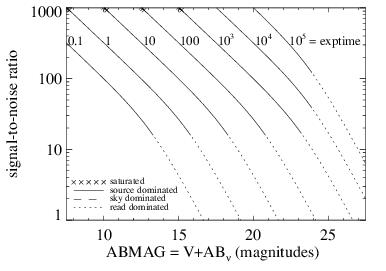

Figure A.5: Point source S/N vs. V+ABν for the F218W filter, assuming high sky backgrounds and a 5 × 5 pixel aperture.

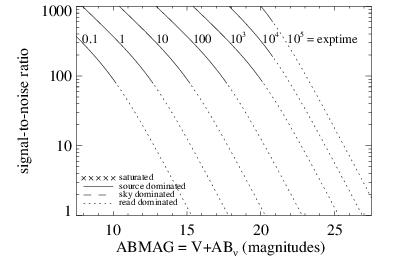

Figure A.6: Extended source S/N vs. V+ABν for the F218W filter, assuming high sky backgrounds and a source uniformly filling a 1 arcsec2 aperture.
-
