UVIS F657N
Description
Wide Hα + [N II] filter.

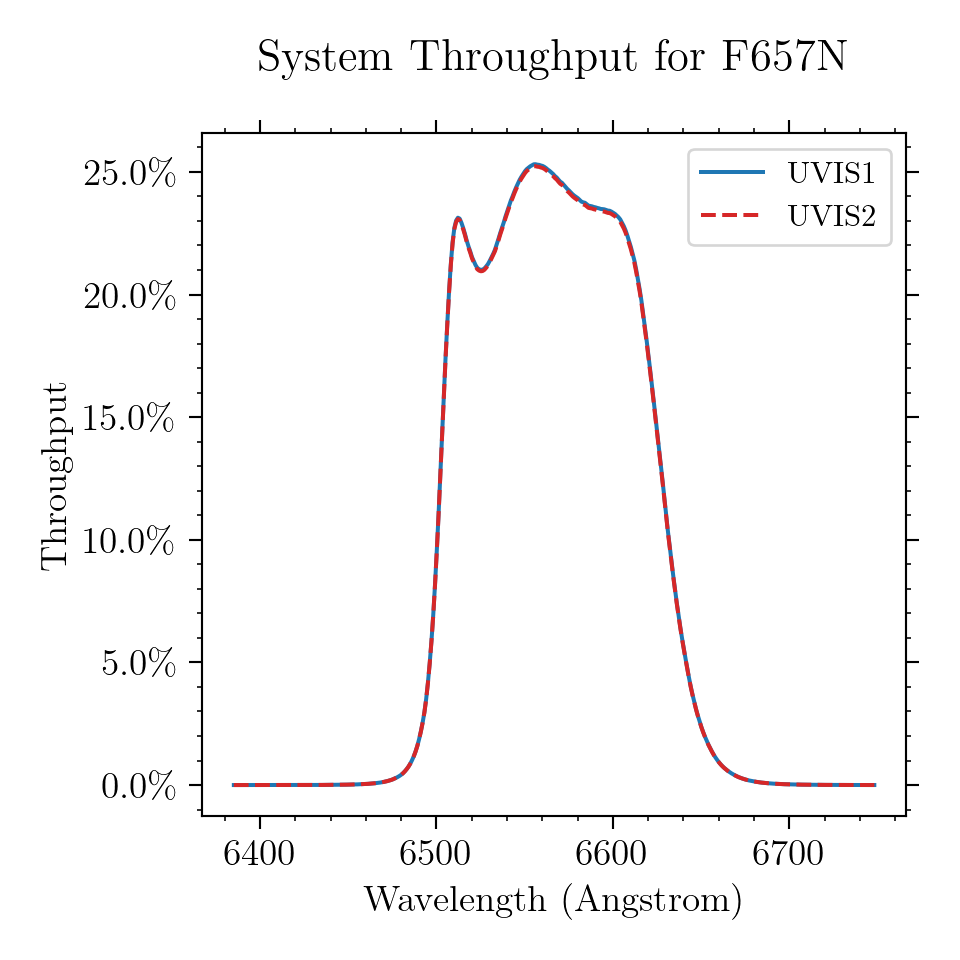

Figure A.91: Integrated system throughput for F657N.

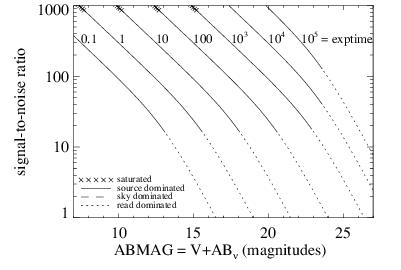

Figure A.92: Point source S/N vs. V+ABν for the F657N filter, assuming high sky backgrounds and a 5 × 5 pixel aperture.

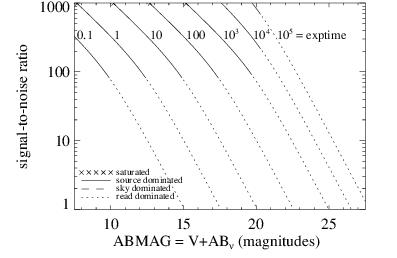

Figure A.93: Extended source S/N vs. V+ABν for the F657N filter, assuming high sky backgrounds and a source uniformly filling a 1 arcsec2 aperture.
-
