UVIS FQ750N
Description
7270 continuum filter.

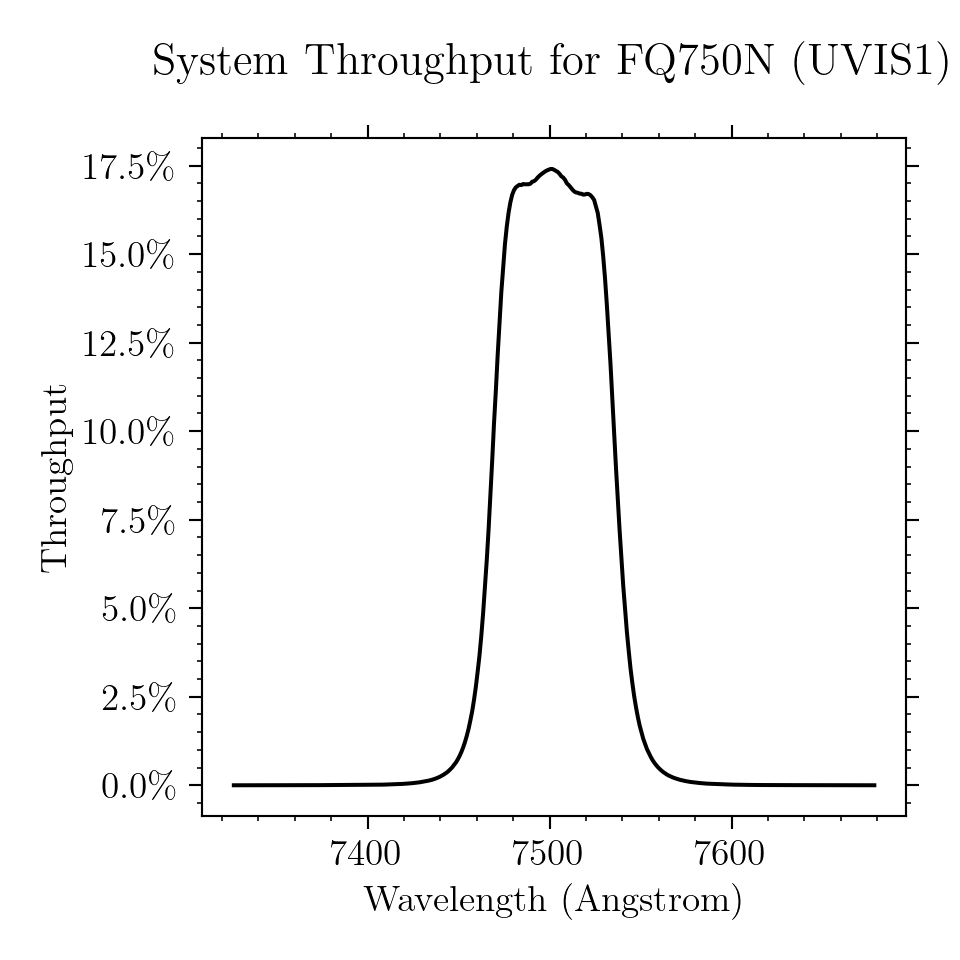

Figure A.172: Integrated system throughput for FQ750N.

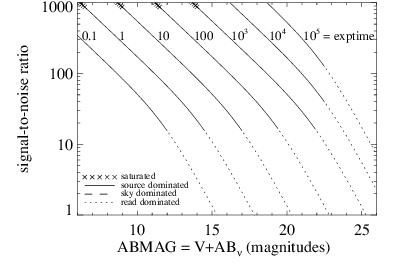

Figure A.173: Point source S/N vs. V+ABν for the FQ750N filter, assuming high sky backgrounds and a 5 × 5 pixel aperture.

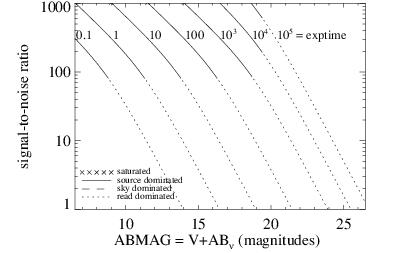

Figure A.174: Extended source S/N vs. V+ABν for the FQ750N filter, assuming high sky backgrounds and a source uniformly filling a 1 arcsec2 aperture.
-
