UVIS F845M
Description
11% passband filter.

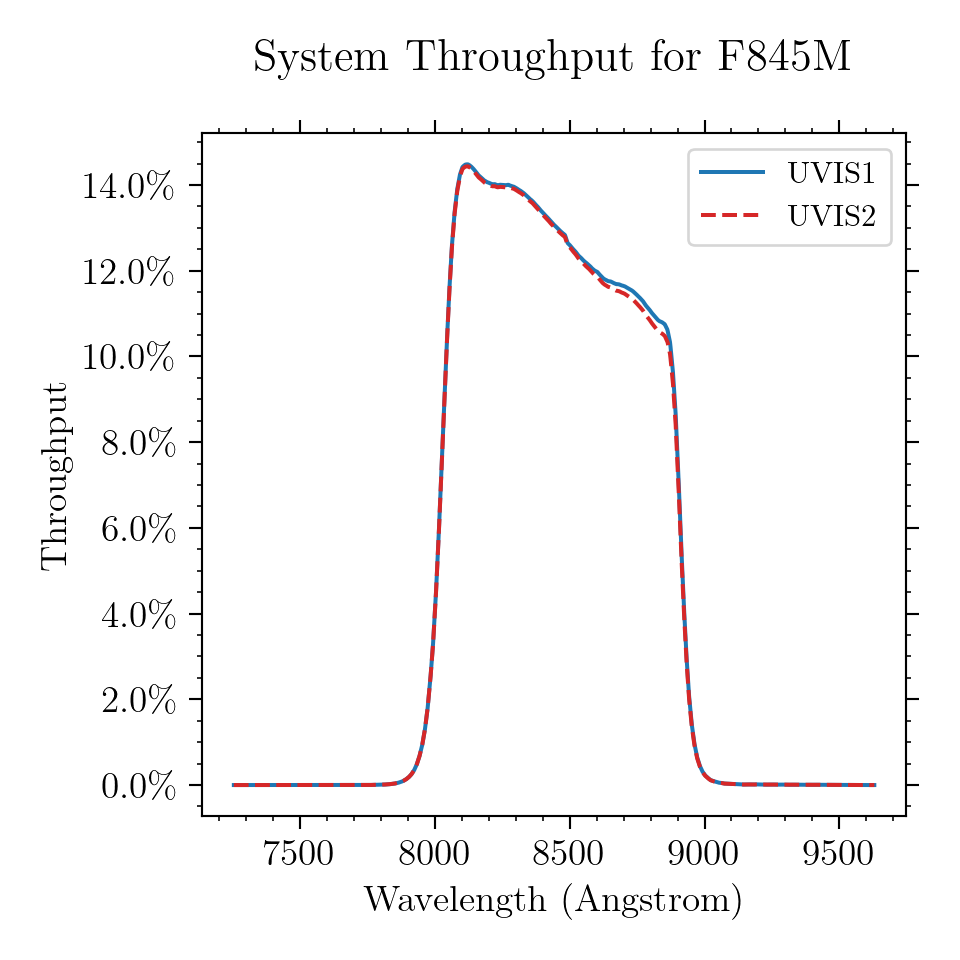

Figure A.118: Integrated system throughput for F845M.

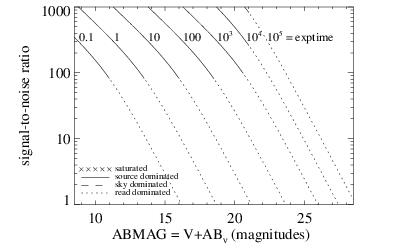

Figure A.119: Point source S/N vs. V+ABν for the F845M filter, assuming high sky backgrounds and a 5 × 5 pixel aperture.

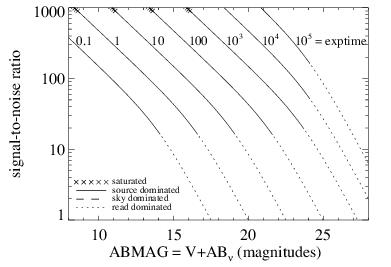

Figure A.120: Extended source S/N vs. V+ABν for the F845M filter, assuming high sky backgrounds and a source uniformly filling a 1 arcsec2 aperture.
-
