UVIS F475X
Description
Extremely wide blue filter.

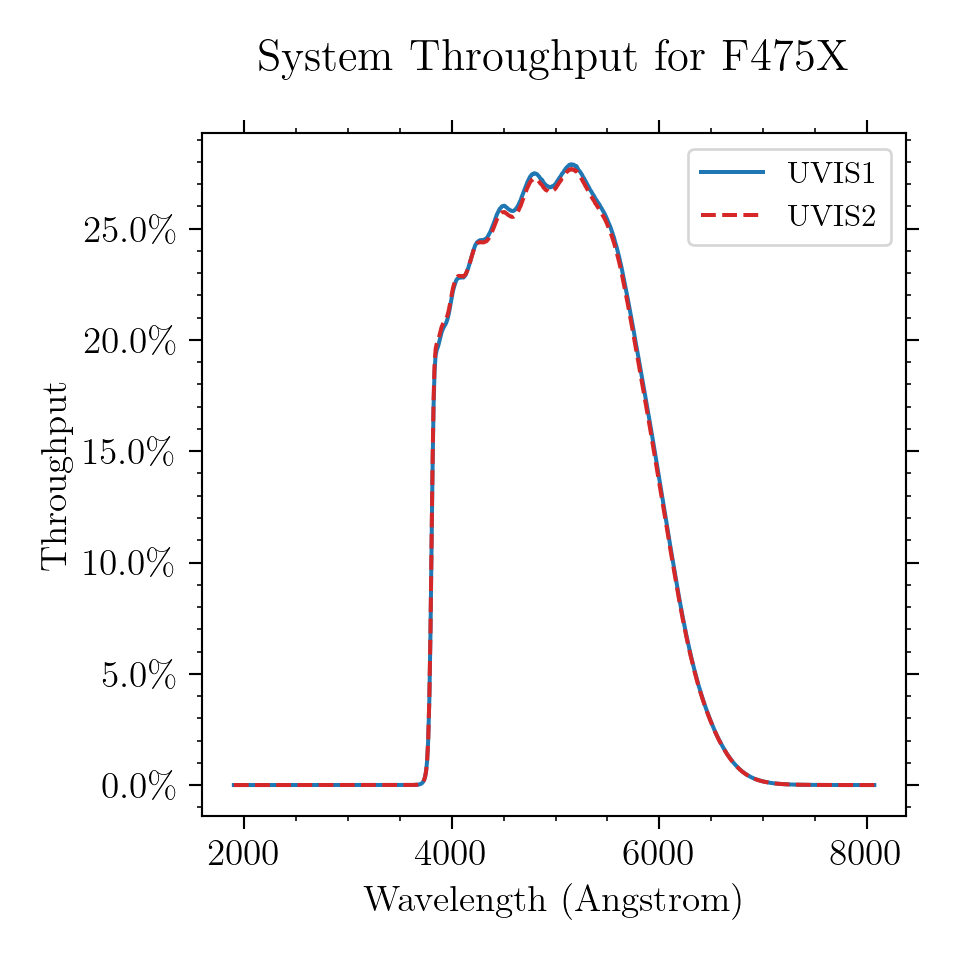

Figure A.55: Integrated system throughput for F475X.

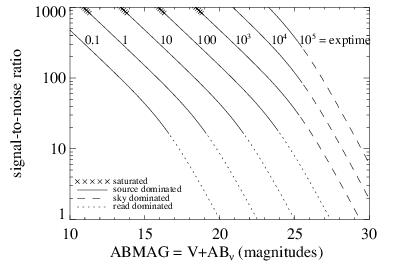

Figure A.56: Point source S/N vs. V+ABν for the F475X filter, assuming high sky backgrounds and a 5 × 5 pixel aperture.

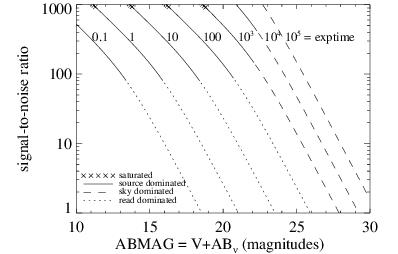

Figure A.57: Extended source S/N vs. V+ABν for the F475X filter, assuming high sky backgrounds and a source uniformly filling a 1 arcsec2 aperture.
-
