UVIS FQ727N
Description
CH4 7270 filter.

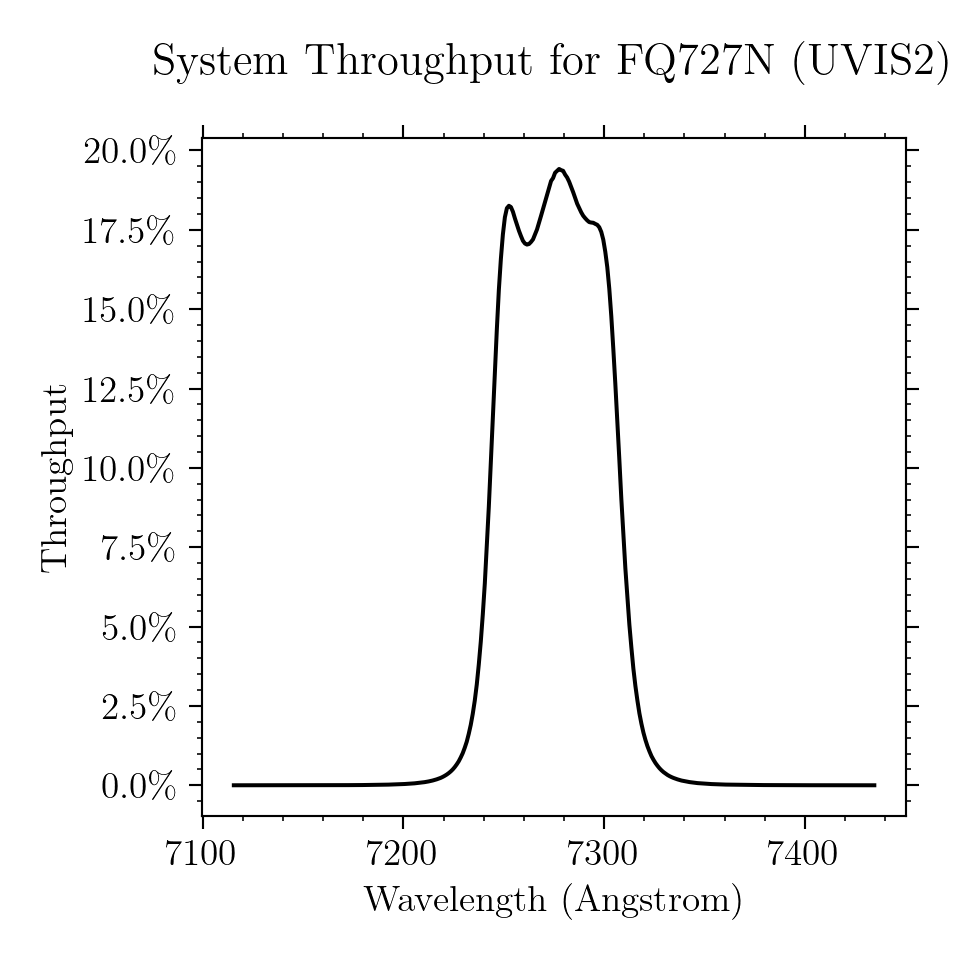

Figure A.169: Integrated system throughput for FQ727N.

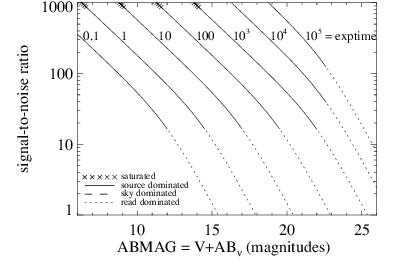

Figure A.170: Point source S/N vs. V+ABν for the FQ727N filter, assuming high sky backgrounds and a 5 × 5 pixel aperture.

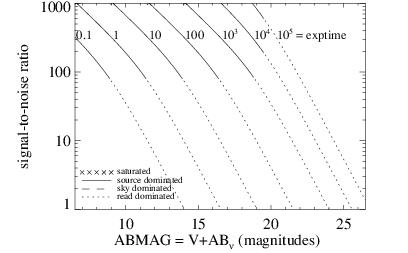

Figure A.171: Extended source S/N vs. V+ABν for the FQ727N filter, assuming high sky backgrounds and a source uniformly filling a 1 arcsec2 aperture.
-
