UVIS FQ232N

Description
C II] 2326 filter.

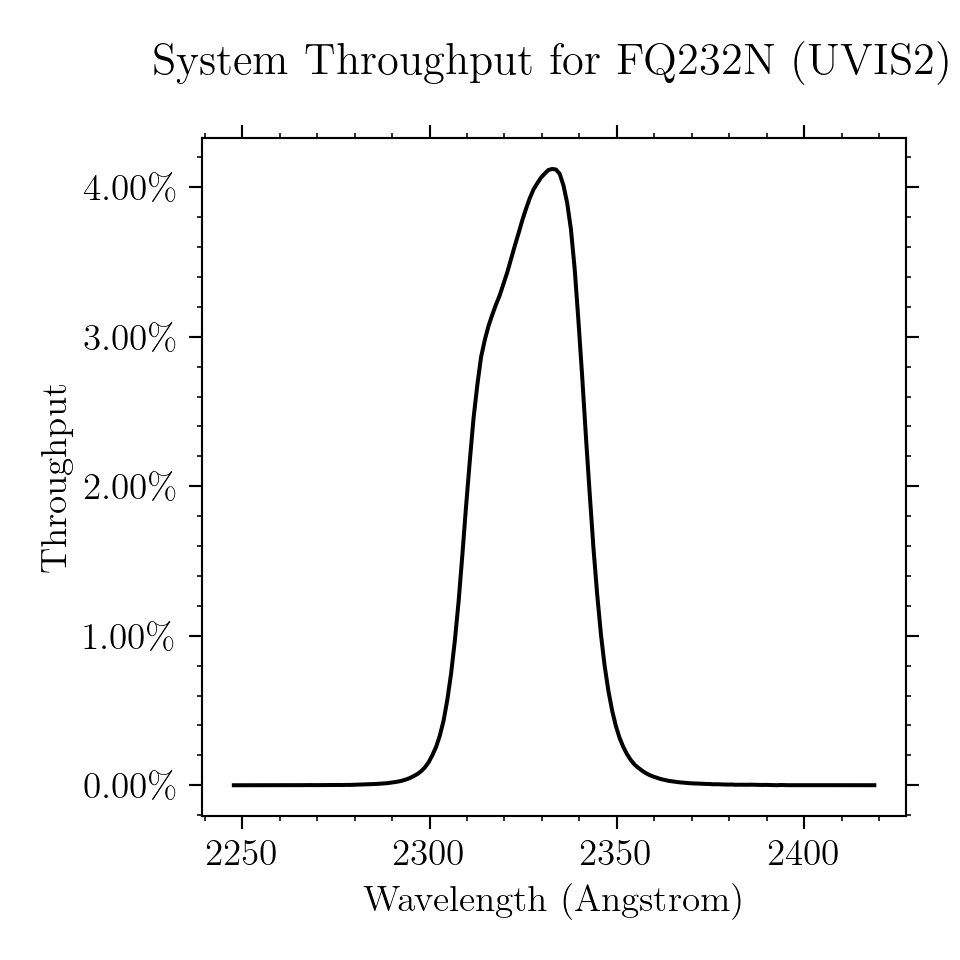

Figure A.127: Integrated system throughput for FQ232N.

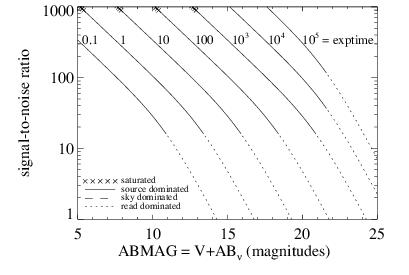

Figure A.128: Point source S/N vs. V+ABν for the FQ232N filter, assuming high sky backgrounds and a 5 × 5 pixel aperture.

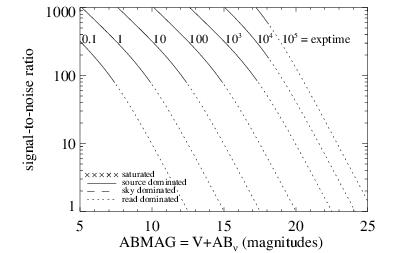

Figure A.129: Extended source S/N vs. V+ABν for the FQ232N filter, assuming high sky backgrounds and a source uniformly filling a 1 arcsecaperture.
