UVIS F775W
Description
Sloan Digital Sky Survey i′ filter.

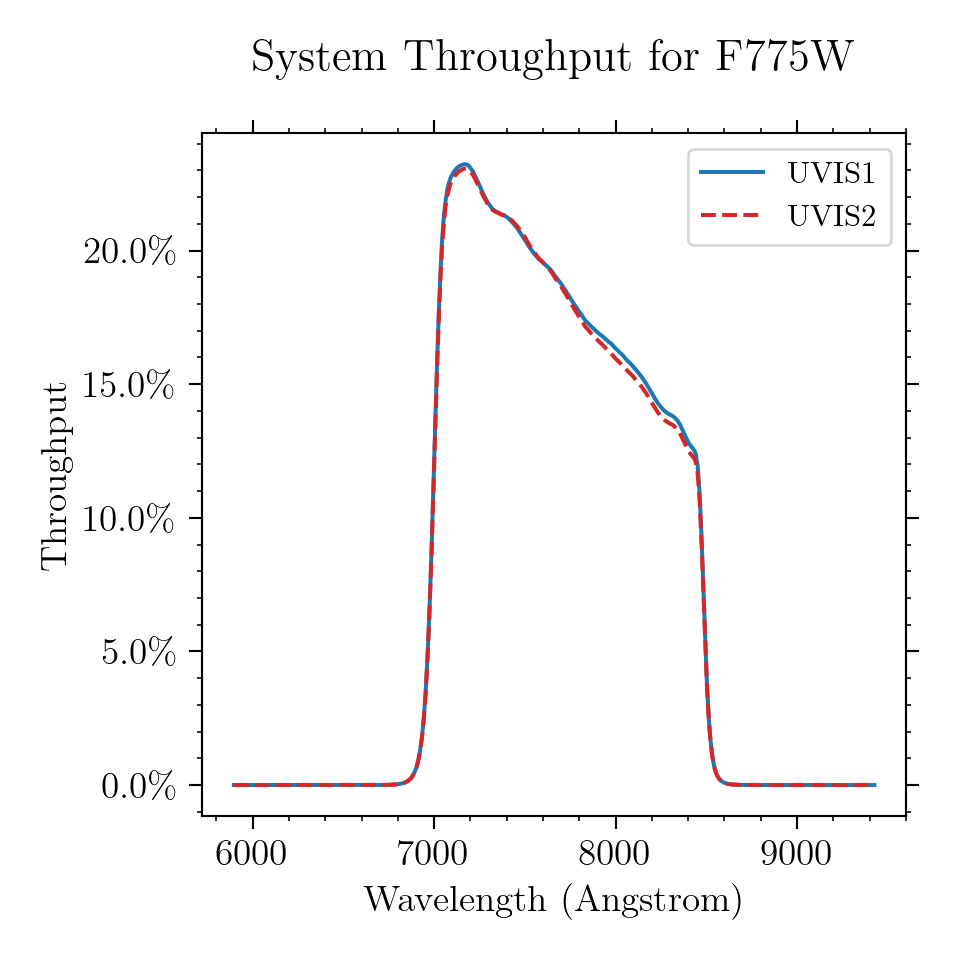

Figure A.112: Integrated system throughput for F775W.

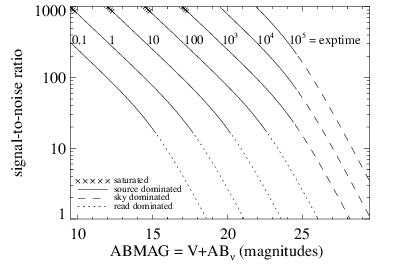

Figure A.113: Point source S/N vs. V+ABν for the F775W filter, assuming high sky backgrounds and a 5 × 5 pixel aperture.

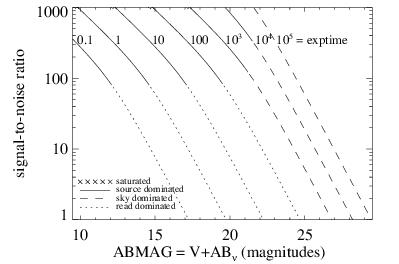

Figure A.114: Extended source S/N vs. V+ABν for the F775W filter, assuming high sky backgrounds and a source uniformly filling a 1 arcsec2 aperture.
-
