IR F140W
Description
Wide JH gap; red grism reference filter.

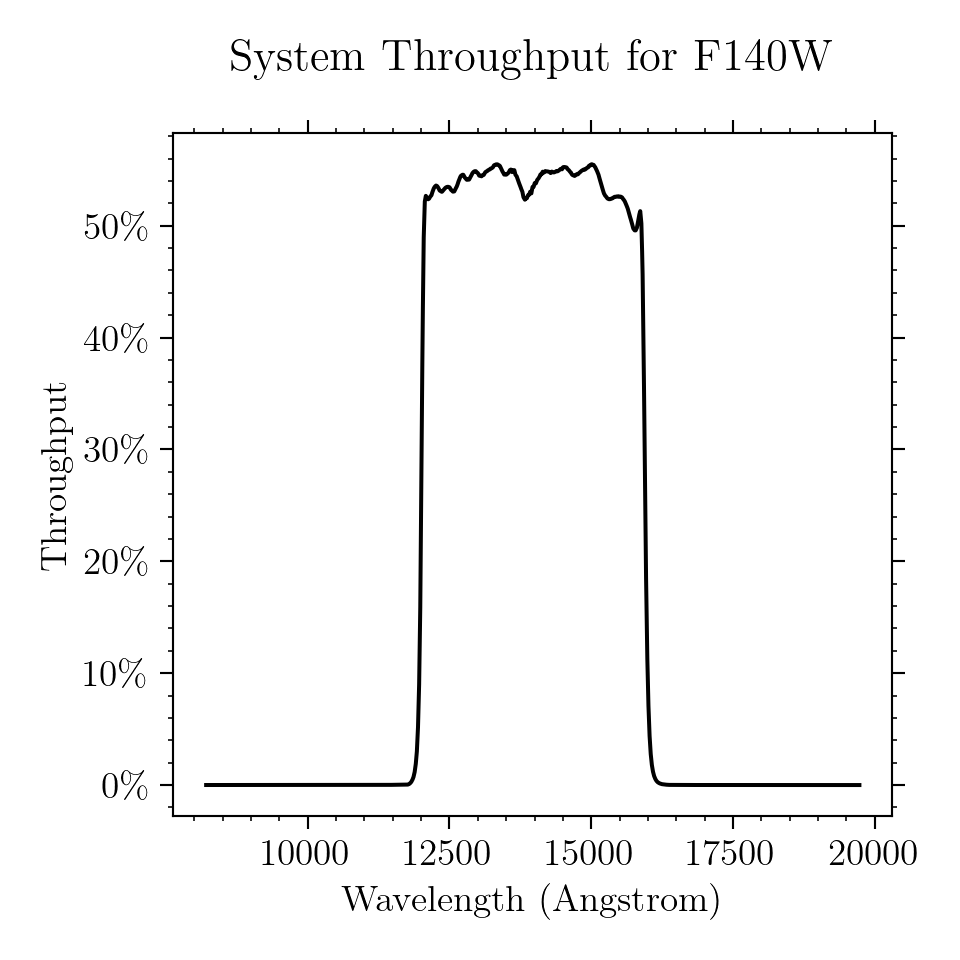

Figure A.217: Integrated system throughput for F140W.

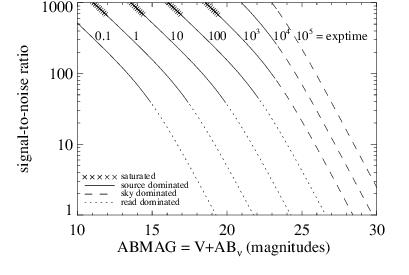

Figure A.218: Point source S/N vs. V+ABν for the F140W filter, assuming high sky backgrounds and a 3 × 3 pixel aperture.

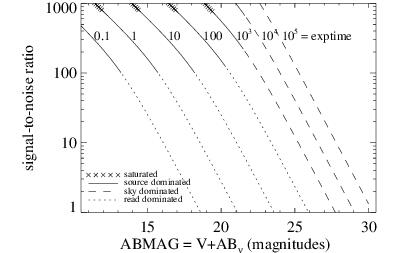

Figure A.219: Extended source S/N vs. V+ABν for the F140W filter, assuming high sky backgrounds and a source uniformly filling a 1 arcsec2 aperture.
-
