IR F139M
Description
H2O/CH4 line filter.

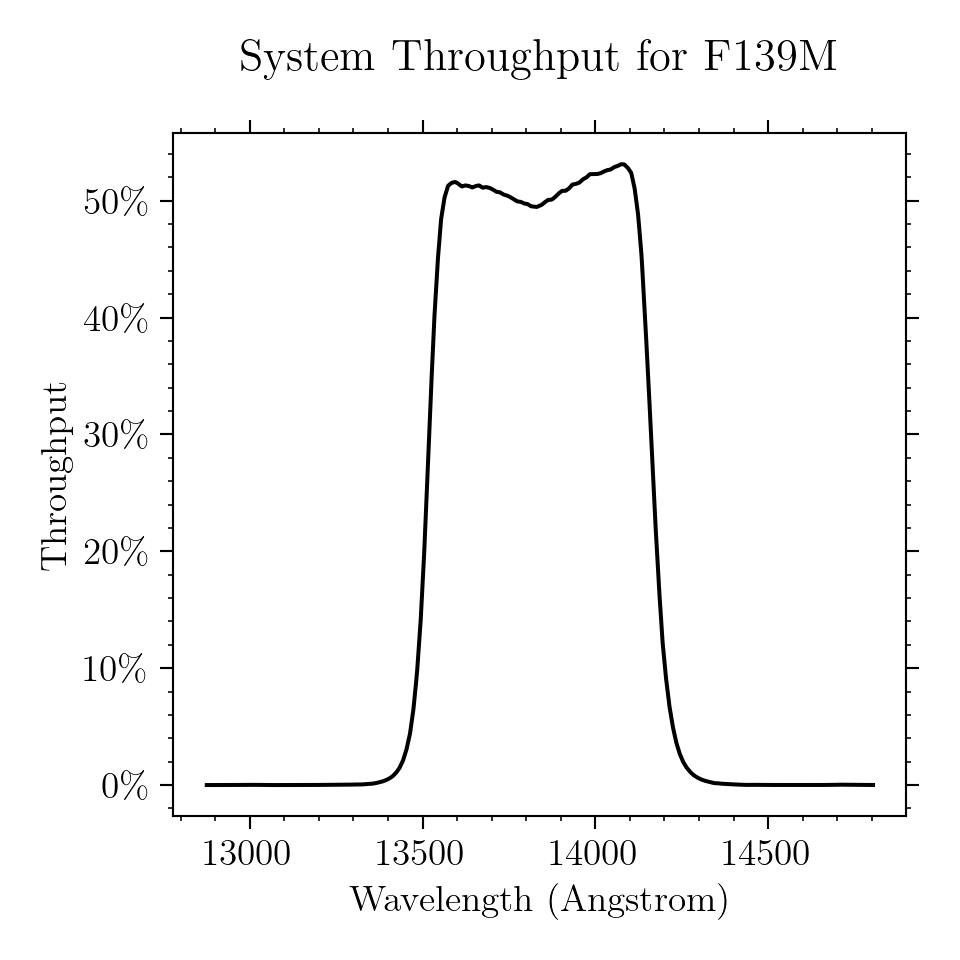

Figure A.214: Integrated system throughput for F139M.

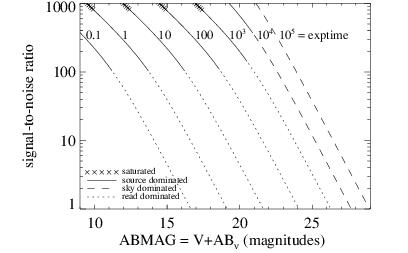

Figure A.215: Point source S/N vs. V+ABν for the F139M filter, assuming high sky backgrounds and a 3 × 3 pixel aperture.

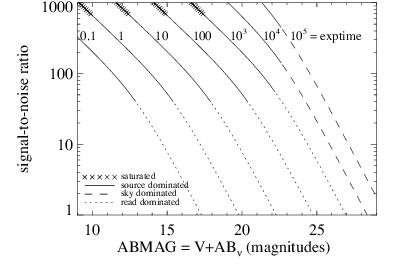

Figure A.216: Extended source S/N vs. V+ABν for the F139M filter, assuming high sky backgrounds and a source uniformly filling a 1 arcsec2 aperture.
-
