UVIS FQ674N
Description
[S II] 6731 filter.

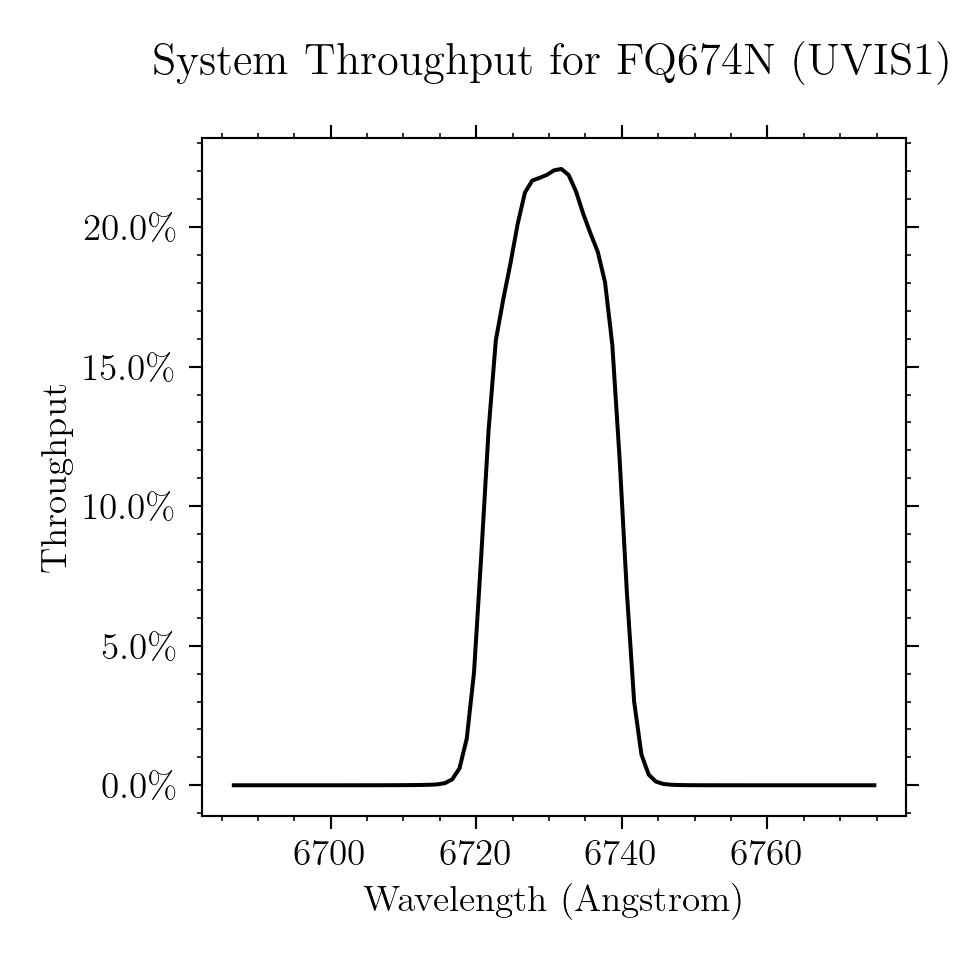

Figure A.166: Integrated system throughput for FQ674N.

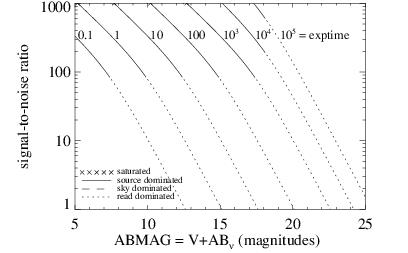

Figure A.167: Point source S/N vs. V+ABν for the FQ674N filter, assuming high sky backgrounds and a 5 × 5 pixel aperture.

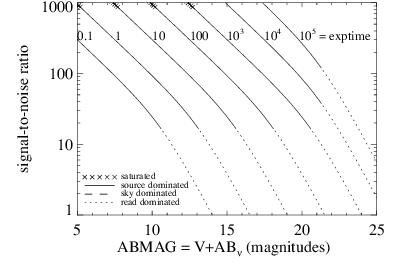

Figure A.168: Extended source S/N vs. V+ABν for the FQ674N filter, assuming high sky backgrounds and a source uniformly filling a 1 arcsec2 aperture.
-
