UVIS F555W
Description
WFPC2 V filter.

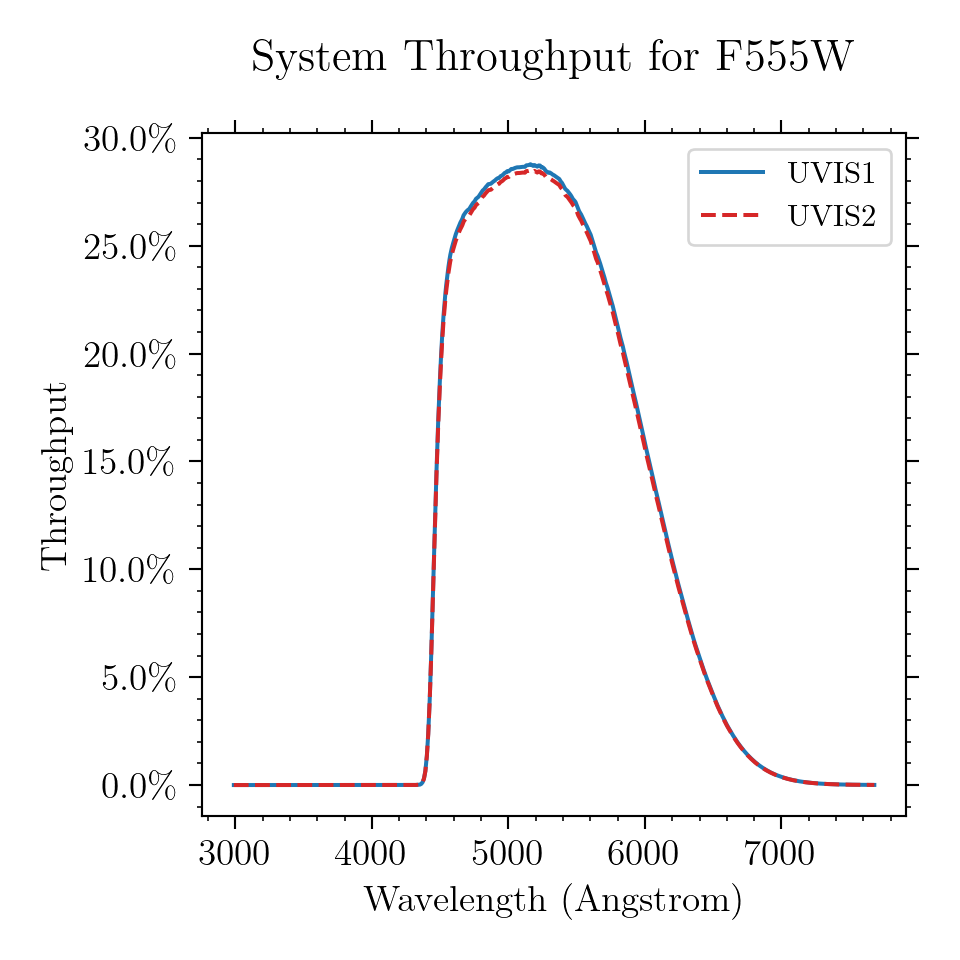

Figure A.67: Integrated system throughput for F555W.

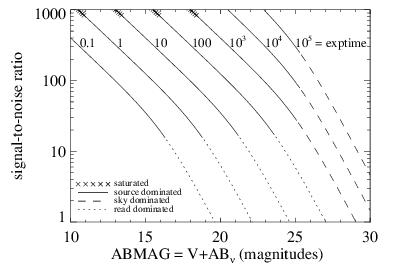

Figure A.68: Point source S/N vs. V+ABν for the F555W filter, assuming high sky backgrounds and a 5 × 5 pixel aperture.

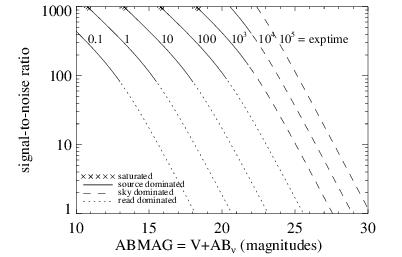

Figure A.69: Extended source S/N vs. V+ABν for the F555W filter, assuming high sky backgrounds and a source uniformly filling a 1 arcsec2 aperture.
-
