UVIS F467M
Description
Strömgren b filter.

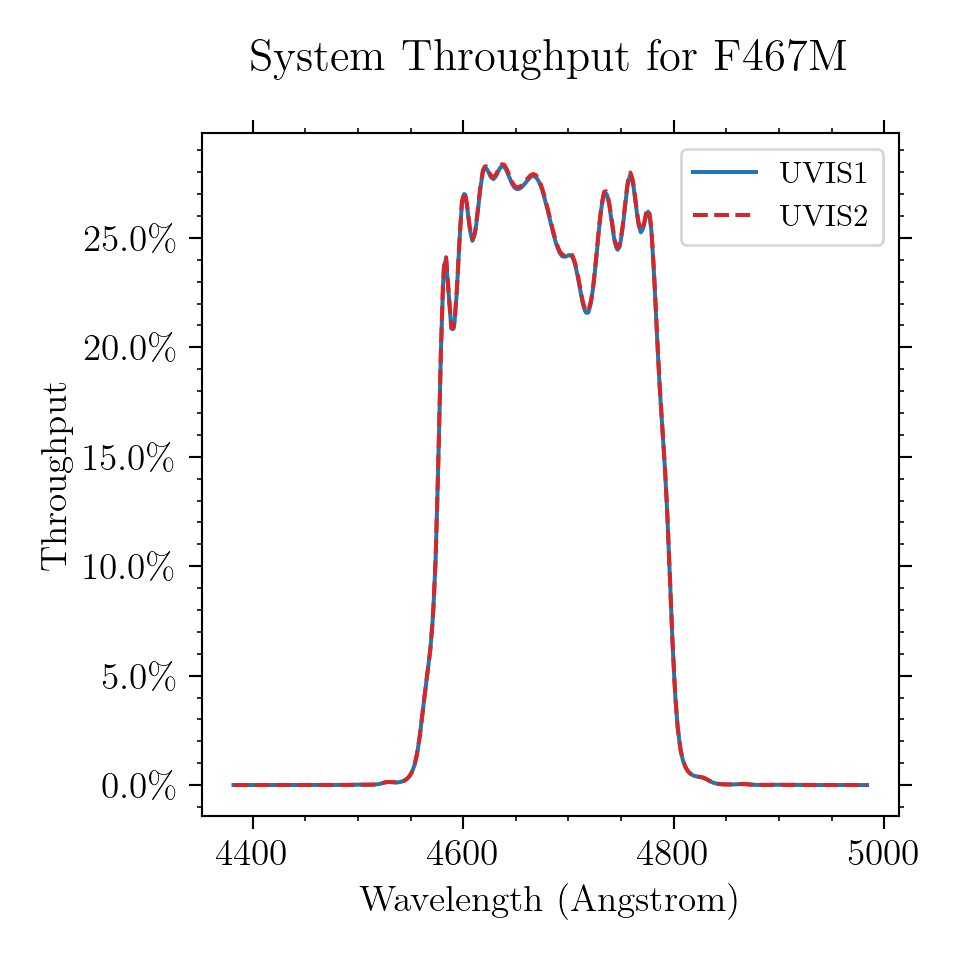

Figure A.46: Integrated system throughput for F467M.

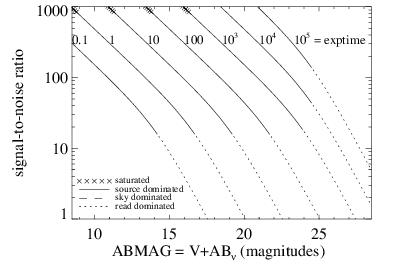

Figure A.47: Point Source S/N vs. V+ABν for the F467M filter, assuming high sky backgrounds and a 5 × 5 pixel aperture.

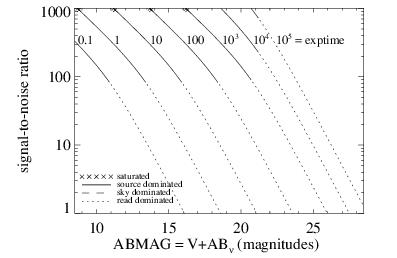

Figure A.48: Extended Source S/N vs. V+ABν for the F467M filter, assuming high sky backgrounds and a source uniformly filling a 1 arcsec2 aperture.
-
