UVIS F680N
Description
z (Hα + [N II]) filter.

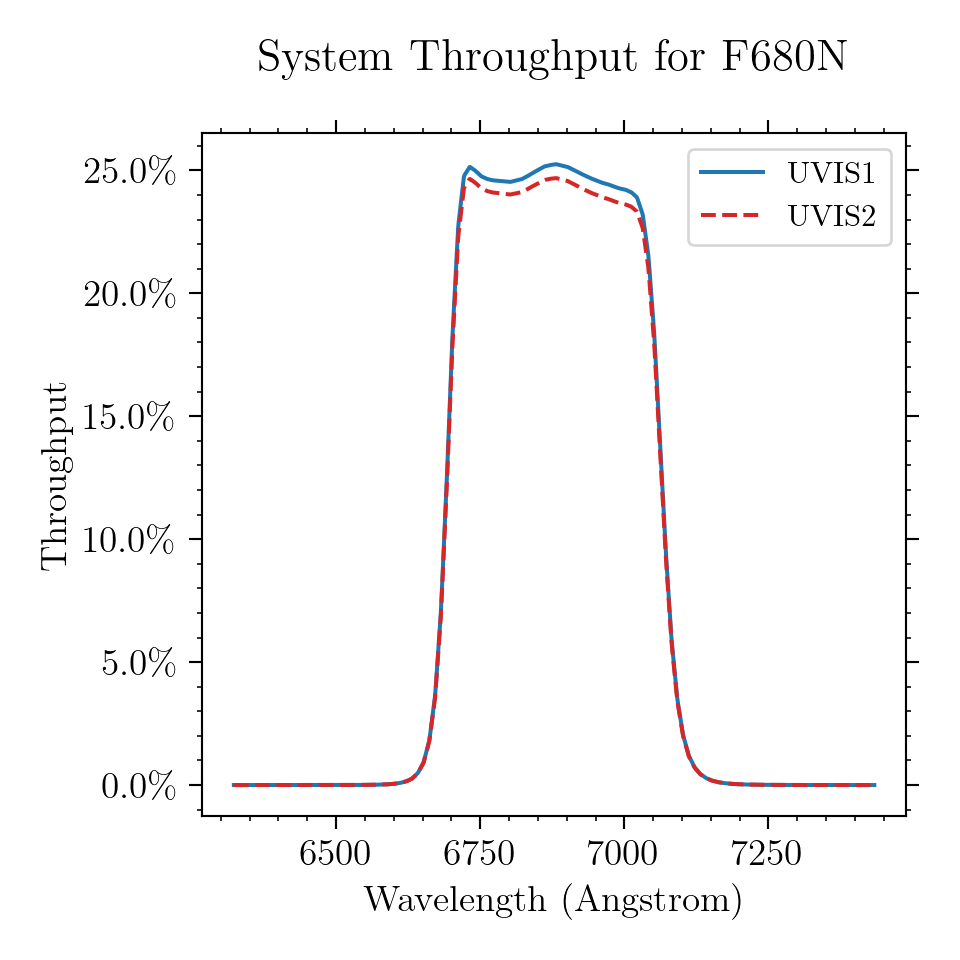

Figure A.103: Integrated system throughput for F680N.

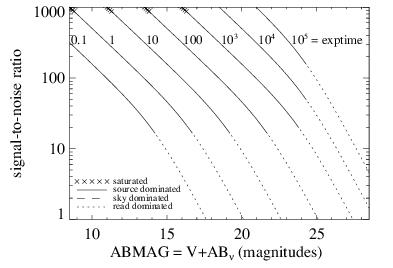

Figure A.104: Point source S/N vs. V+ABν for the F680N filter, assuming high sky backgrounds and a 5 × 5 pixel aperture.

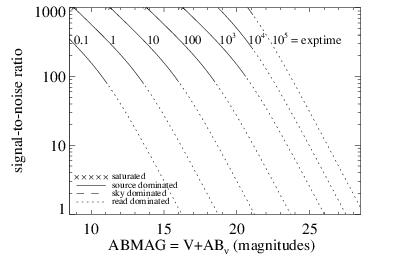

Figure A.105: Extended source S/N vs. V+ABν for the F680N filter, assuming high sky backgrounds and a source uniformly filling a 1 arcsec2 aperture.
-
