UVIS FQ672N
Description
[S II] 6717 filter.

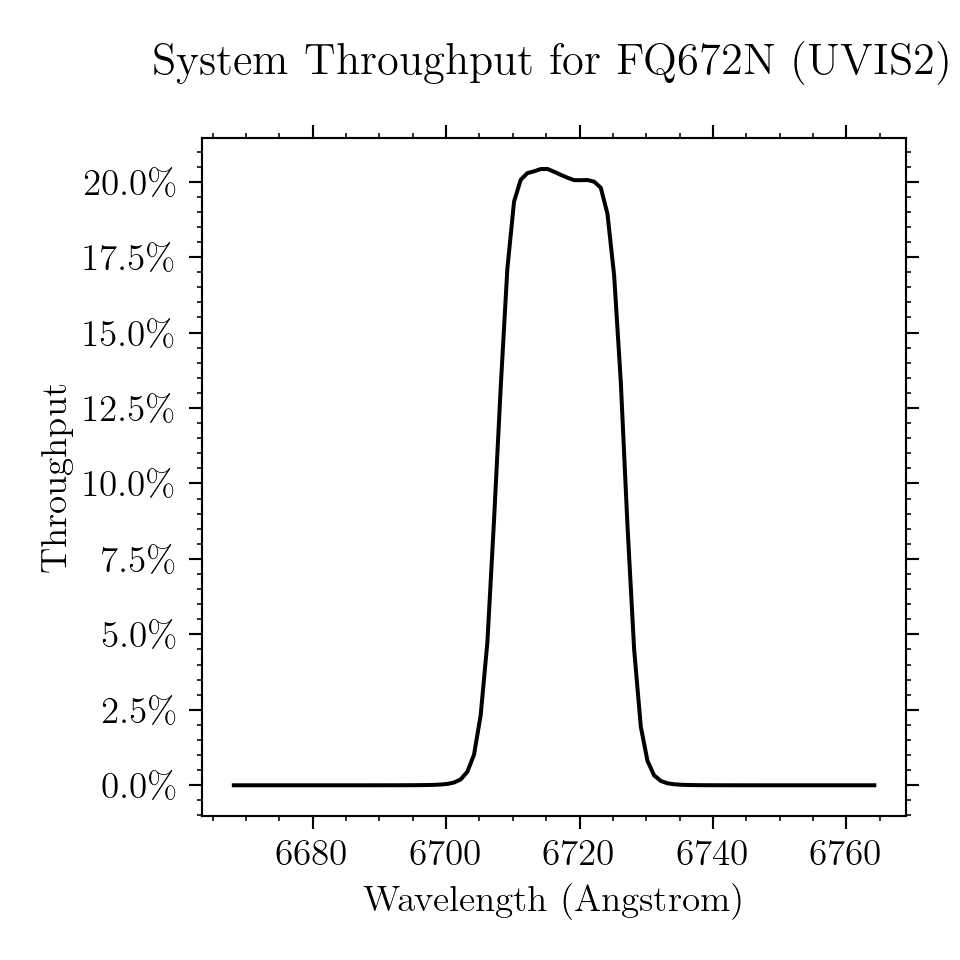

Figure A.163: Integrated system throughput for FQ672N.

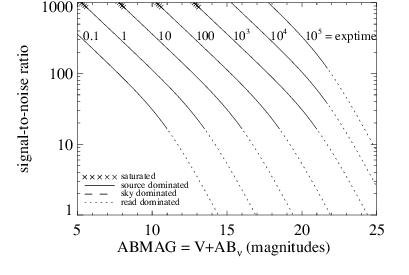

Figure A.164: Point source S/N vs. V+ABν for the FQ672N filter, assuming high sky backgrounds and a 5 × 5 pixel aperture.

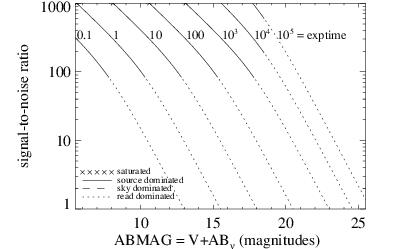

Figure A.165: Extended source S/N vs. V+ABν for the FQ672N filter, assuming high sky backgrounds and a source uniformly filling a 1 arcsec2 aperture.
-
