UVIS F814W
Description
WFPC2 Wide I filter.

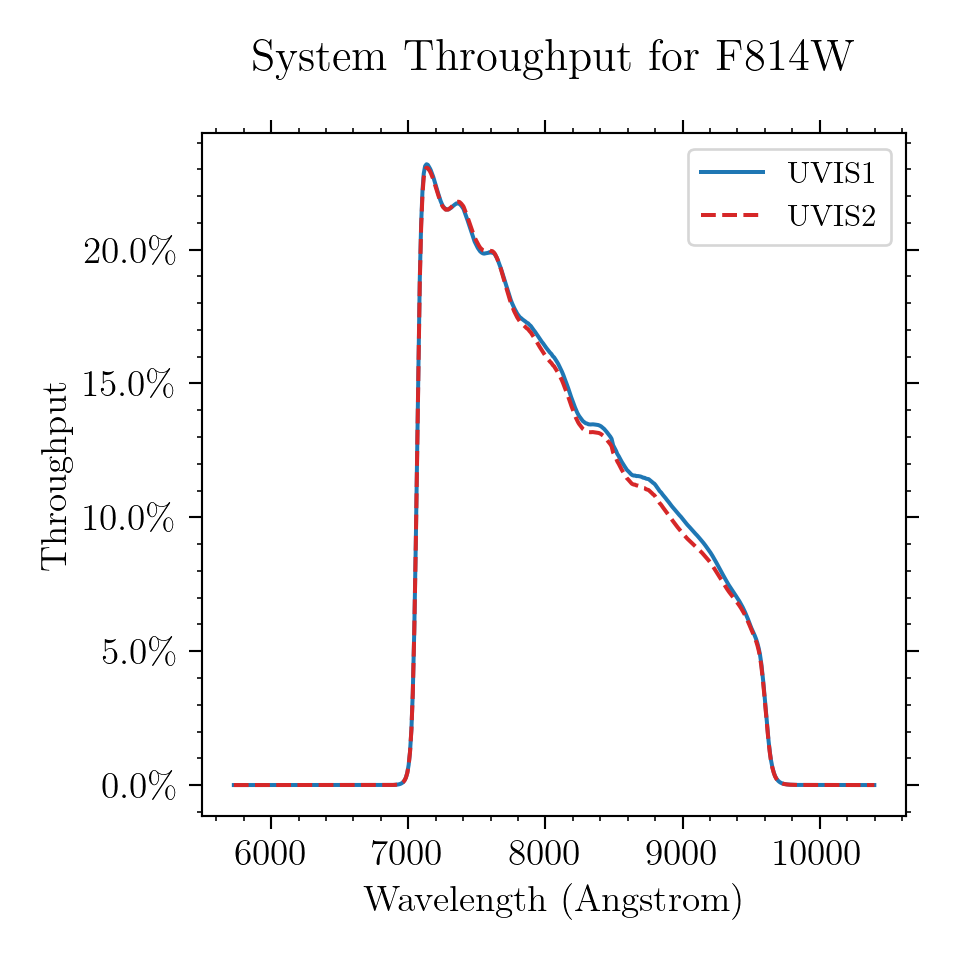

Figure A.115: Integrated system throughput for F814W.

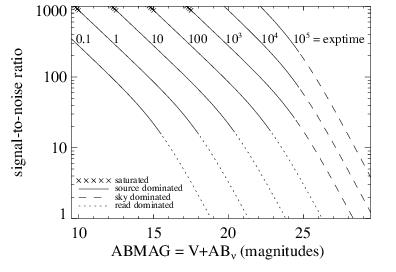

Figure A.116: Point source S/N vs. V+ABν for the F814W filter, assuming high sky backgrounds and a 5 × 5 pixel aperture.

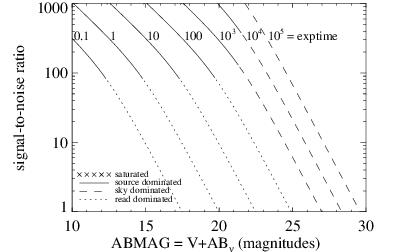

Figure A.117: Extended source S/N vs. V+ABν for the F814W filter, assuming high sky backgrounds and a source uniformly filling a 1 arcsec2 aperture.
-
