UVIS F658N

Description
[N II] 6583 filter.

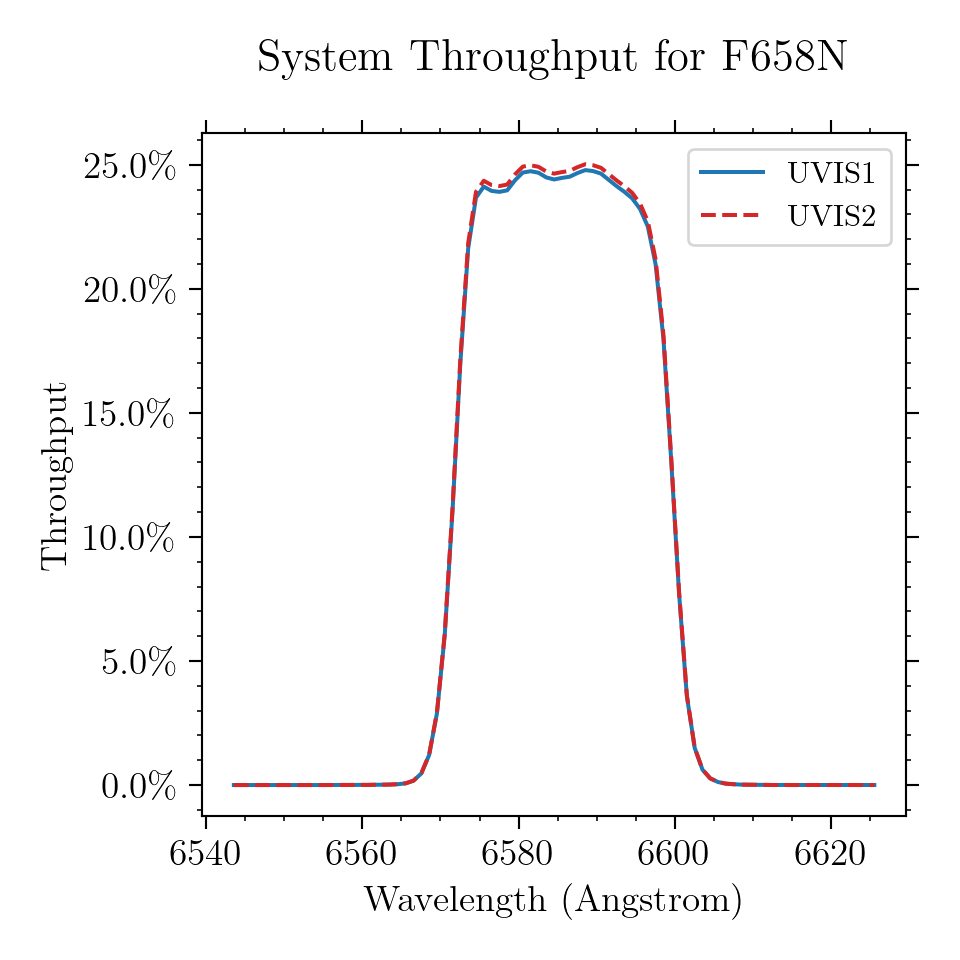

Figure A.94: Integrated system throughput for F658N.

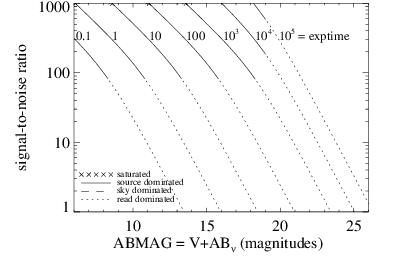

Figure A.95: Point source S/N vs. V+ABν for the F658N filter, assuming high sky backgrounds and a 5 × 5 pixel aperture.

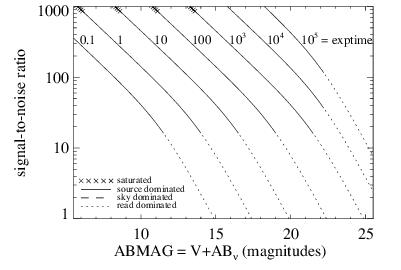

Figure A.96: Extended source S/N vs. V+ABν for the F658N filter, assuming high sky backgrounds and a source uniformly filling a 1 arcsecaperture.
