IR F105W
Description
Wide Y filter.

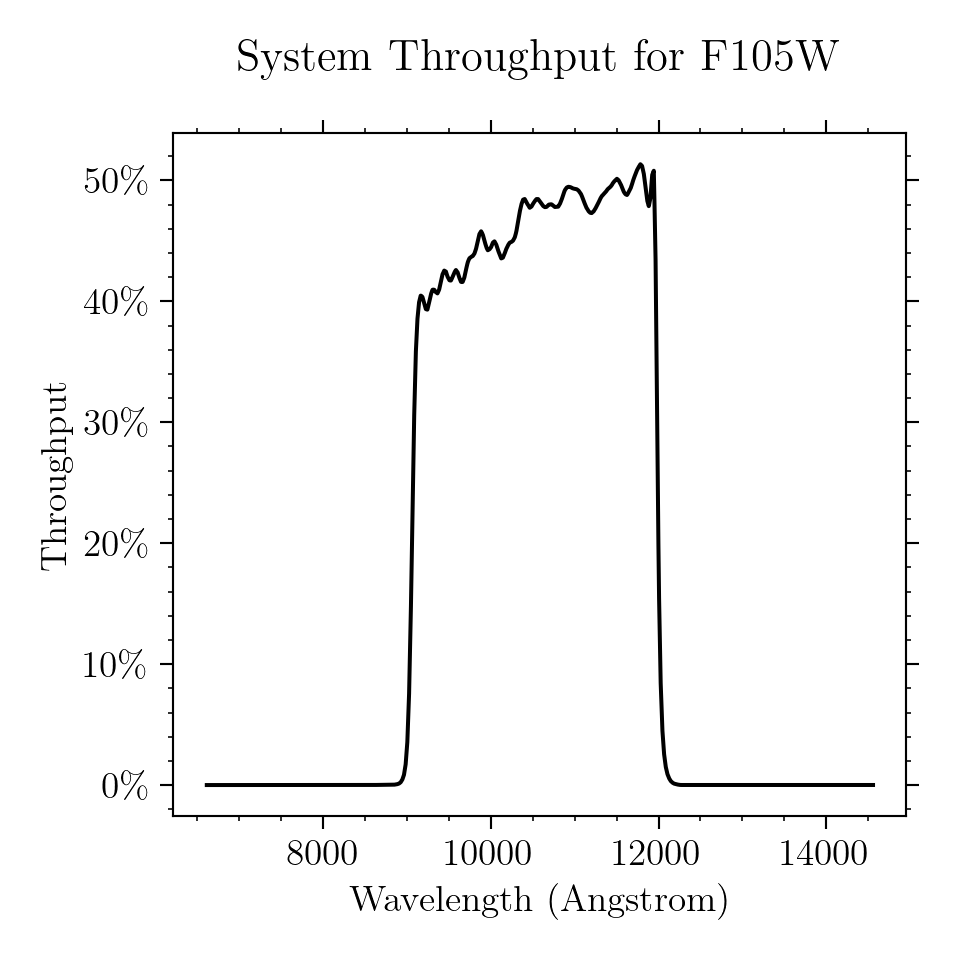

Figure A.190: Integrated system throughput for F105W.

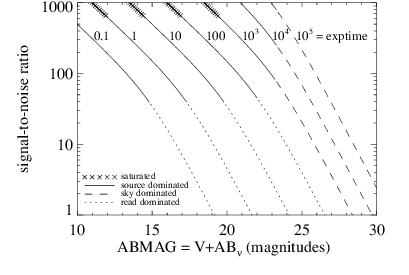

Figure A.191: Point source S/N vs. V+ABν for the F105W filter, assuming high sky backgrounds and a 3 × 3 pixel aperture.

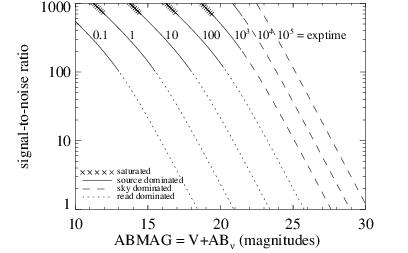

Figure A.192: Extended source S/N vs. V+ABν for the F105W filter, assuming high sky backgrounds and a source uniformly filling a 1 arcsec2 aperture.
-
