UVIS F625W
Description
Sloan Digital Sky Survey r′ filter.

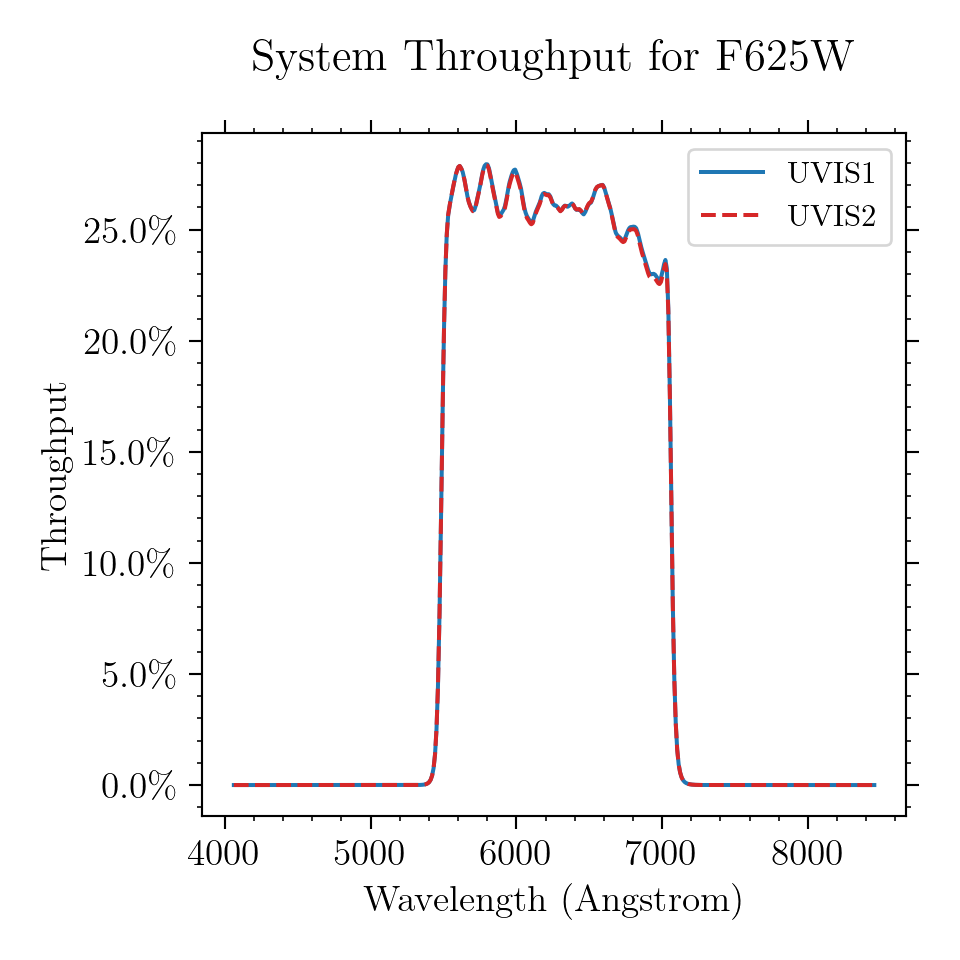

Figure A.79: Integrated system throughput for F625W.

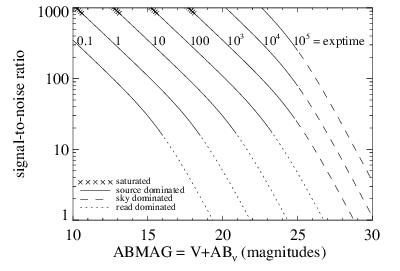

Figure A.80: Point source S/N vs. V+ABν for the F625W filter, assuming high sky backgrounds and a 5 × 5 pixel aperture.

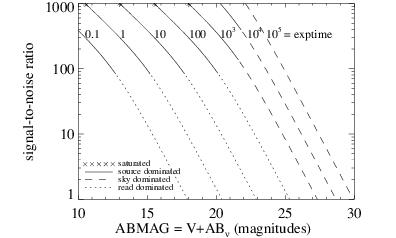

Figure A.81: Extended source S/N vs. V+ABν for the F625W filter, assuming high sky backgrounds and a source uniformly filling a 1 arcsec2 aperture.
-
