IR F127M
Description
H2O/CH4 continuum filter.

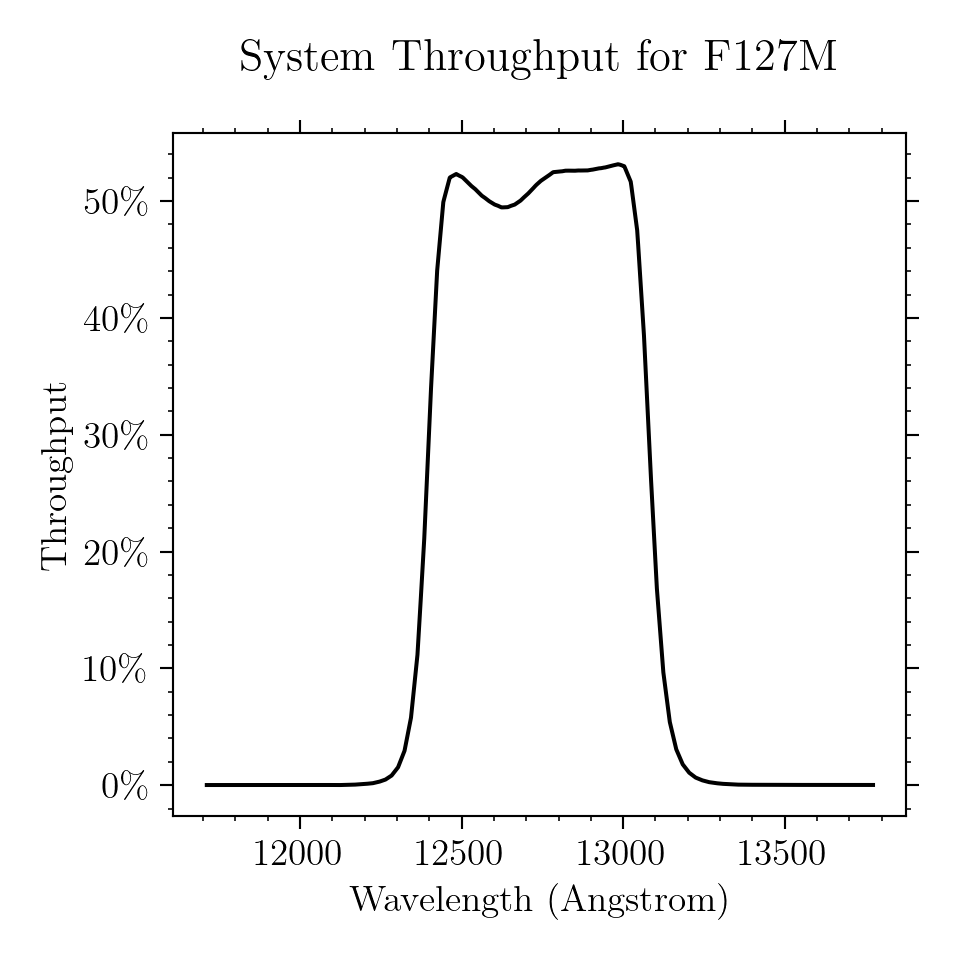

Figure A.202: Integrated system throughput for F127M.

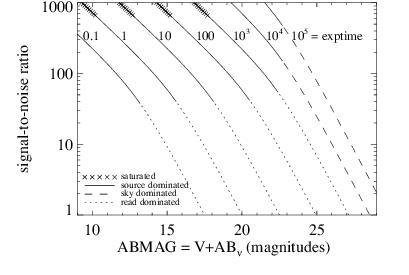

Figure A.203: Point source S/N vs. V+ABν for the F127M filter, assuming high sky backgrounds and a 3 × 3 pixel aperture.

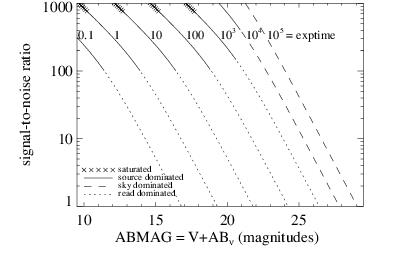

Figure A.204: Extended source S/N vs. V+ABν for the F127M filter, assuming high sky backgrounds and a source uniformly filling a 1 arcsec2 aperture.
-
