IR F160W
Description
WFC3 H filter.

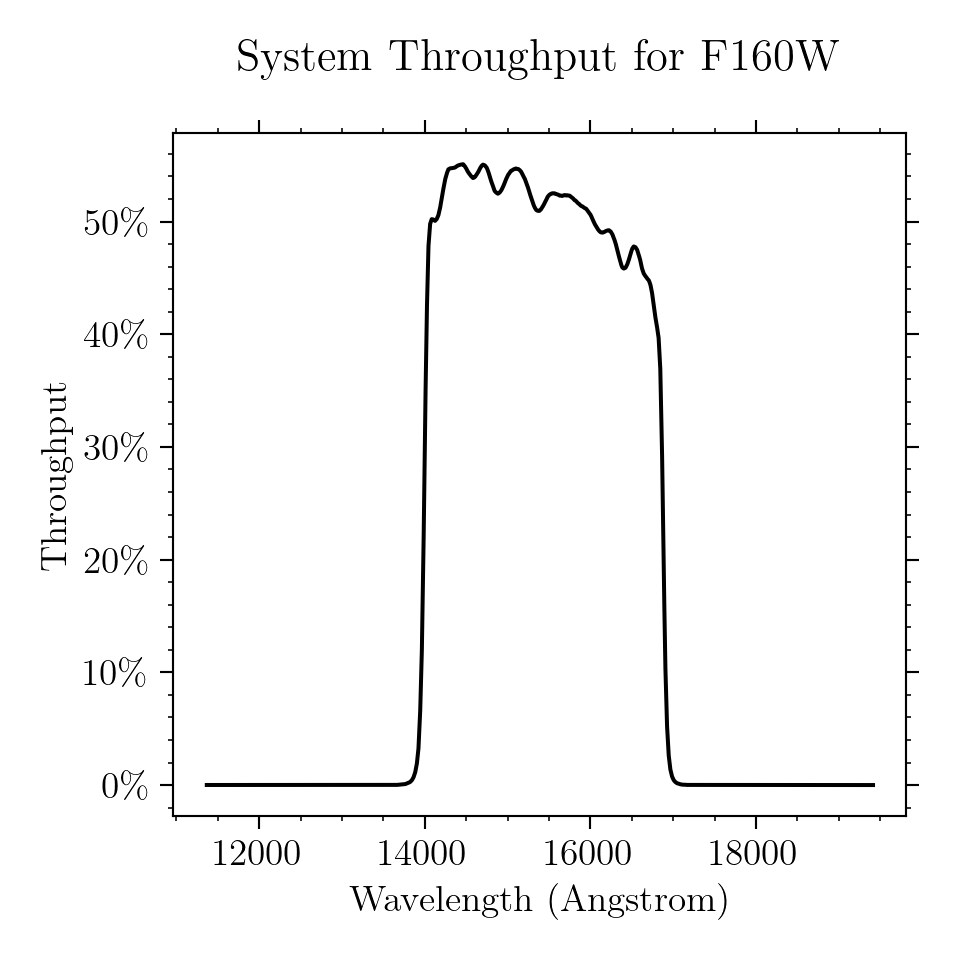

Figure A.223: Integrated system throughput for F160W.

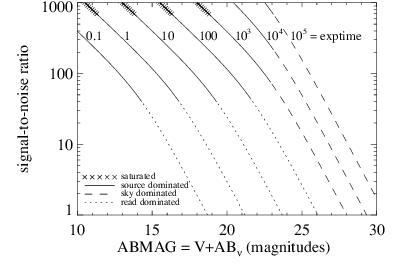

Figure A.224: Point source S/N vs. V+ABν for the F160W filter, assuming high sky backgrounds and a 3 × 3 pixel aperture.

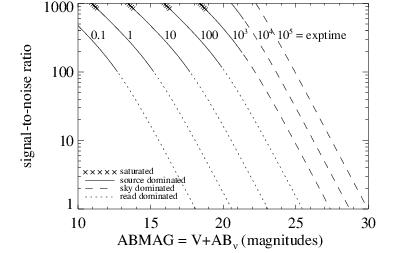

Figure A.225: Extended source S/N vs. V+ABν for the F160W filter, assuming high sky backgrounds and a source uniformly filling a 1 arcsec2 aperture.
-
