UVIS F200LP
Description
Clear.

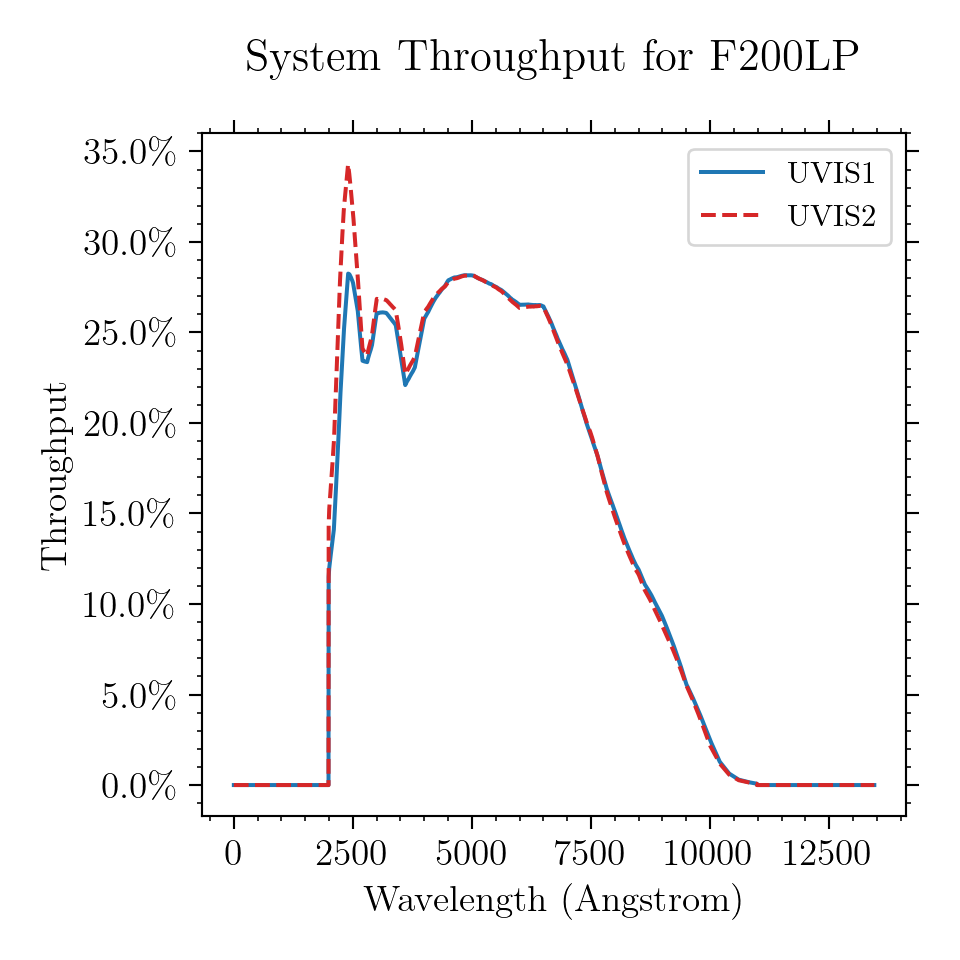

Figure A.1: Integrated system throughput for F200LP.

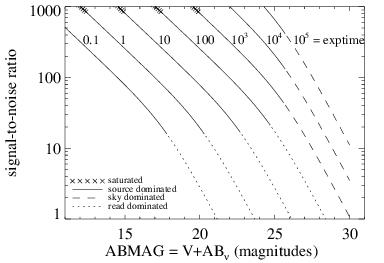

Figure A.2: Point source S/N vs. V+ABν for the F200LP filter, assuming high sky backgrounds and a 5 × 5 pixel aperture.

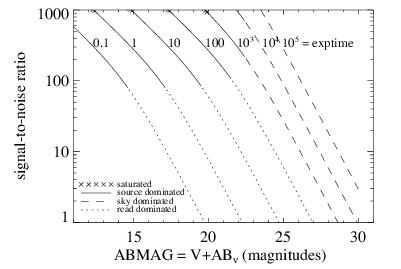

Figure A.3: Extended source S/N vs. V+ABν for the F200LP filter, assuming high sky backgrounds and a source uniformly filling a 1 arcsec2 aperture.
-
