UVIS F656N
Description
Hα 6562 filter.

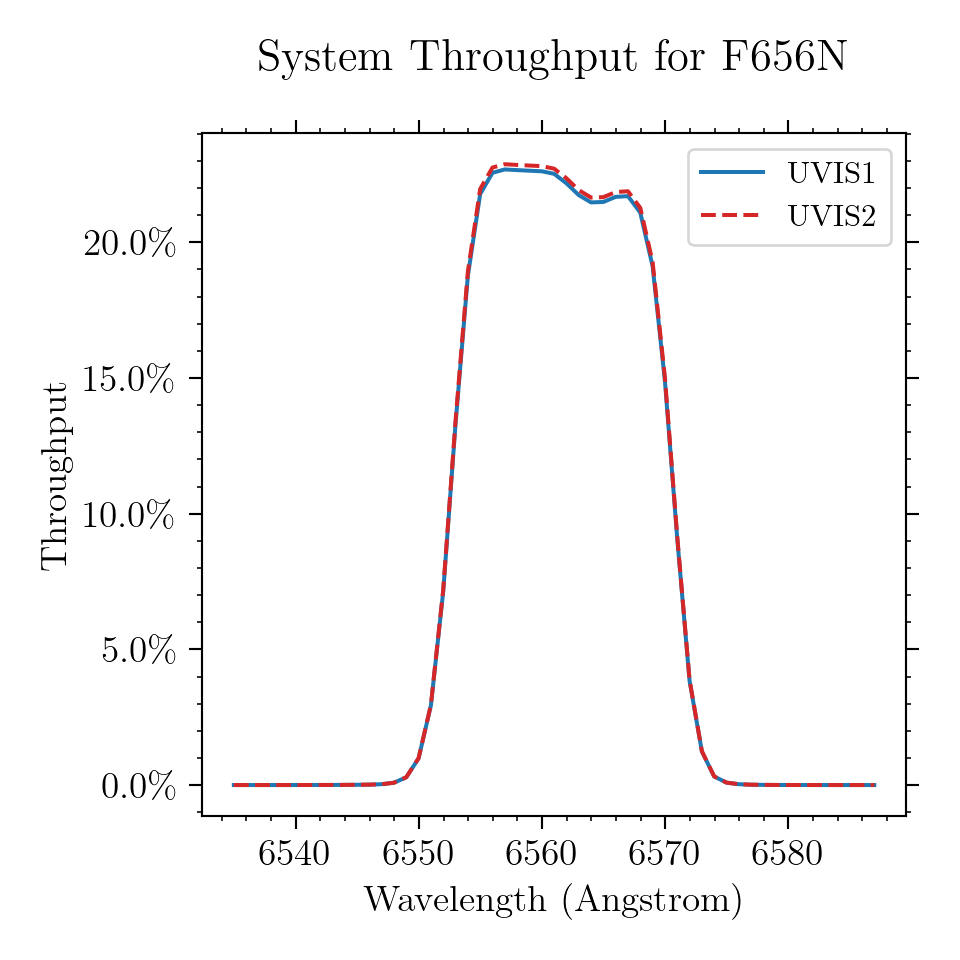

Figure A.88: Integrated system throughput for F656N.

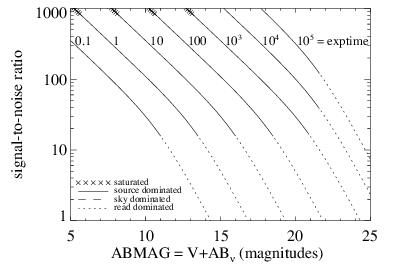

Figure A.89: Point source S/N vs. V+ABν for the F656N filter, assuming high sky backgrounds and a 5 × 5 pixel aperture.

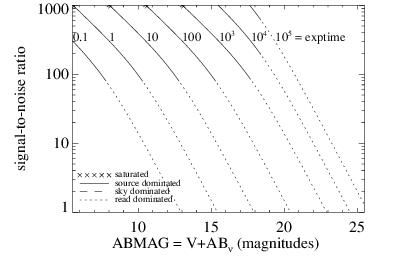

Figure A.90: Extended source S/N vs. V+ABν for the F656N filter, assuming high sky backgrounds and a source uniformly filling a 1 arcsec2 aperture.
-
