UVIS F280N
Description
Mg II 2795/2802 filter.

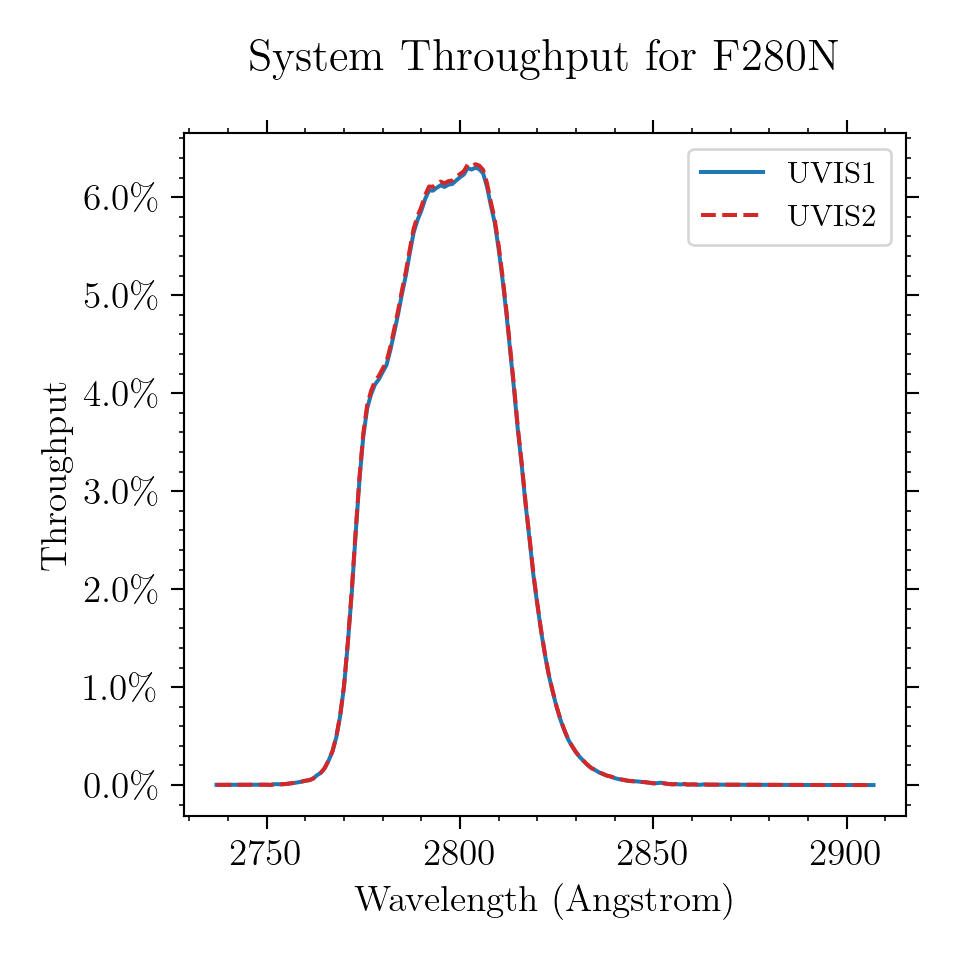

Figure A.13: Integrated system throughput for F280N.

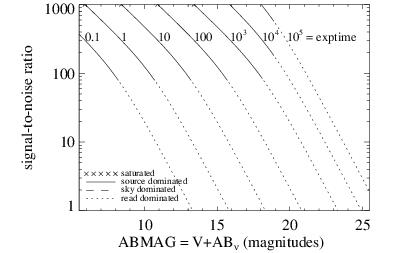

Figure A.14: Point source S/N vs. V+ABν for the F280N filter, assuming high sky backgrounds and a 5 × 5 pixel aperture.

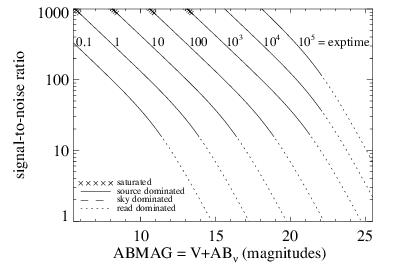

Figure A.15: Extended source S/N vs. V+ABν for the F280N filter, assuming high sky backgrounds and a source uniformly filling a 1 arcsec2 aperture.
-
