IR F125W
Description
Wide J filter.

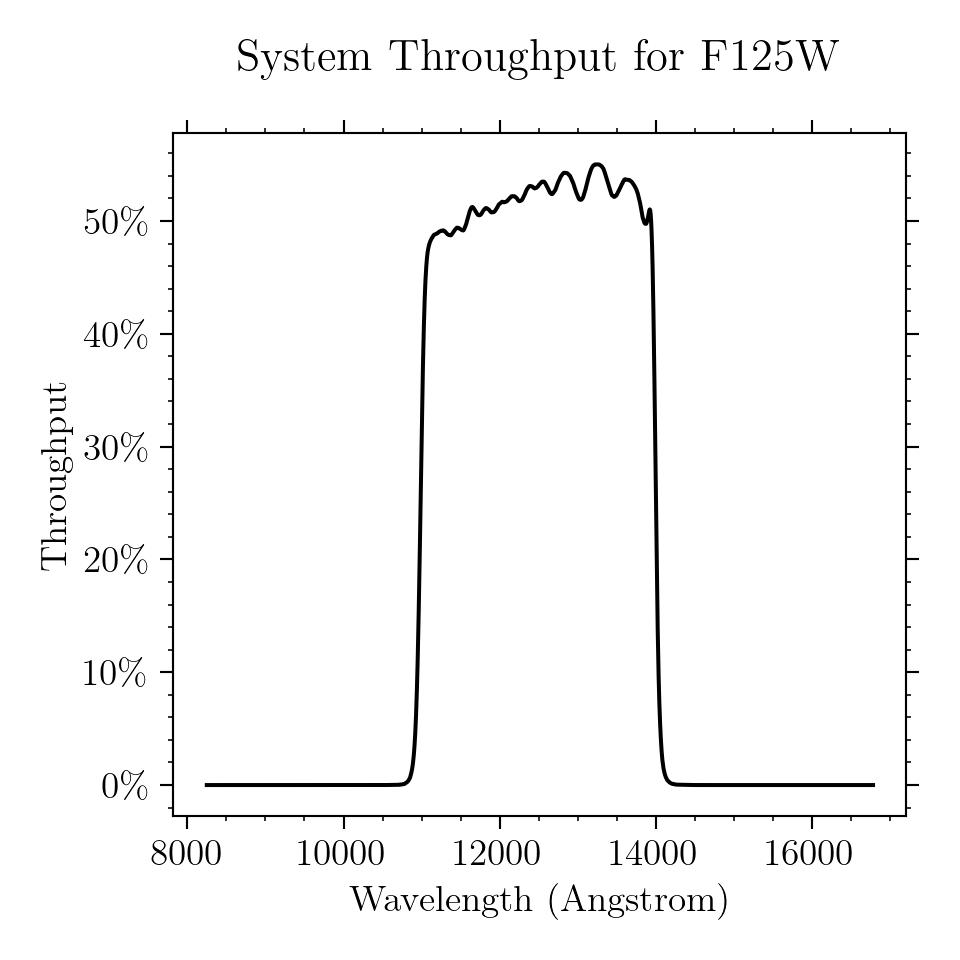

Figure A.196: Integrated system throughput for F125W.

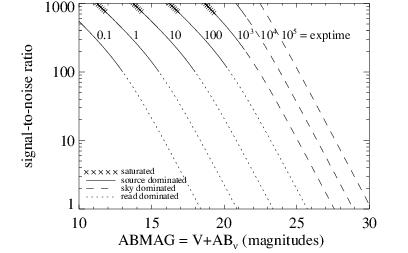

Figure A.197: Point source S/N vs. V+ABν for the F125W filter, assuming high sky backgrounds and a 3 × 3 pixel aperture.

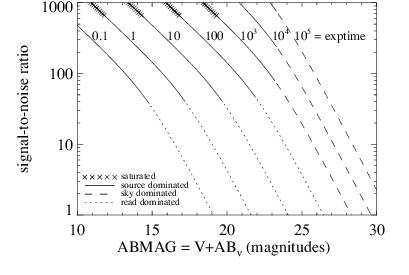

Figure A.198: Extended source S/N vs. V+ABν for the F125W filter, assuming high sky backgrounds and a source uniformly filling a 1 arcsec2 aperture.
-
