UVIS F502N
Description
[O III] 5007 filter.

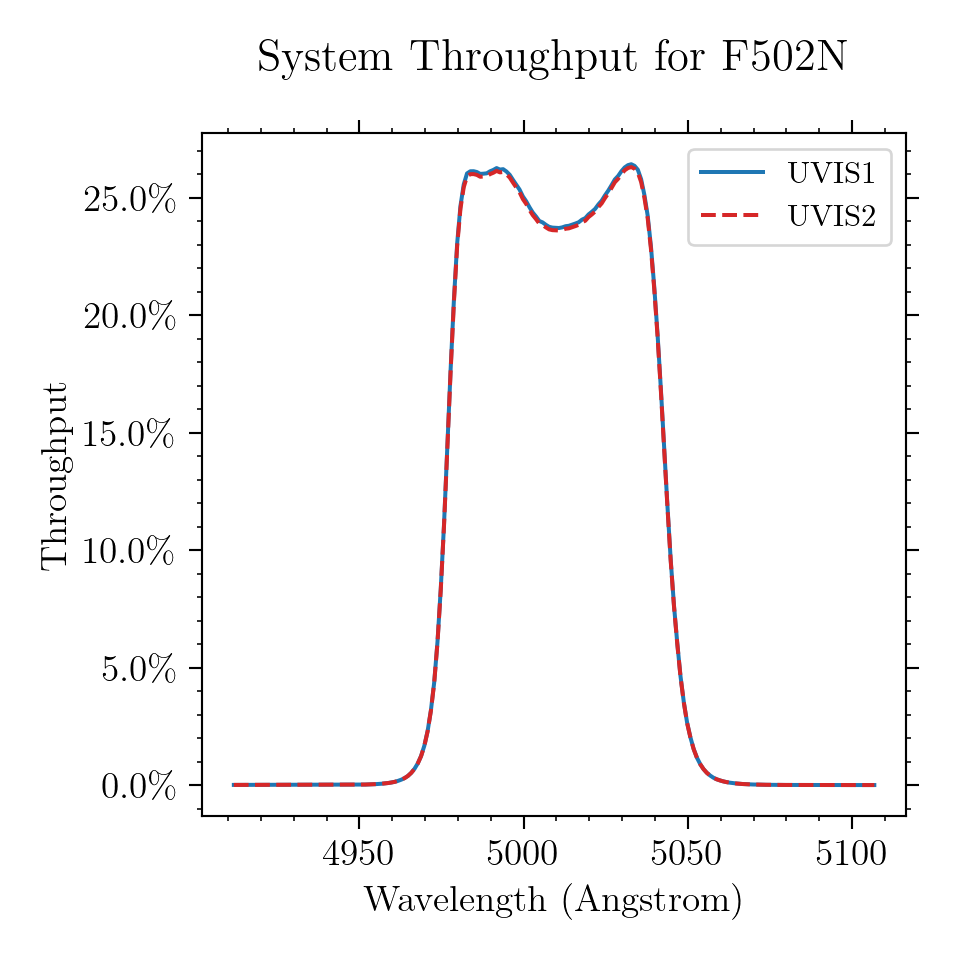

Figure A.61: Integrated system throughput for F502N.

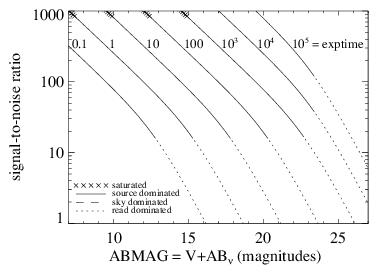

Figure A.62: Point source S/N vs. V+ABν for the F502N filter, assuming high sky backgrounds and a 5 × 5 pixel aperture.

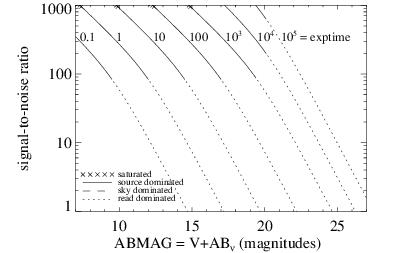

Figure A.63: Extended source S/N vs. V+ABν for the F502N filter, assuming high sky backgrounds and a source uniformly filling a 1 arcsec2 aperture.
-
