IR F128N
Description
Paschen β filter.

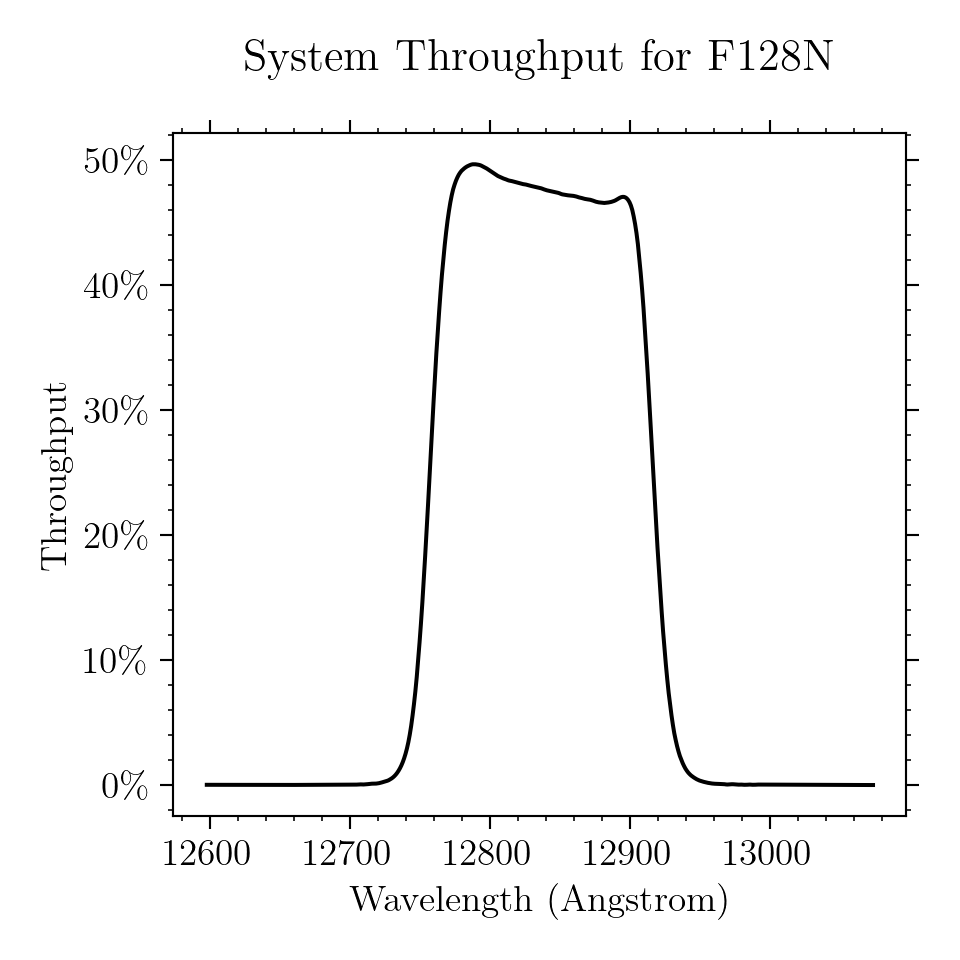

Figure A.205: Integrated system throughput for F128N.

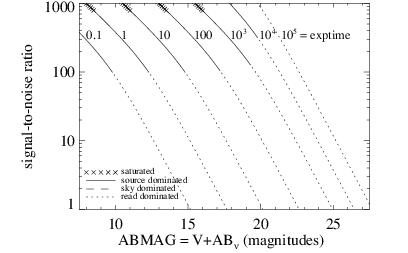

Figure A.206: Point source S/N vs. V+ABν for the F128N filter, assuming high sky backgrounds and a 3 × 3 pixel aperture.

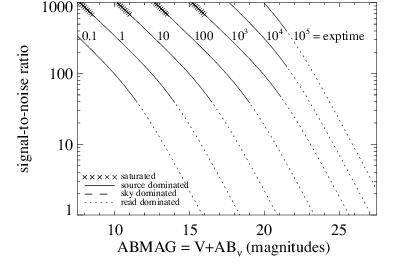

Figure A.207: Extended source S/N vs. V+ABν for the F128N filter, assuming high sky backgrounds and a source uniformly filling a 1 arcsec2 aperture.
-
