UVIS FQ436N
Description
Hγ 4340 + [O III] 4363 filter.

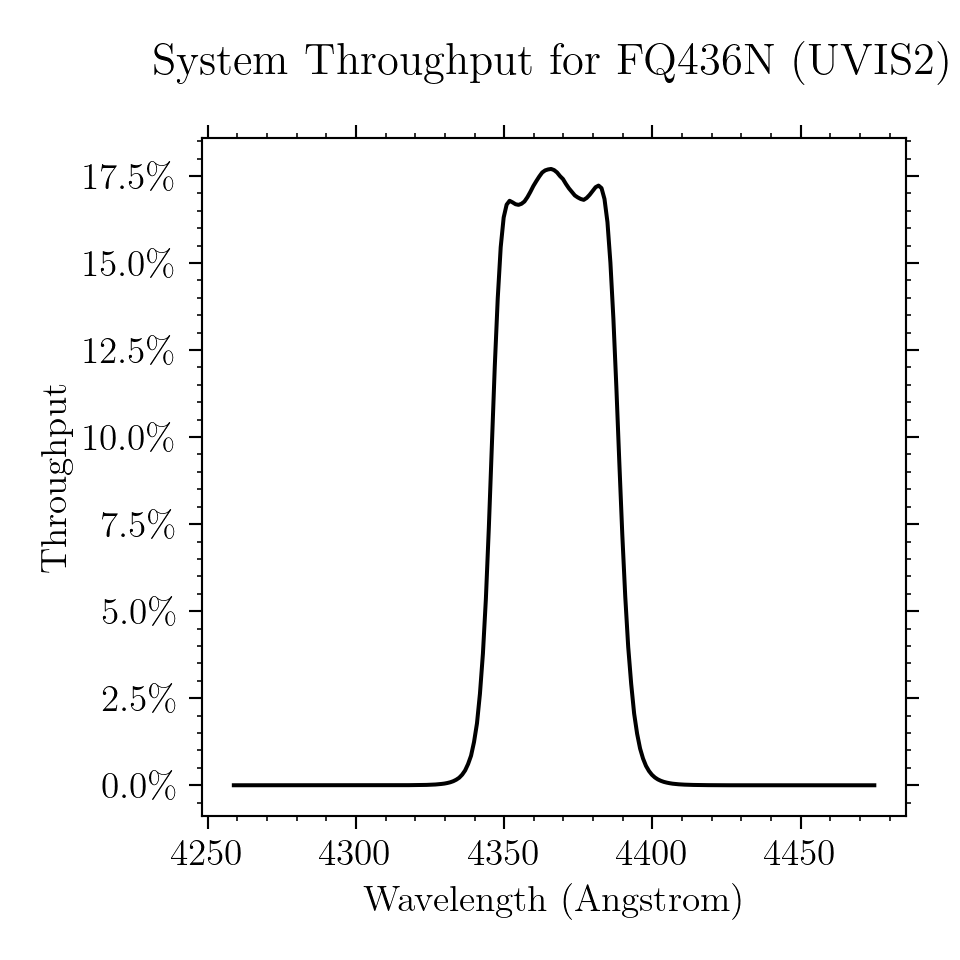

Figure A.142: Integrated system throughput for FQ436N.

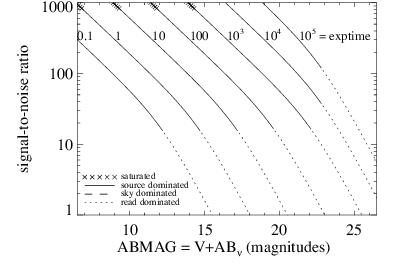

Figure A.143: Point source S/N vs. V+ABν for the FQ436N filter, assuming high sky backgrounds and a 5 × 5 pixel aperture.

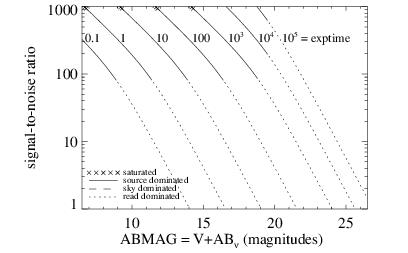

Figure A.144: Extended source S/N vs. V+ABν for the FQ436N filter, assuming high sky backgrounds and a source uniformly filling a 1 arcsec2 aperture.
-
